Hager in the world
The Hager cubyko double horizontal surface‑mount box offers a robust, weather‑resistant housing for switches or sockets. Empty with 4 sliders for flexible positioning, it delivers IP55 sealing and IK07 impact resistance. Grey RAL7011 matt thermoplastic, with cable entry and frame cover. 2 modules/2 units, 76×147×56 mm (65 mm built-in). Ideal for outdoor or damp areas within the cubyko system.
EAN
3250617174855
Packaging
5
Surface box Double vertical 2-module Polar white IP55 IK07 cubyko WNA685
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Rocker switch 23 products available -
Emergency stop complete 4 products available -
Push-switch button 25 products available -
Venetian blind switch/-push button 5 products available
Compatible products
-
Referenced by 38 products available
Complete your system
-
WNA040Dble change-over switch insert rocker 2g surf/flushmtd, isolated input W.1, gr LT
-
WNA040BDouble change-over switch insert rocker 2g surf/flush-m, isolated input W.1 wh LT
-
WNA002Illuminated change-over switch insert rocker surf./flush-mtd lens W.1, grey m. LT
-
WNA001BChange-over switch insert rocker surf.-mtd/flush-mtd, W.1, p.white matt plast LT
-
WNA008BOn/off switch insert 2p rocker+impr. 0 + 1 surf.-/flush-mtd, W.1, p.wh.m.plas. LT
-
WNA002BIlluminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNC041cubyko 2-gang 2-way switch wall mounted with light grey IP55
-
WNA003Control change-over switch insert, rocker surf.-/flush-mtd lens W.1 grey matt LT
-
WNA008On/off switch insert 2p rocker+imprint 0 und 1 surf.-/flush-mtd, W.1, grey m. LT
-
WNA041cubyko 2-gg 2WSW +light composable in grey
-
WNA006Change-over switch insert rocker surf.-/flushmtd, lab.field-illuminated, W.1, gr LT
-
WNC003Control change-over switch surface-mtd, lens, W.1, grey/light grey matt LT
-
WNA006B
cubyko 2W SW +label holder compos. white
-
WNA010Intermediate switch insert rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNC001cubyko 2-way switch wall mounted grey IP55
-
WNC001BChange-over switch surface-mtd, W.1, p. white, matt, plastic LT
-
WNA041Bcubyko 2-gg 2WSW +light composable in white
-
WNE001cubyko 2-way switch flush mounted grey IP55
-
WNA001cubyko 2-way switch composable grey IP55
-
WNE040Cubyko LT 2-gang 2-way switch flush mounted grey IP55
-
WNA023cubyko Push-button 1F with control light composable grey IP55
-
WNA0452-way push-button 1O/1F W.1 composable with light grey IP55
-
WNA020BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA023Bcubyko Push-button 1F with control light composable white IP55
-
WNC023cubyko Push-button 1F with control light wall mounted grey IP55
-
WNA045B2-way push-button 1O/1F W.1 composable with light white IP55
-
WNA044Push-button insert, 2 NO contacts rocker 2g surf./flushmtd comm. input , W1, grey
-
WNA044BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA022BPush-button insert, change-over contact rocker surf/flush-mtd, W.1, p.wh.m.plas. LT
-
WNC025Push-button, change-over contact surface-mtd, W.1, grey/light grey matt LT
-
WNA021BPush-button insert, change-over contact, illuminated surf.-/flushmtd, W.1, p.wh. LT
-
WNC020Push-button, NO contact surface-mtd, W.1, grey/light grey matt LT
-
WNA301BBlind push-b. insert rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA025
cubyko PB 1F w. FPL compos. grey
-
WNA025BPush-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, white matt LT
-
WNC021cubyko Push-button 1O/1F with light wall mounted grey IP55
-
WNE023Bcubyko Push-button 1F with control light flush mounted white IP55
-
WNA020cubyko Push-button 1F composable grey IP55
-
WNE023Cubyko LT push-button 1F with control light flush mounted grey IP55
-
WNC044Cubyko LT double push button NO/NF wall mounted grey IP55
-
WNA037B
cubyko Key switch 3 positions non stable composable white IP55
-
WNC035Key switch impr. surf.-mtd, isolated input , lock-differing lockings, W1
-
WNA300BBlind switch insert 1p rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA300Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf./flush-mtd, W.1, gre m LT
-
WNC036Key switch f.blinds impr. surf.-mtd, isolated input , lock-differing lockings, W.1
-
WNA105cubyko Socket 2P+E detrompage composable grey IP55
-
WNA160cubyko Schuko Socket composable grey IP55
-
WNC132cubyko Double vertical socket 2P+E screwless wall mounted grey IP55
-
WNC122Bcubyko Double horizontal socket 2P+E screwless wall mounted white IP55
-
WNE122Bcubyko Double horizontal socket 2P+E screwless flush mounted white IP55
-
WNE100cubyko Socket 2P+E screwless flush mounted grey IP55
-
WNE100Bcubyko Socket 2P+E screwless flush mounted white IP55
-
WNA160Bcubyko Schuko Socket composable white IP55
-
WNA100Bcubyko Socket 2P+E composable white IP55
-
WNC100cubyko Socket 2P+E screwless wall mounted grey IP55
-
WNE122cubyko Double horizontal socket 2P+E screwless flush mounted grey IP55
-
WNE132cubyko Double vertical socket 2P+E screwless flush mounted grey IP55
-
WNA100Soc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, gr
-
WNA104Bcubyko Socket 2P+E with label holder composable white IP55
-
WNA105Bsock.outl. insert w. earth.pin a. hing. cov. SM/flush-mounted, cont.prot., W.1
-
WNC160SCHUKO soc.out. hinged cover surf.-mtd, enhncd contact prot., W.1 ECO, grey matt
Referenced by
-
WNA033SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
-
WNA040
Dble change-over switch insert rocker 2g surf/flushmtd, isolated input W.1, gr LT
-
WNA006
Change-over switch insert rocker surf.-/flushmtd, lab.field-illuminated, W.1, gr LT
-
WNA038Insert plug-in opening Ø 22.5 mm, W.1, grey matt
-
WNA041
cubyko 2-gg 2WSW +light composable in grey
-
WNA008
On/off switch insert 2p rocker+imprint 0 und 1 surf.-/flush-mtd, W.1, grey m. LT
-
WNA032SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
-
WNA450Adapter for SYSTO devices, W.1, trans.
-
WNA003
Control change-over switch insert, rocker surf.-/flush-mtd lens W.1 grey matt LT
-
WNA044
Push-button insert, 2 NO contacts rocker 2g surf./flushmtd comm. input , W1, grey
-
WNA023
cubyko Push-button 1F with control light composable grey IP55
-
WNA037cubyko Key switch 3 positions non stable composable grey IP55
-
WNA002B
Illuminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNA601Insert of LED signal, red/green lighting surf.-mtd/flush-mtd, W.1, grey matt
-
WNA002
Illuminated change-over switch insert rocker surf./flush-mtd lens W.1, grey m. LT
-
WNA300
Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf./flush-mtd, W.1, gre m LT
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA045
2-way push-button 1O/1F W.1 composable with light grey IP55
-
WNA003BCubyko LT 2-way switch with control light composable white IP55
Technical properties
Capacity
-
Number of modules2
Materials
-
ColourGrey
-
RAL code7011
-
Surface finishMatt
-
MaterialThermoplastic
-
Contains recycled material (% of total plastic weight)0
-
TreatmentUntreated
Dimensions
-
Number of units2
-
Height76 mm
-
Width147 mm
-
Depth56 mm
-
Built-in depth65 mm
Equipment
-
With cable entryYes
Installation, mounting
-
Mounting-/Connection PositionHorizontal
-
Mounting onSurface mounting
Accessories
-
With frame coverYes
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK05
-
Usable in higher IP classIP55 with closed cover
-
Related Systemscubyko
-
Related Seriescubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

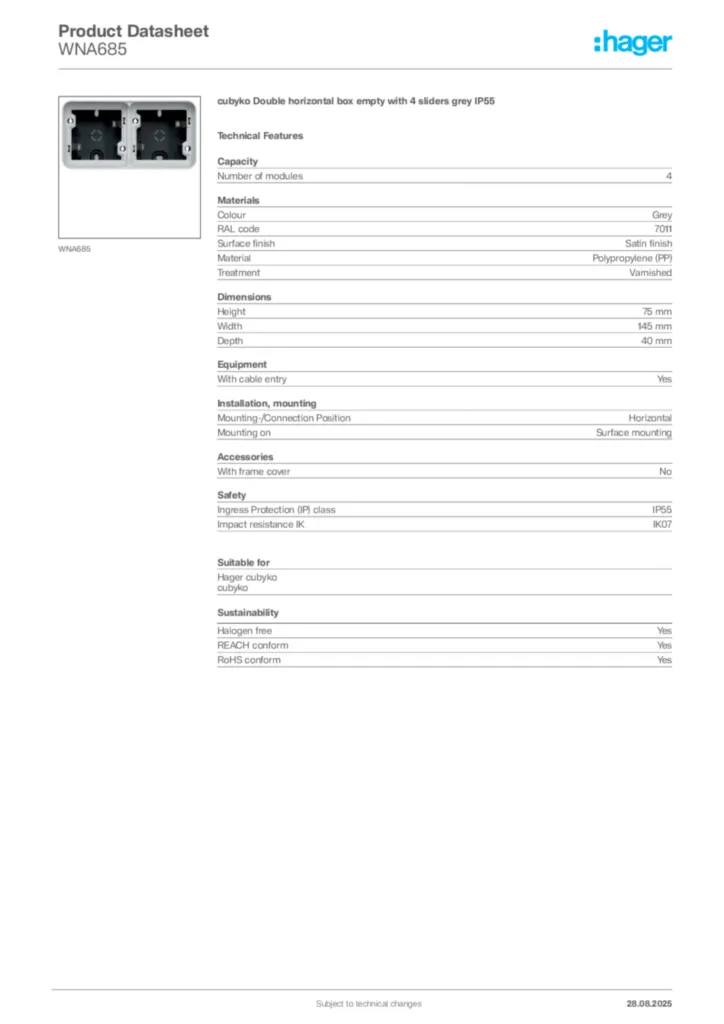

Product datasheet

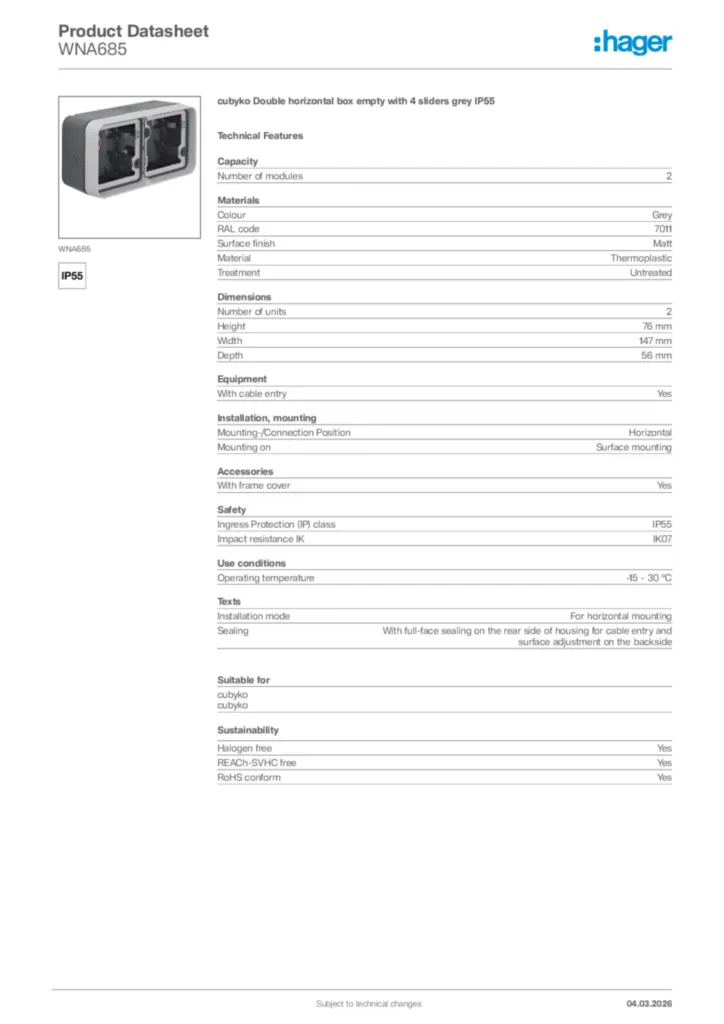

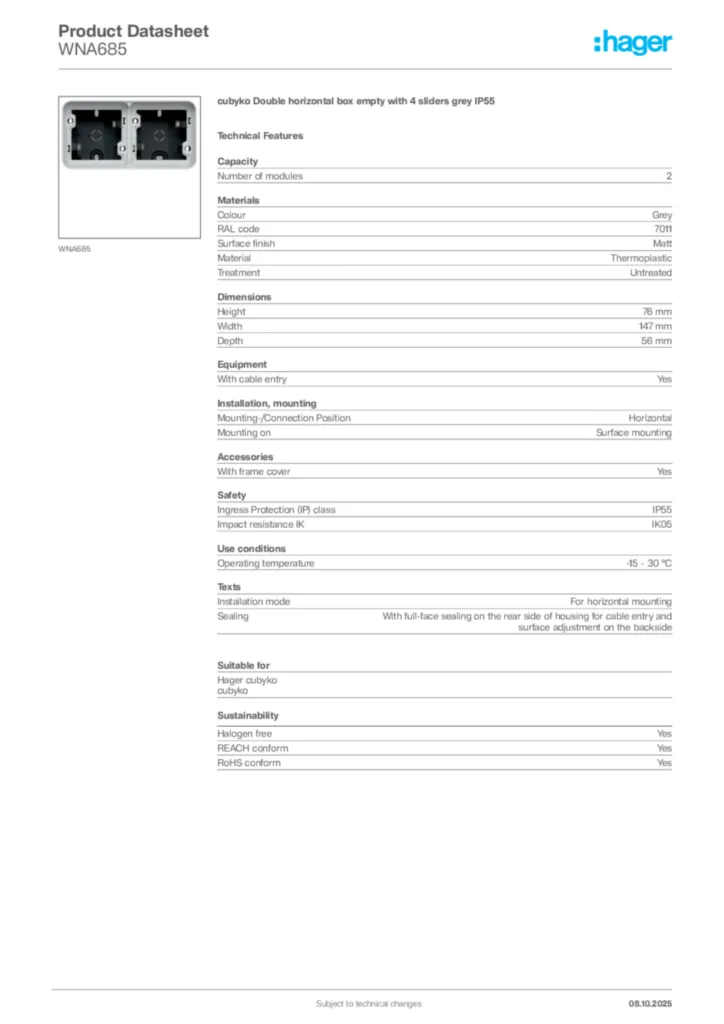

Hager Product data sheet WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
PDF -
Tools
Tools de-DE 2025-11-13
URL -
Declaration of conformity
Declaration of conformity International 2021-06-11
PDF106,47 kB
Declaration of conformity International 2022-01-10
PDF79,53 kB
Declaration of conformity en-GB 2025-12-05
PDF256,56 kB
Deklaracja zgodności UE
W.1 Adaptery natynkowe; WNA…
PDF300,31 kB
More documentation
