The Hager cubyko double horizontal 2P+E socket, flush-mounted in pure white RAL9010, delivers safe 16 A, 50-60 Hz power in damp or outdoor areas. IP55 and IK07 ensure weather and impact resistance, while self-closing hinged lids protect outlets. French NF standard with round earth pin. Plug-in terminals speed wiring; 4-module design fits 40 mm boxes for a neat, screwless look.

EAN

3250617173223

Packaging

1 Piece

cubyko - flush-mounted version

Triple horizontal socket 2P+E 16A IP55 IK07 hinged lid cubyko, flush mount WNE122B

Name: WNE122B
Brand: Hager
SKU: WNE122BX2

Also available in

Product colour - Pure white

Surface finish

Matt, Satin finish Satin finish

Technical properties
Environmental value
Documentations
More products

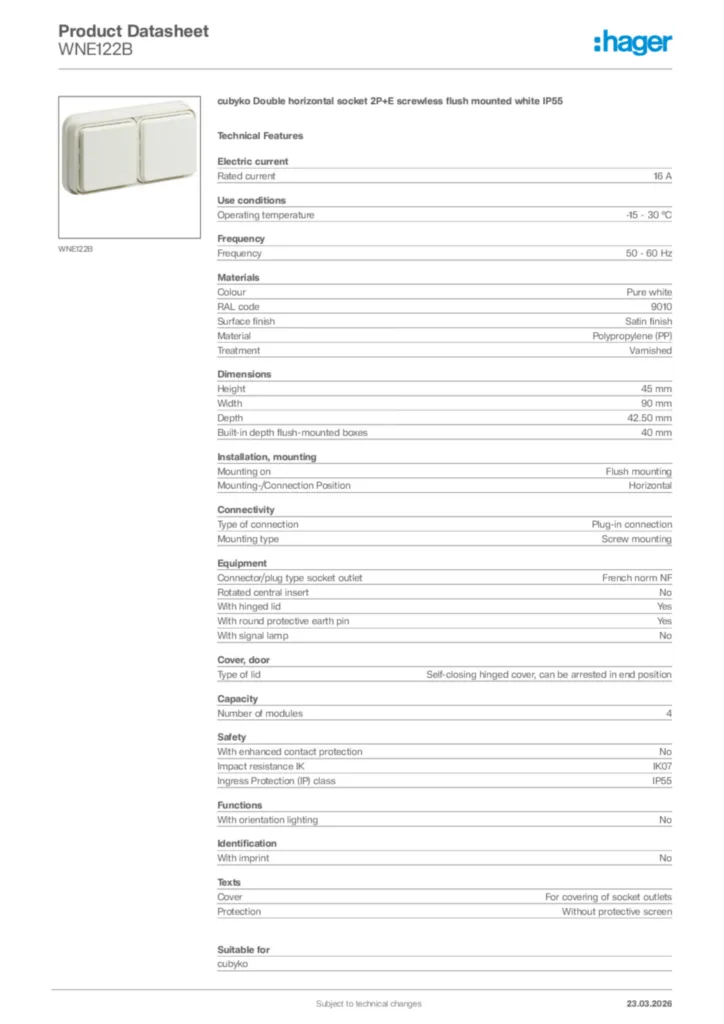

Download the data sheet

Technical properties

Rated current

16 A

Frequency

50 - 60 Hz

Colour

Pure white
RAL code

9010
Surface finish

Satin finish
Material

Polypropylene (PP)
Treatment

Varnished

Height

45 mm
Width

90 mm
Depth

42.50 mm
Built-in depth flush-mounted boxes

40 mm

Mounting on

Flush mounting
Mounting-/Connection Position

Horizontal

Type of connection

Plug-in connection
Mounting type

Screw mounting

Connector/plug type socket outlet

French norm NF
Rotated central insert

No
With hinged lid

Yes
With round protective earth pin

Yes
With signal lamp

No

Type of lid

Self-closing hinged cover, can be arrested in end position

Number of modules

4

With enhanced contact protection

No
Impact resistance IK

IK07
Ingress Protection (IP) class

IP55

With orientation lighting

No

With imprint

No

Related Systems

cubyko

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes
