    • WNE100B
    The Hager cubyko 2P+E screwless flush-mounted socket delivers safe power in outdoor or damp areas. Rated 16 A, 50-60 Hz, it offers IP55 weatherproofing, IK07 impact resistance, and a self-closing hinged lid to block dust and splashes. French NF with round earth pin. Pure white RAL9010 satin PC. Fast plug-in terminals, screw mounting for 40 mm boxes. Compact 75×75×22.8 mm, 2 modules.
    EAN
    3250617173001
    VPE
    1 piece
    • cubyko - flush-­mounted version

    Cubyko Socket Outlet 2P+E 16A IP55 Flush Grey Hinged Lid IK07 WNE100B

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    catalog.product_page.variants.title

    Product colour - White
    Grey
    Grey
    White
    White
    Surface finish
    Matt, Satin finish
    Matt, Satin finish
    Satin finish
    Satin finish

    Cubyko Socket Outlet 2P+E 16A IP55 Flush Grey Hinged Lid IK07

    WNE100B

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Elec­tric current
    • Rated current IN
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Colour
      White
    • RAL code
      9010
    • Surface finish
      Matt, Satin finish
    • Material
      Polycar­bonate (PC), Polypro­pylene (PP)
    Dimen­sions
    • Height
      75 mm
    • Width
      75 mm
    • Depth
      22.80 mm
    • Built-in depth flush-­mounted boxes
      40 mm
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Hori­zontal
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      Screw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      Earthing pin
    • Rotated central insert
      No
    • With hinged lid
      Yes
    • With round protective earth pin
      Yes
    • With signal lamp
      No
    Cover, door
    • Type of lid
      Self-closing hinged cover, can be arrested in end posi­tion
    Capa­city
    • Number of modules
      2
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP55
    Func­tions
    • With orient­a­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      cubyko

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration WNE100B
    PDF

    Downloads

    • Image WNE100B | Hager UK

      Product Image WNE100B

    • GeneratedProductDatasheet

      Image Hager Product data sheet WNE100B | Hager UK

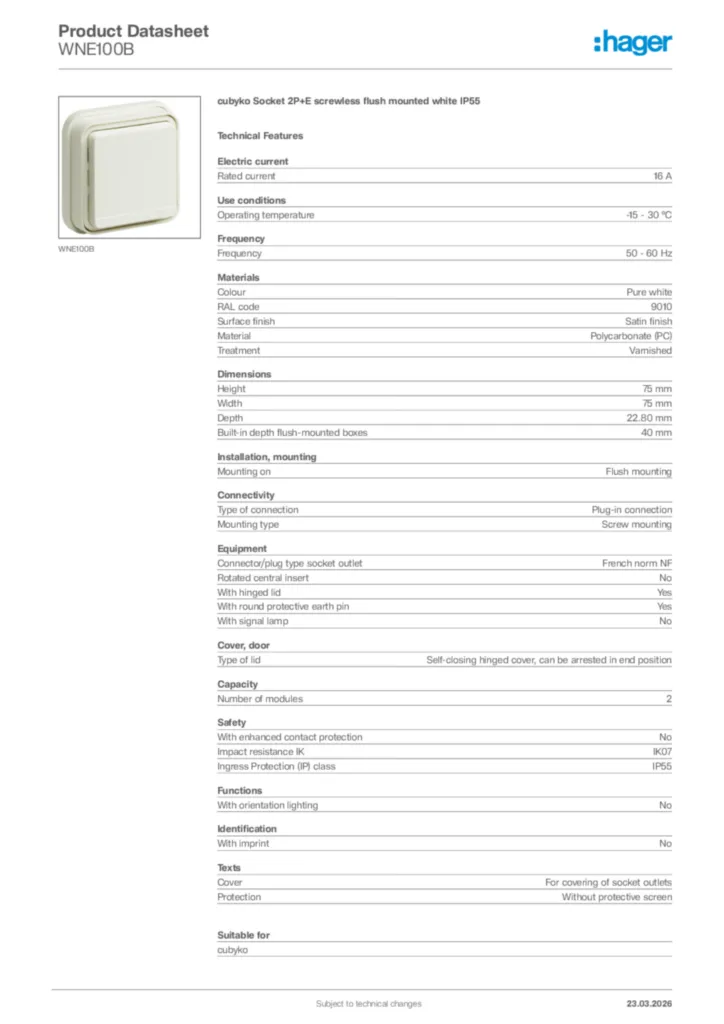

      Hager Product data sheet WNE100B
