    The Hager cubyko triple horizontal 2P+E flush-mounted socket delivers robust, outdoor-ready power. Rated 16 A at 50-60 Hz, it offers IP55 sealing and IK07 impact resistance, with self-closing hinged lids for reliable protection. French standard with round earth pin and screwless plug-in terminals for fast wiring. Grey RAL7011 matte PP, 6-module width—ideal for garages, terraces, and workshops.
    EAN
    3250617172240
    VPE
    3 pieces
    • cubyko - flush-­mounted version

    Double socket 2P+E 16A IP55 Grey Flush Horizontal Hinged lid Screwless cubyko WNE123

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    catalog.product_page.variants.title

    Product colour - Grey
    Grey
    Grey
    White
    White
    Surface finish
    Matt, Satin finish
    Matt, Satin finish
    Satin finish
    Satin finish

    Double socket 2P+E 16A IP55 Grey Flush Horizontal Hinged lid Screwless cubyko

    WNE123

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Elec­tric current
    • Rated current IN
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Colour
      Grey
    • RAL code
      7011
    • Surface finish
      Matt, Satin finish
    • Material
      Polypro­pylene (PP)
    Dimen­sions
    • Height
      45 mm
    • Width
      135 mm
    • Depth
      42.50 mm
    • Built-in depth flush-­mounted boxes
      40 mm
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Hori­zontal
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      Screw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      French norm NF
    • Rotated central insert
      No
    • With hinged lid
      Yes
    • With round protective earth pin
      Yes
    • With signal lamp
      No
    Cover, door
    • Type of lid
      Self-closing hinged cover, can be arrested in end posi­tion
    Capa­city
    • Number of modules
      6
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP55
    Func­tions
    • With orient­a­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      cubyko

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration WNE123
    PDF

    Downloads

    • Image WNE123 | Hager UK

      Product Image WNE123

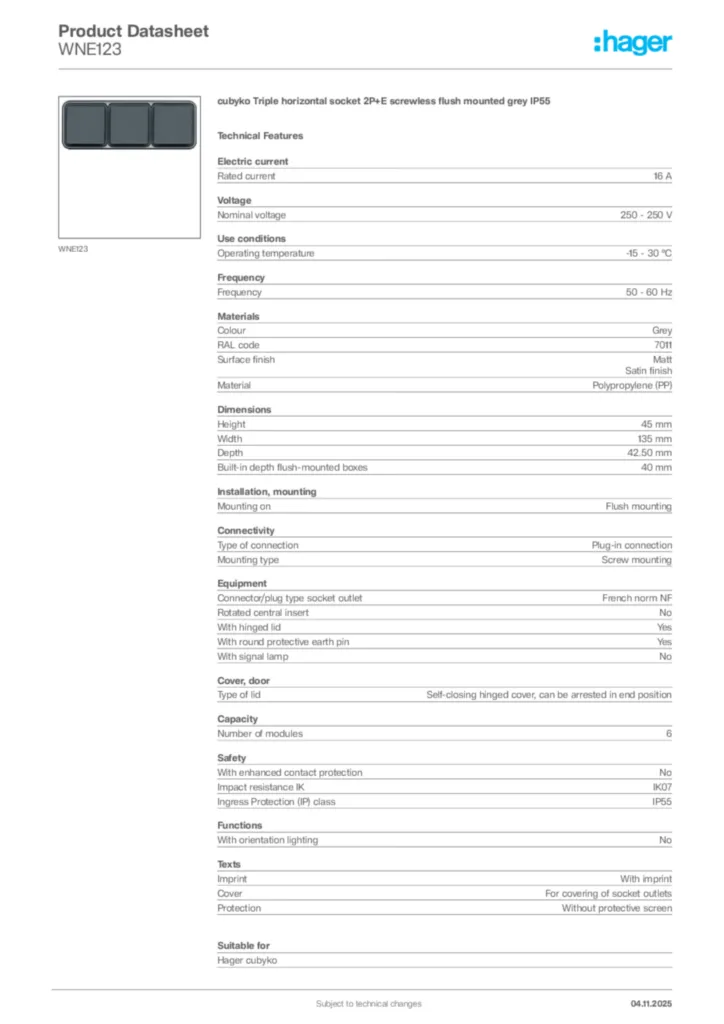

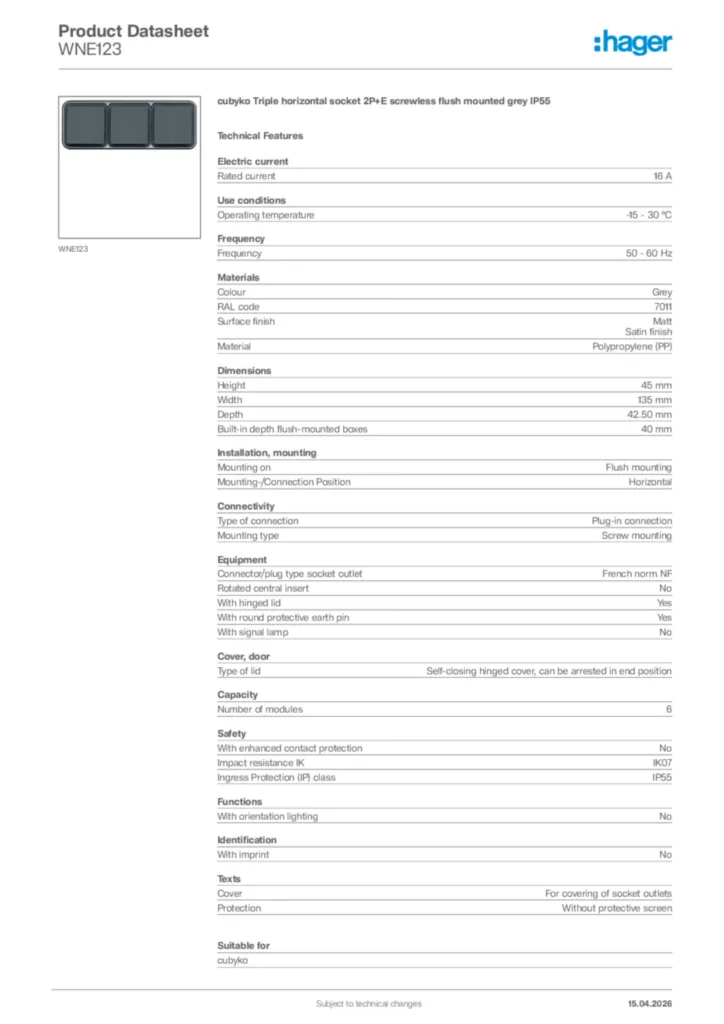

    • GeneratedProductDatasheet

      Image Hager Product data sheet WNE123 | Hager UK

      Hager Product data sheet WNE123

      cubyko Triple horizontal socket 2P+E screwless flush mounted grey IP55

      PDF

    • ProductECDeclaration

      Image Declaration of conformity International 2021-07-14 | Hager UK

      Declaration of conformity International 2021-07-14

      PDF
      111,30 kB
      Image Declaration of conformity en-GB 2026-07-29 | Hager UK

      Declaration of conformity en-GB 2026-07-29

      PDF
      130,16 kB
