Soc.out. insert earth.pin+hinged cover surf./flushmtd,enhncd contact prot.,W1,gr WNA100
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
catalog.product_page.variants.title
Product colour - Grey
Grey
White
product.page.accessories.title
product.page.accessories.associated-products
-
Surface-mounted housing for flush-mounted switching device 5 product.page.accessories.products-available -
Cover frame for domestic switching devices 4 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 24 product.page.accessories.products-available
product.page.accessories.title-modal
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA403
Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA408Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
product.page.accessories.referenced_by.title
-
WNA683
Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA408
Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
WNA403
Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA402
Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA402BFrame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w
-
WNA401BFrame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA691BCable + tube entry, W.1, p. white, matt, plastic
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA690BCable entry for 2 cables, W.1, p. white, matt, plastic
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA682BSurface-mounted lower casing 2gang horizontal, w. frame and cable entries W.1 pw
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
Technical characteristics
Voltage
-
Rated voltage250 V
Electric current
-
Rated current IN16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL codeSimilar to RAL 7011
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
Contains recycled material (% of total plastic weight)0
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth22.80 mm
-
Number of units1
-
Built-in depth flush-mounted boxes0
-
Built-in depth22 mm
Connection
-
Connector/plug typeTurn screw lock
-
Cross-section flexible conductor without wire end sleeve1.0 - 2.5 mm²
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
-
Mounting-/Connection PositionHorizontal
Connectivity
-
Type of connectionPlug-in connection
-
With claw mountingNo
-
Mounting typeScrew mounting
Equipment
-
Connector/plug type socket outletEarthing pin
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinYes
-
With signal lampNo
-
With lockNo
Accessories
-
Has labelling fieldNo
-
Pre-equipped withSocket outlet
Cover, door
-
Type of lidSelf-closing hinged cover, can be arrested in end position
Capacity
-
Number of modules1
Safety
-
With enhanced contact protectionYes
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP55
-
Usable in higher IP classIP55 with closed cover
Functions
-
With orientation lightingNo
-
With function lightingNo
Identification
-
With imprintNo
-
Related Systemscubyko
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

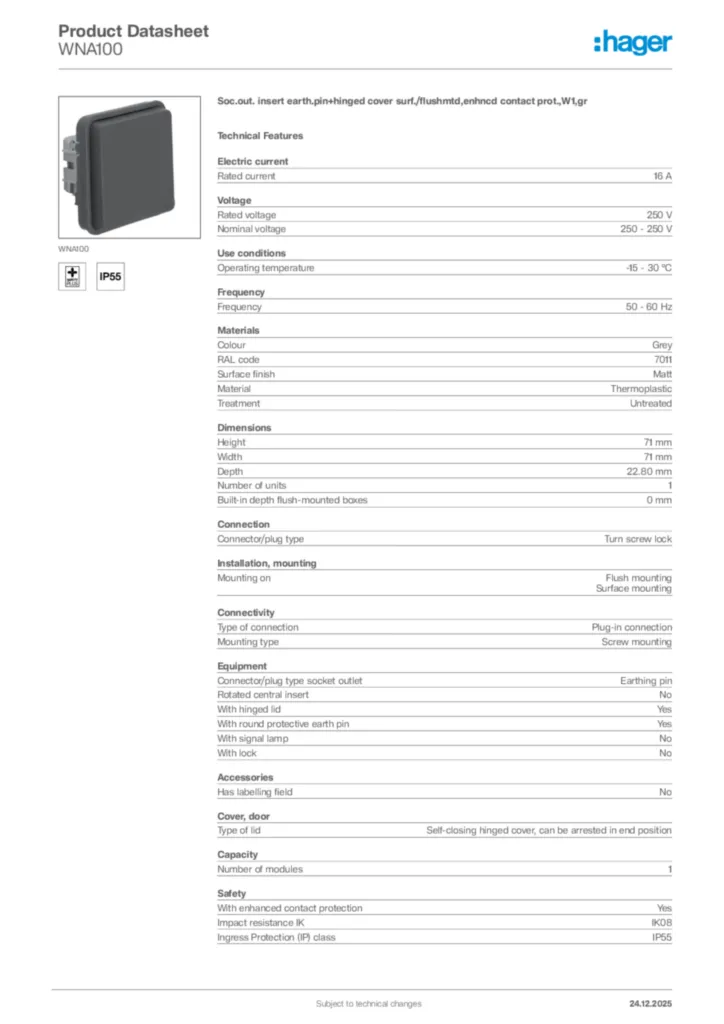

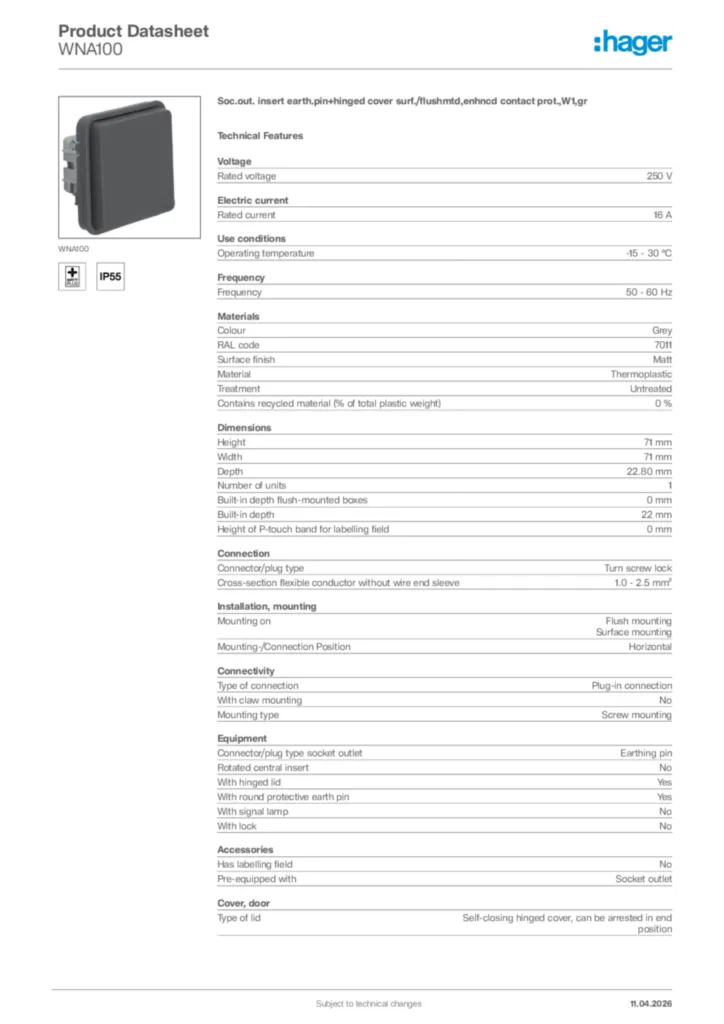

Hager Product data sheet WNA100
