The Hager cubyko Triple horizontal flush adapter in grey (RAL7035) provides a neat 3-gang solution for flush-mounted installations. Made of matt thermoplastic, it offers IK05 impact resistance and achieves IP55 protection with the closed cover—ideal for damp or dusty areas. Designed for horizontal layouts, it neatly hosts switches or sockets in residential or commercial settings.
EAN
3250617174435
VPE
1 piece
cubyko 2-gang vertical flush adapter Polar white IP55 (with cover) IK05 WNA403
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
configurator.modal.title
configurator.modal.description
Tools de-DE 2025-11-13
configurator.modal.linkproduct.page.accessories.title
product.page.accessories.associated-products
-
Transition adapter for domestic switching devices 1 product.page.accessories.products-available -
Rocker switch 22 product.page.accessories.products-available -
Key switch 3 product.page.accessories.products-available -
Emergency stop complete 4 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 31 product.page.accessories.products-available
product.page.accessories.title-modal
-
WNC001cubyko 2-way switch wall mounted grey IP55
-
WNA040BDouble change-over switch insert rocker 2g surf/flush-m, isolated input W.1 wh LT
-
WNA008BOn/off switch insert 2p rocker+impr. 0 + 1 surf.-/flush-mtd, W.1, p.wh.m.plas. LT
-
WNA002BIlluminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNC041cubyko 2-gang 2-way switch wall mounted with light grey IP55
-
WNA008On/off switch insert 2p rocker+imprint 0 und 1 surf.-/flush-mtd, W.1, grey m. LT
-
WNA041cubyko 2-gg 2WSW +light composable in grey
-
WNA006Change-over switch insert rocker surf.-/flushmtd, lab.field-illuminated, W.1, gr LT
-
WNA006BChange-over switch insert rocker surf/flushmtd, lab.field-illuminated, W.1, p.wh LT
-
WNA040Dble change-over switch insert rocker 2g surf/flushmtd, isolated input W.1, gr LT
-
WNA010Intermediate switch insert rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNA003
cubyko 2-way with control light composable grey IP55
-
WNC001BChange-over switch surface-mtd, W.1, p. white, matt, plastic LT
-
WNA001Bcubyko 2-way switch composable white IP55
-
WNE040Bcubyko 2-gang 2-way switch flush mounted white IP55
-
WNC003cubyko 2-way switch with control light with neutral wall mounted grey IP55
-
WNA002cubyko 2-way switch illuminated composable grey IP55
-
WNE040Cubyko LT 2-gang 2-way switch flush mounted grey IP55
-
WNE001Cubyko LT 2-way switch flush mounted grey IP55
-
WNE001BCubyko LT 2-way switch flush mounted white IP55
-
WNA037Bcubyko Key switch 3 positions non stable composable white IP55
-
WNA301BBlind push-b. insert rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNC035Key switch impr. surf.-mtd, isolated input , lock-differing lockings, W1
-
WNA300BBlind switch insert 1p rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA301Blind push-b. insert rocker 2g+imprinted symb.arrow surf.-flush-mt W.1 grey m LT
-
WNA300Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf./flush-mtd, W.1, gre m LT
-
WNC036Key switch f.blinds impr. surf.-mtd, isolated input , lock-differing lockings, W.1
-
WNA021BPush-button insert, change-over contact, illuminated surf.-/flushmtd, W.1, p.wh. LT
-
WNA0452-way push-button 1O/1F W.1 composable with light grey IP55
-
WNA020BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA023Bcubyko Push-button 1F with control light composable white IP55
-
WNC023cubyko Push-button 1F with control light wall mounted grey IP55
-
WNA020Push-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNA045B2-way push-button 1O/1F W.1 composable with light white IP55
-
WNA044Push-button insert, 2 NO contacts rocker 2g surf./flushmtd comm. input , W1, grey
-
WNA044BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA022BPush-button insert, change-over contact rocker surf/flush-mtd, W.1, p.wh.m.plas. LT
-
WNC025Push-button, change-over contact surface-mtd, W.1, grey/light grey matt LT
-
WNA021cubyko Push-button 1O/1F illuminated composable grey IP55
-
WNC020Push-button, NO contact surface-mtd, W.1, grey/light grey matt LT
-
WNA023cubyko Push-button 1F with control light composable grey IP55
-
WNA025BPush-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, white matt LT
-
WNC021cubyko Push-button 1O/1F with light wall mounted grey IP55
-
WNE023Bcubyko Push-button 1F with control light flush mounted white IP55
-
WNE023Cubyko LT push-button 1F with control light flush mounted grey IP55
-
WNC044Cubyko LT double push button NO/NF wall mounted grey IP55
-
WNA022Cubyko LT push-button 1O/1F composable grey IP55
-
WNA160cubyko Schuko Socket composable grey IP55
-
WNE100Bcubyko Socket 2P+E screwless flush mounted white IP55
-
WNE100cubyko Socket 2P+E screwless flush mounted grey IP55
-
WNA105sock.outl. insert w. earth.pin a. hing. cov. SM/flush-mounted, cont.prot., W.1
-
WNA100Soc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, gr
-
WNA104Bcubyko Socket 2P+E with label holder composable white IP55
-
WNC100cubyko Socket 2P+E screwless wall mounted grey IP55
-
WNA100BSoc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, wh
-
WNA105Bsock.outl. insert w. earth.pin a. hing. cov. SM/flush-mounted, cont.prot., W.1
-
WNA160BSCHUKO soc.out. insert hinged cover surf.-/flushmtd, enhncd contact prot., W.1, wh.
-
WNC160SCHUKO soc.out. hinged cover surf.-mtd, enhncd contact prot., W.1 ECO, grey matt
product.page.accessories.referenced_by.title
-
WNA006
Change-over switch insert rocker surf.-/flushmtd, lab.field-illuminated, W.1, gr LT
-
WNA045
2-way push-button 1O/1F W.1 composable with light grey IP55
-
WNA035cubyko Key switch 2 positions composable grey IP55
-
WNA300
Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf./flush-mtd, W.1, gre m LT
-
WNA020
Push-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNA601Insert of LED signal, red/green lighting surf.-mtd/flush-mtd, W.1, grey matt
-
WNA002B
Illuminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNA037cubyko Key switch 3 positions non stable composable grey IP55
-
WNA033SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
-
WNA301
Blind push-b. insert rocker 2g+imprinted symb.arrow surf.-flush-mt W.1 grey m LT
-
WNA044
Push-button insert, 2 NO contacts rocker 2g surf./flushmtd comm. input , W1, grey
-
WNA450
Adapter for SYSTO devices, W.1, trans.
-
WNA032SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
-
WNA008
On/off switch insert 2p rocker+imprint 0 und 1 surf.-/flush-mtd, W.1, grey m. LT
-
WNA041
cubyko 2-gg 2WSW +light composable in grey
-
WNA038Insert plug-in opening Ø 22.5 mm, W.1, grey matt
-
WNA036
cubyko Key switch 3 positions composable grey IP55
-
WNA006B
Change-over switch insert rocker surf/flushmtd, lab.field-illuminated, W.1, p.wh LT
-
WNA602Insert of LED signal light, blue lighting surface-mtd/flush-mtd, W.1, grey matt
-
WNA040
Dble change-over switch insert rocker 2g surf/flushmtd, isolated input W.1, gr LT
Technical characteristics
Capacity
-
Number of gangs3
Materials
-
ColourGrey
-
RAL codeSimilar to RAL 7035
-
Surface finishMatt
-
MaterialThermoplastic
-
Contains recycled material (% of total plastic weight)0
-
TreatmentUntreated
Dimensions
-
Height224 mm
-
Width83 mm
-
Depth38 mm
Accessories
-
Has labelling fieldNo
Installation, mounting
-
Mounting onFlush mounting
-
Mounting-/Connection PositionHorizontal
Safety
-
Ingress Protection (IP) classIP20
-
Usable in higher IP classIP55 with closed cover
-
Impact resistance IKIK07
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

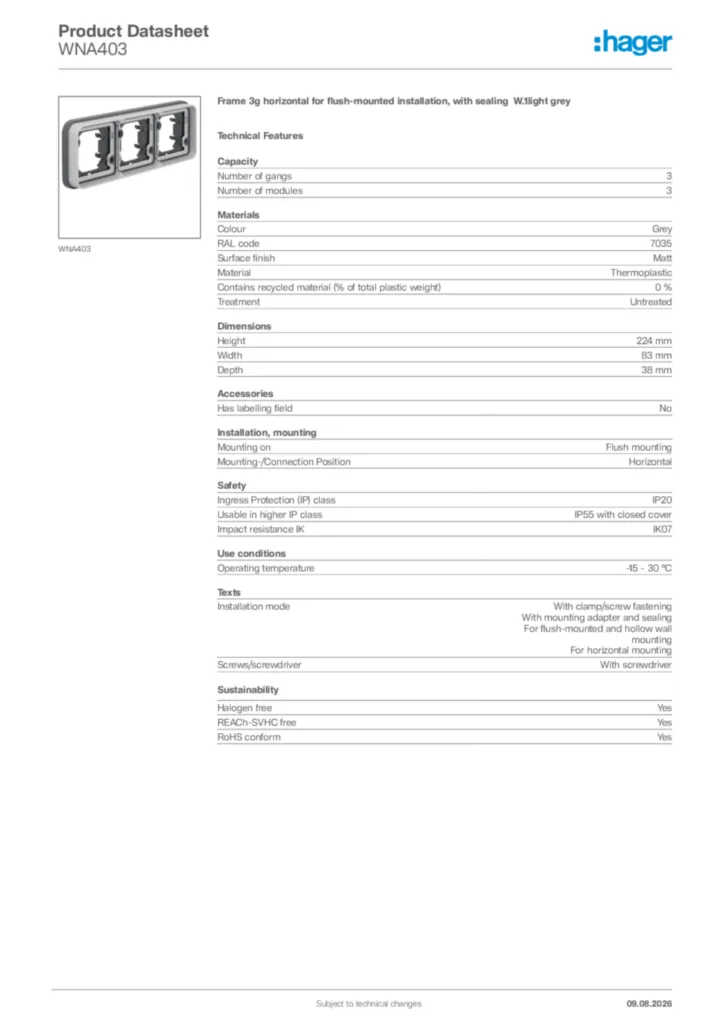

Hager Product data sheet WNA403
