Key switch impr. surf.-mtd,isolated input ,lock-differing lockings,W1 WNC035
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 21 products available
Referenced by
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA685B
cubyko Double horizontal box empty with 4 sliders white IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
Technical properties
Materials
-
ColourGrey
-
RAL code7011
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Controls and indicators
-
Venetian blind switch type2-pole switch
Voltage
-
Rated voltage240 V
Electric current
-
Switching current10 A
-
Switching current10 A
Safety
-
Ingress Protection (IP) classIP55
Use conditions
-
Operating temperature-15 - 30 °C
Texts
-
Type of connectionWith screw terminals
-
Installation modeFor screw fastening
Connection
-
Connector/plug typeScrew terminal
-
Related Seriescubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

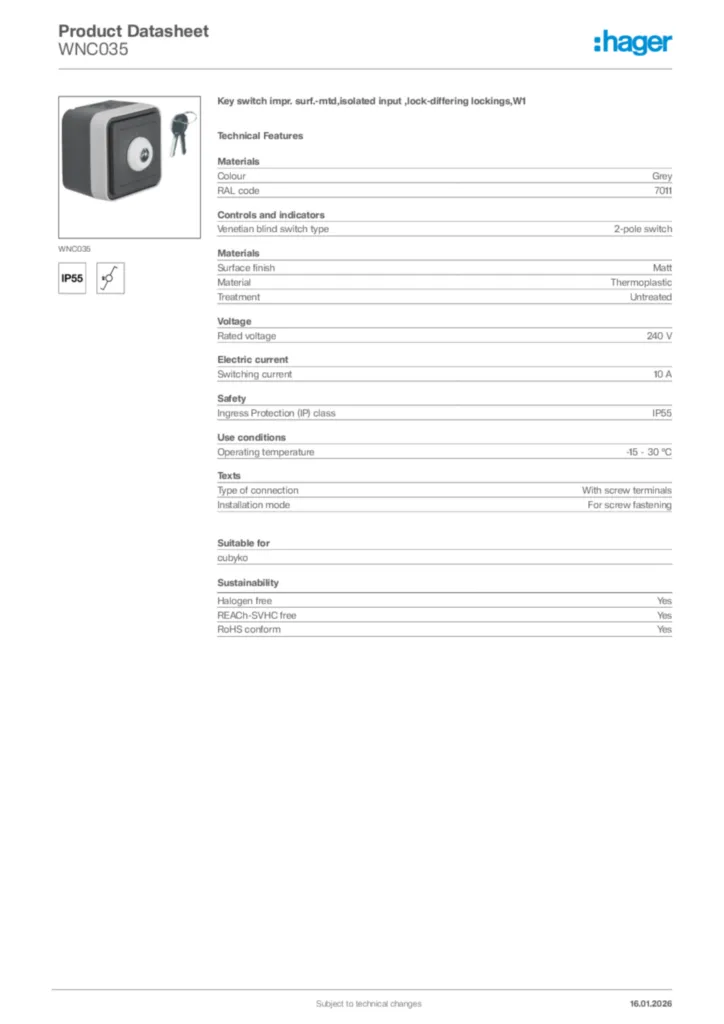

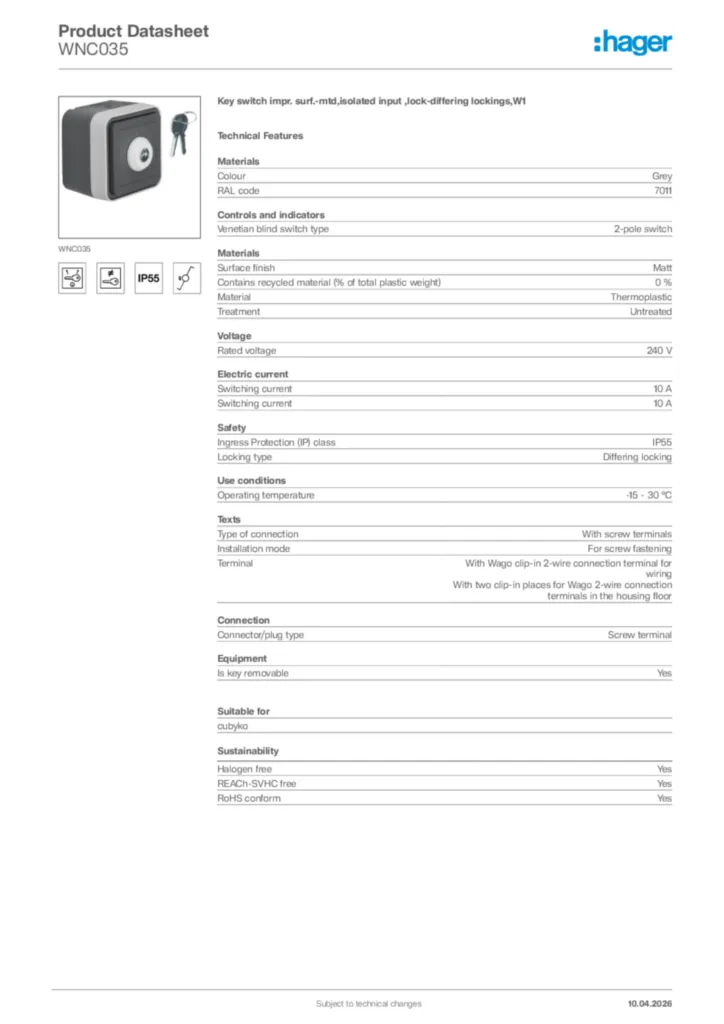

Product datasheet
Hager Product data sheet WNC035
Key switch impr. surf.-mtd,isolated input ,lock-differing lockings,W1
PDF -
Tools
Tools de-DE 2024-10-02
URL
Tools de-DE 2025-11-13
URL -
Declaration of conformity
Declaration of conformity International 2021-09-10
PDF115,60 kB
Declaration of conformity en-GB 2025-12-05
PDF253,40 kB
