Hager in the world
The Hager cubyko double vertical flush adapter in polar white (RAL9010) enables neat, two-gang flush mounting for the cubyko range. Made of durable thermoplastic, it offers IK05 impact resistance and achieves IP55 protection with a closed cover (IP20 open), making it suitable for damp or dusty areas. Compact design (87 x 293.5 x 9.9 mm) ensures a clean, space-efficient finish.
EAN
3250617175487
VPE
5 pieces
cubyko flush adapter 1-gang polar white RAL9010 IP55 with closed cover WNA408B
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Venetian blind switch/-push button 7 product.page.accessories.products-available -
Rocker switch 22 product.page.accessories.products-available -
Key switch 3 product.page.accessories.products-available -
Emergency stop complete 4 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 22 product.page.accessories.products-available
product.page.accessories.title-modal
-
WNA037B
cubyko Key switch 3 positions non stable composable white IP55
-
WNA301BBlind push-b. insert rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNC035Key switch impr. surf.-mtd, isolated input , lock-differing lockings, W1
-
WNA300BBlind switch insert 1p rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA301Blind push-b. insert rocker 2g+imprinted symb.arrow surf.-flush-mt W.1 grey m LT
-
WNA300Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf./flush-mtd, W.1, gre m LT
-
WNC036Key switch f.blinds impr. surf.-mtd, isolated input , lock-differing lockings, W.1
-
WNC001cubyko 2-way switch wall mounted grey IP55
-
WNA040BDouble change-over switch insert rocker 2g surf/flush-m, isolated input W.1 wh LT
-
WNA008BOn/off switch insert 2p rocker+impr. 0 + 1 surf.-/flush-mtd, W.1, p.wh.m.plas. LT
-
WNA002BIlluminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNC041cubyko 2-gang 2-way switch wall mounted with light grey IP55
-
WNA008On/off switch insert 2p rocker+imprint 0 und 1 surf.-/flush-mtd, W.1, grey m. LT
-
WNA041cubyko 2-gg 2WSW +light composable in grey
-
WNA006Change-over switch insert rocker surf.-/flushmtd, lab.field-illuminated, W.1, gr LT
-
WNA006BChange-over switch insert rocker surf/flushmtd, lab.field-illuminated, W.1, p.wh LT
-
WNA040Dble change-over switch insert rocker 2g surf/flushmtd, isolated input W.1, gr LT
-
WNA010Intermediate switch insert rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNA003
cubyko 2-way with control light composable grey IP55
-
WNC001BChange-over switch surface-mtd, W.1, p. white, matt, plastic LT
-
WNA001Bcubyko 2-way switch composable white IP55
-
WNE040Bcubyko 2-gang 2-way switch flush mounted white IP55
-
WNC003cubyko 2-way switch with control light with neutral wall mounted grey IP55
-
WNA002cubyko 2-way switch illuminated composable grey IP55
-
WNE040Cubyko LT 2-gang 2-way switch flush mounted grey IP55
-
WNE001Cubyko LT 2-way switch flush mounted grey IP55
-
WNE001BCubyko LT 2-way switch flush mounted white IP55
-
WNA021BPush-button insert, change-over contact, illuminated surf.-/flushmtd, W.1, p.wh. LT
-
WNA0452-way push-button 1O/1F W.1 composable with light grey IP55
-
WNA020BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA023Bcubyko Push-button 1F with control light composable white IP55
-
WNC023cubyko Push-button 1F with control light wall mounted grey IP55
-
WNA020Push-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNA045B2-way push-button 1O/1F W.1 composable with light white IP55
-
WNA044Push-button insert, 2 NO contacts rocker 2g surf./flushmtd comm. input , W1, grey
-
WNA044BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA025Push-button insert, 2NO contacts rocker 2g surf/flushmtd comm input term, W1, gr LT
-
WNA022BPush-button insert, change-over contact rocker surf/flush-mtd, W.1, p.wh.m.plas. LT
-
WNC025Push-button, change-over contact surface-mtd, W.1, grey/light grey matt LT
-
WNA021cubyko Push-button 1O/1F illuminated composable grey IP55
-
WNC020Push-button, NO contact surface-mtd, W.1, grey/light grey matt LT
-
WNA023cubyko Push-button 1F with control light composable grey IP55
-
WNA025BPush-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, white matt LT
-
WNC021cubyko Push-button 1O/1F with light wall mounted grey IP55
-
WNE023Bcubyko Push-button 1F with control light flush mounted white IP55
-
WNE023Cubyko LT push-button 1F with control light flush mounted grey IP55
-
WNC044Cubyko LT double push button NO/NF wall mounted grey IP55
-
WNE132Bcubyko Double vertical socket 2P+E screwless flush mounted white IP55
-
WNA160cubyko Schuko Socket composable grey IP55
-
WNC132cubyko Double vertical socket 2P+E screwless wall mounted grey IP55
-
WNE100Bcubyko Socket 2P+E screwless flush mounted white IP55
-
WNE100cubyko Socket 2P+E screwless flush mounted grey IP55
-
WNE132cubyko Double vertical socket 2P+E screwless flush mounted grey IP55
-
WNA105sock.outl. insert w. earth.pin a. hing. cov. SM/flush-mounted, cont.prot., W.1
-
WNA100Soc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, gr
-
WNA104Bcubyko Socket 2P+E with label holder composable white IP55
-
WNC100cubyko Socket 2P+E screwless wall mounted grey IP55
-
WNA100BSoc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, wh
-
WNA105Bsock.outl. insert w. earth.pin a. hing. cov. SM/flush-mounted, cont.prot., W.1
-
WNA160BSCHUKO soc.out. insert hinged cover surf.-/flushmtd, enhncd contact prot., W.1, wh.
-
WNC160SCHUKO soc.out. hinged cover surf.-mtd, enhncd contact prot., W.1 ECO, grey matt
product.page.accessories.referenced_by.title
-
WNA044B
Push-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA160B
SCHUKO soc.out. insert hinged cover surf.-/flushmtd, enhncd contact prot., W.1, wh.
-
WNA105B
sock.outl. insert w. earth.pin a. hing. cov. SM/flush-mounted, cont.prot., W.1
-
WNA020B
Push-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA023B
cubyko Push-button 1F with control light composable white IP55
-
WNA040B
Double change-over switch insert rocker 2g surf/flush-m, isolated input W.1 wh LT
-
WNA100B
Soc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, wh
-
WNA045B
2-way push-button 1O/1F W.1 composable with light white IP55
-
WNA008B
On/off switch insert 2p rocker+impr. 0 + 1 surf.-/flush-mtd, W.1, p.wh.m.plas. LT
-
WNA002B
Illuminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNA033SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
-
WNA037B
cubyko Key switch 3 positions non stable composable white IP55
-
WNA022B
Push-button insert, change-over contact rocker surf/flush-mtd, W.1, p.wh.m.plas. LT
-
WNA300B
Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA021B
Push-button insert, change-over contact, illuminated surf.-/flushmtd, W.1, p.wh. LT
-
WNA006B
Change-over switch insert rocker surf/flushmtd, lab.field-illuminated, W.1, p.wh LT
-
WNA301B
Blind push-b. insert rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA104B
cubyko Socket 2P+E with label holder composable white IP55
-
WNA025B
Push-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, white matt LT
-
WNA001B
cubyko 2-way switch composable white IP55

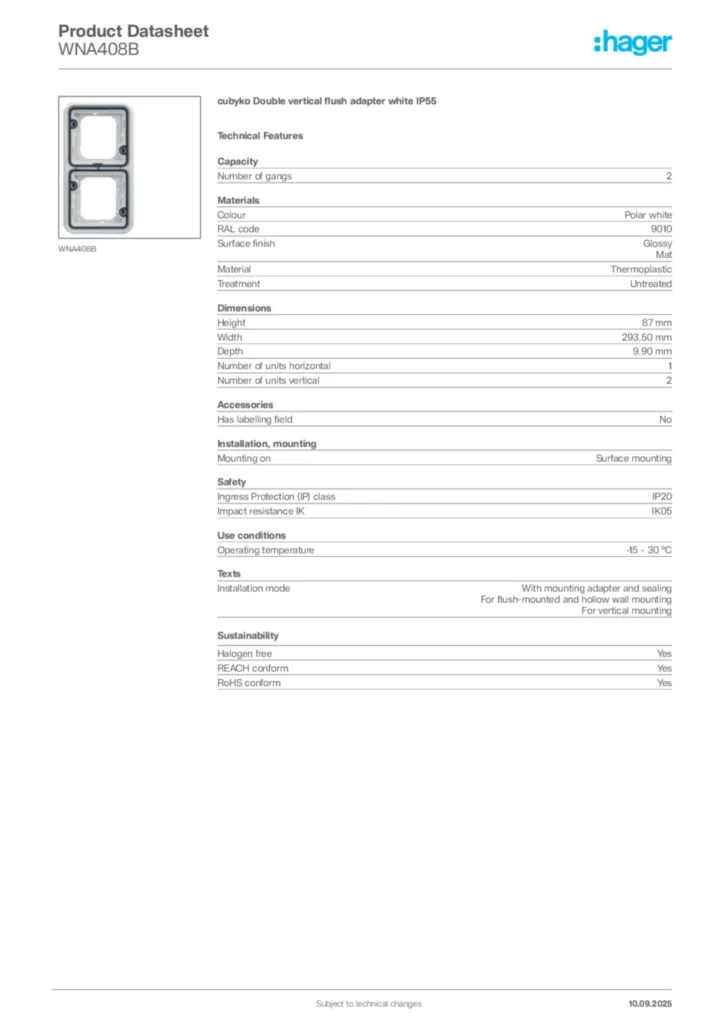

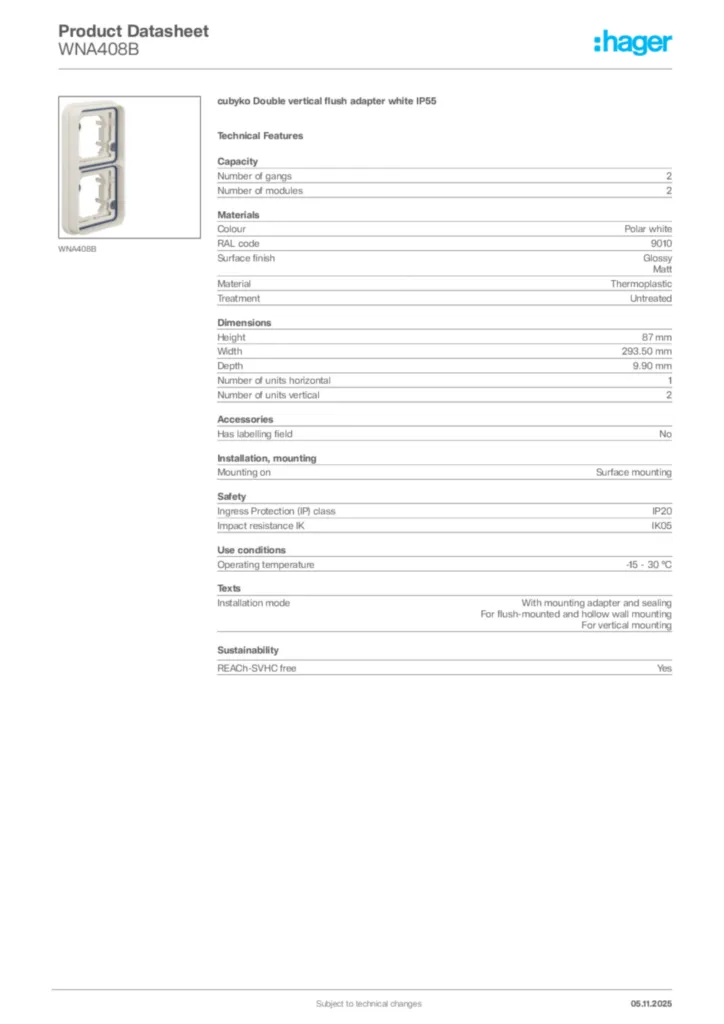

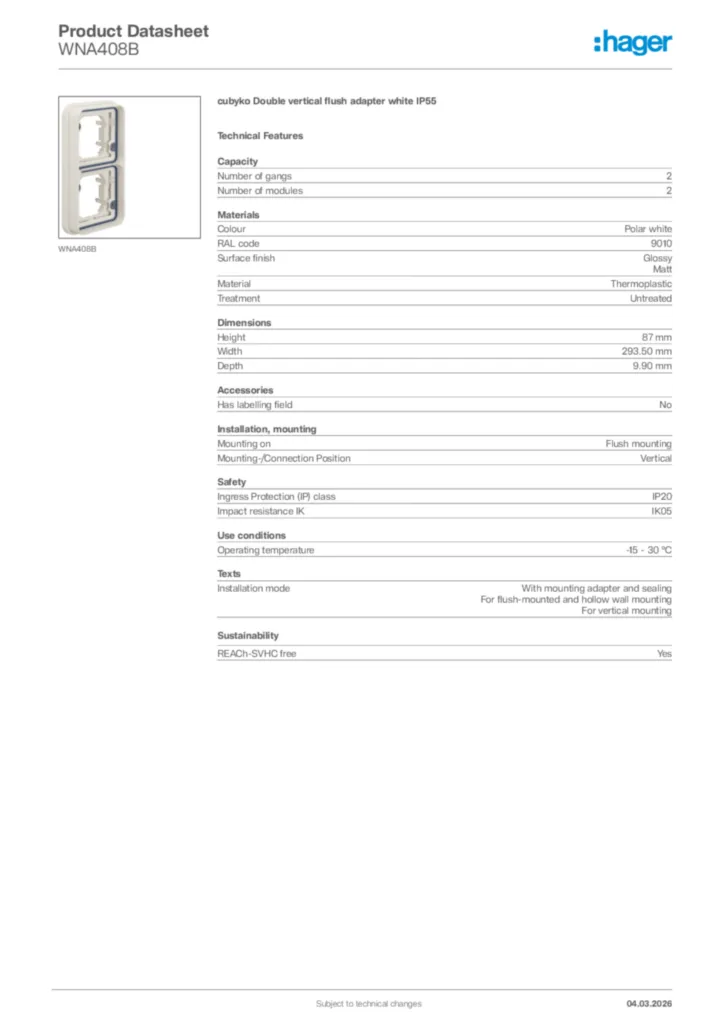

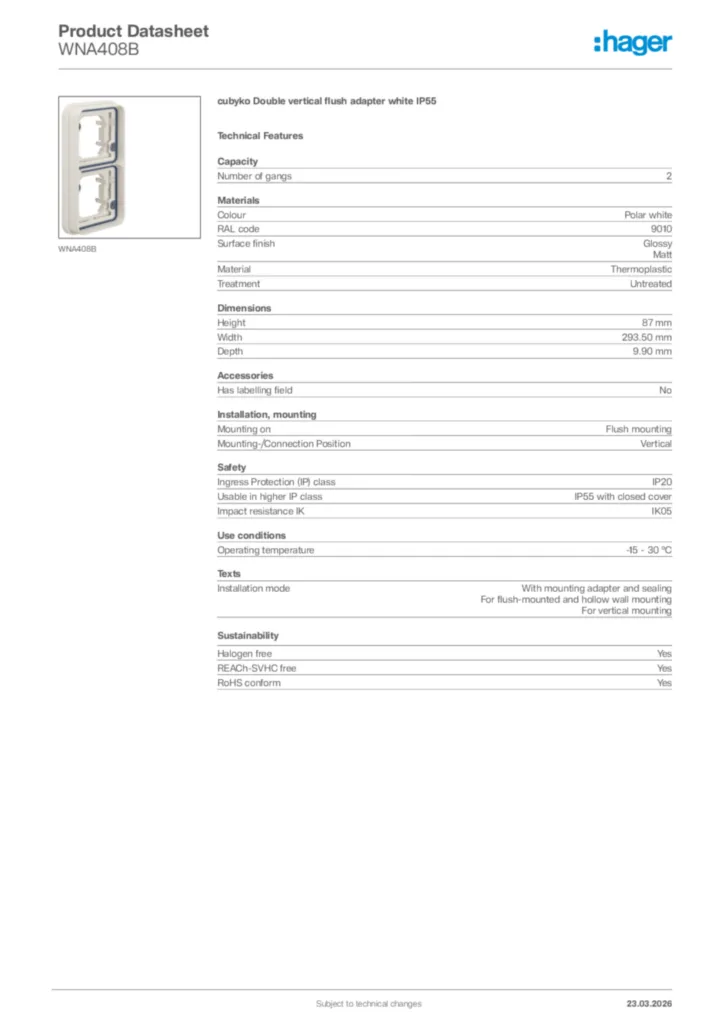

Technical characteristics
Capacity
-
Number of gangs2
Materials
-
ColourWhite
-
RAL codeSimilar to RAL 9010
-
Surface finishMatt
-
MaterialThermoplastic
-
Contains recycled material (% of total plastic weight)0
-
TreatmentUntreated
Dimensions
-
Height87 mm
-
Width293.50 mm
-
Depth9.90 mm
Accessories
-
Has labelling fieldNo
Installation, mounting
-
Mounting onFlush mounting
-
Mounting-/Connection PositionVertical
Safety
-
Ingress Protection (IP) classIP20
-
Usable in higher IP classIP55 with closed cover
-
Impact resistance IKIK07
