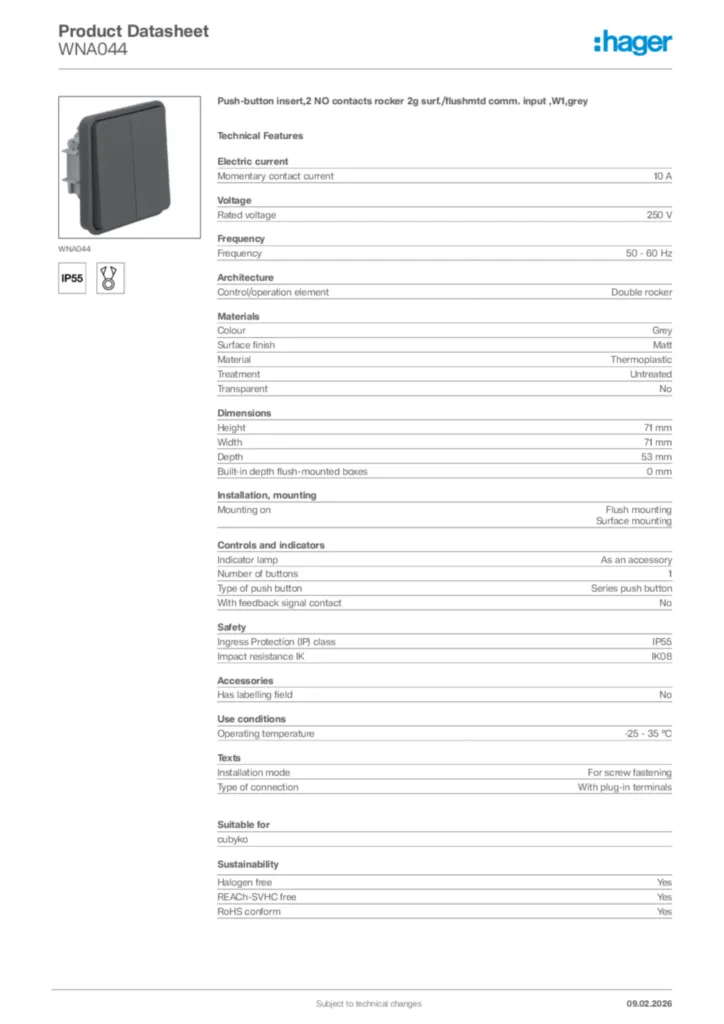

Push-button insert,2 NO contacts rocker 2g surf./flushmtd comm. input ,W1,grey WNA044
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (8)
Compatible products
-
Referenced by 25 products available
Accessories mandatory
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
Referenced by
-
WNA691cubyko Slider for tube and cable grey IP55
-
WNA683
Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA683
cubyko Triple horizontal box empty grey IP55
-
WNA682
cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA690Bcubyko Slider for 2 cables white IP55
-
WNA691Bcubyko Slider for tube and cable white IP55
-
WNA401
cubyko Single flush adapter composable grey IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA402
cubyko Double horizontal flush adapter grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA690cubyko Slider for 2 cables grey IP55
-
WNA408
cubyko Double vertical flush adapter grey IP55
Technical properties
Electric current
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementDouble rocker
Materials
-
ColourGrey
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth53 mm
-
Built-in depth flush-mounted boxes0
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Indicator lampAs an accessory
-
Number of buttons1
-
Type of push buttonSeries push button
-
With feedback signal contactNo
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK08
Accessories
-
Has labelling fieldNo
-
Related Systemscubyko
