Push-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT WNA020B
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
configurator.modal.title
configurator.modal.description
Tools de-DE 2025-11-13
configurator.modal.linkproduct.page.accessories.title
product.page.accessories.associated-products
-
Cover frame for domestic switching devices 4 product.page.accessories.products-available -
Surface-mounted housing for flush-mounted switching device 5 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 24 product.page.accessories.products-available
product.page.accessories.title-modal
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
product.page.accessories.referenced_by.title
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA408Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
WNA403Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA402Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA401BFrame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA691BCable + tube entry, W.1, p. white, matt, plastic
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA690BCable entry for 2 cables, W.1, p. white, matt, plastic
-
WNA686B
Surface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA402B
cubyko Double horizontal flush adapter white IP55
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA685B
cubyko Double horizontal box empty with 4 sliders white IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA683B
cubyko Triple horizontal box empty white IP55
Technical characteristics
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementSingle rocker
Materials
-
ColourWhite
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
-
Contains recycled material (% of total plastic weight)0
-
Backside internalMatt
Dimensions
-
Height70 mm
-
Width70 mm
-
Depth45 mm
-
Built-in depth12 mm
-
Built-in depth flush-mounted boxes0
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Indicator lampWithout
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Connectivity
-
With claw mountingNo
Connection
-
Connector/plug typePlug-in terminal
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK08
Accessories
-
Has labelling fieldNo
-
Related Systemscubyko
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

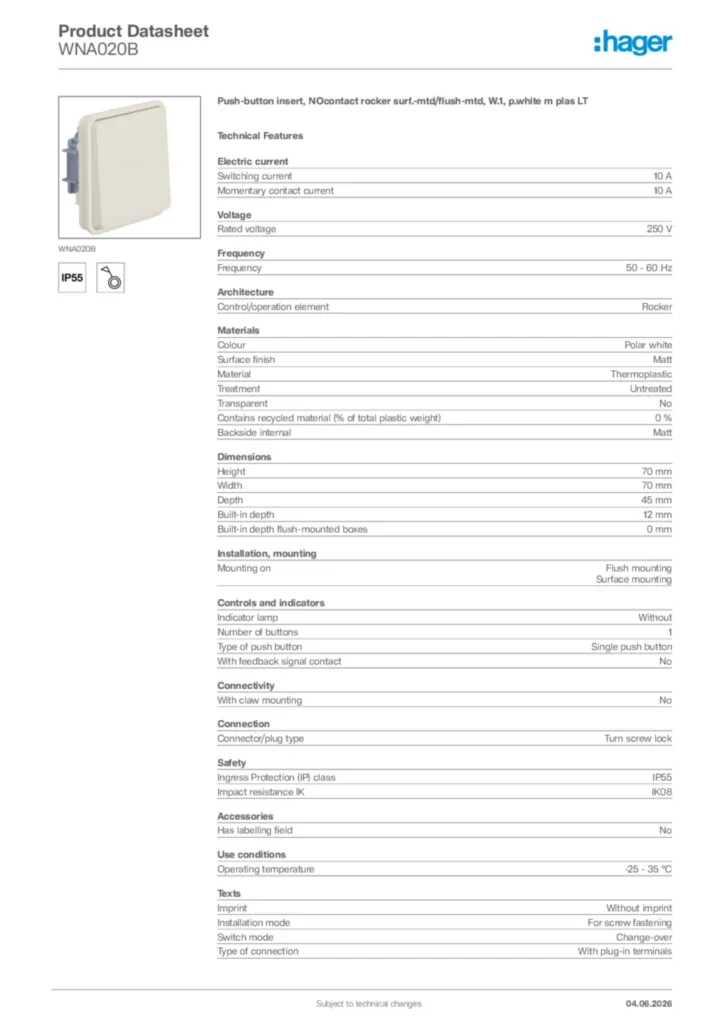

Hager Product data sheet WNA020B
