    The Hager cubyko 2P+E screwless wall-mounted socket delivers reliable outdoor power. Rated 16A 50-60Hz with earthing pin, it features IP55 weatherproofing and IK08 impact resistance with a self-closing hinged lid. Surface-mounted and horizontal, it uses plug-in connection with screw mounting for quick install. Grey RAL7011 PC/PP finish, 2 modules—ideal for terraces, garages, and workshops.
    EAN
    3250617171007
    Packaging
    10
    • cubyko - Surface-­mounted install­a­tion

    W.1 Push-button Change-over 10A 250V Surface-mount IP55 IK08 Grey Matt WNC100

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    W.1 Push-button Change-over 10A 250V Surface-mount IP55 IK08 Grey Matt

    WNC100

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Cable entry 1 products available
    • Accessor­ies/s­pare parts for domestic switching devices 1 products available

    Compatible products

    • Referenced by 27 products available

    Complete your system

    • Cable entry
    • Accessor­ies/s­pare parts for domestic switching devices
    • WNA694

      cubyko Link between 2 boxes grey IP55

      €0.00  / *
    • WNA692

      cubyko Installation tool

      €0.00  / *

    Referenced by

    • WNA683

      Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey

      €0.00  / *
    • WNA403

      Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey

      €0.00  / *
    • WNA403B

      Frame 3g horizontal for flush-mounted installation, with sealing W.1p-w

      €0.00  / *
    • WNA402

      Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt

      €0.00  / *
    • WNA402B

      Frame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w

      €0.00  / *
    • WNA401

      Frame 1gang for flush-mtd inst., sealing, W.1 ECO, light grey matt

      €0.00  / *
    • WNA401B

      Frame 1gang for flush-mounted installation, with sealing, W.1, polar white

      €0.00  / *
    • WNA693

      Tube entry M20 x 1.5, boltable, W.1, grey matt

      €0.00  / *
    • WNA691

      Cable + tube entry, W.1, grey matt

      €0.00  / *
    • WNA691B

      Cable + tube entry, W.1, p. white, matt, plastic

      €0.00  / *
    • WNA690

      Cable entry for 2 cables, W.1, grey matt

      €0.00  / *
    • WNA690B

      Cable entry for 2 cables, W.1, p. white, matt, plastic

      €0.00  / *
    • WNA686B

      Surface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw

      €0.00  / *
    • WNA682B

      Surface-mounted lower casing 2gang horizontal, w. frame and cable entries W.1 pw

      €0.00  / *
    • WNA694

      cubyko Link between 2 boxes grey IP55

      €0.00  / *
    • WNA684

      cubyko Single box empty with sliders for 1 cable grey IP55

      €0.00  / *
    • WNA681

      cubyko Single box empty grey IP55

      €0.00  / *
    • WNA681B

      Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white

      €0.00  / *
    • WNA685B

      cubyko Double horizontal box empty with 4 sliders white IP55

      €0.00  / *
    • WNA686

      cubyko Double vertical box empty grey IP55

      €0.00  / *

    Technical properties

    Elec­tric current
    • Rated current IN
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Mater­ials
    • Colour
      Grey
    • RAL code
      7011
    • Surface finish
      Matt, Satin finish
    • Material
      Polycar­bonate (PC), Polypro­pylene (PP)
    Dimen­sions
    • Height
      75 mm
    • Width
      75 mm
    • Depth
      22.80 mm
    • Number of units
      1
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Hori­zontal
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      Screw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      Earthing pin
    • With hinged lid
      Yes
    Accessories
    • Has labelling field
      No
    Cover, door
    • Type of lid
      Self-closing hinged cover, can be arrested in end posi­tion
    Capa­city
    • Number of modules
      2
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK08
    • Ingress Protec­tion (IP) class
      IP55
    Func­tions
    • With orient­a­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP - Socket 2P+E complete cubyko/W.1 grey (English)
    PDF
    1,47 MB
    REACH declaration WNC100
    PDF
    RoHS report WNC100
    PDF

    Downloads

    • Image WNC100  | Hager Africa

      Product Image WNC100

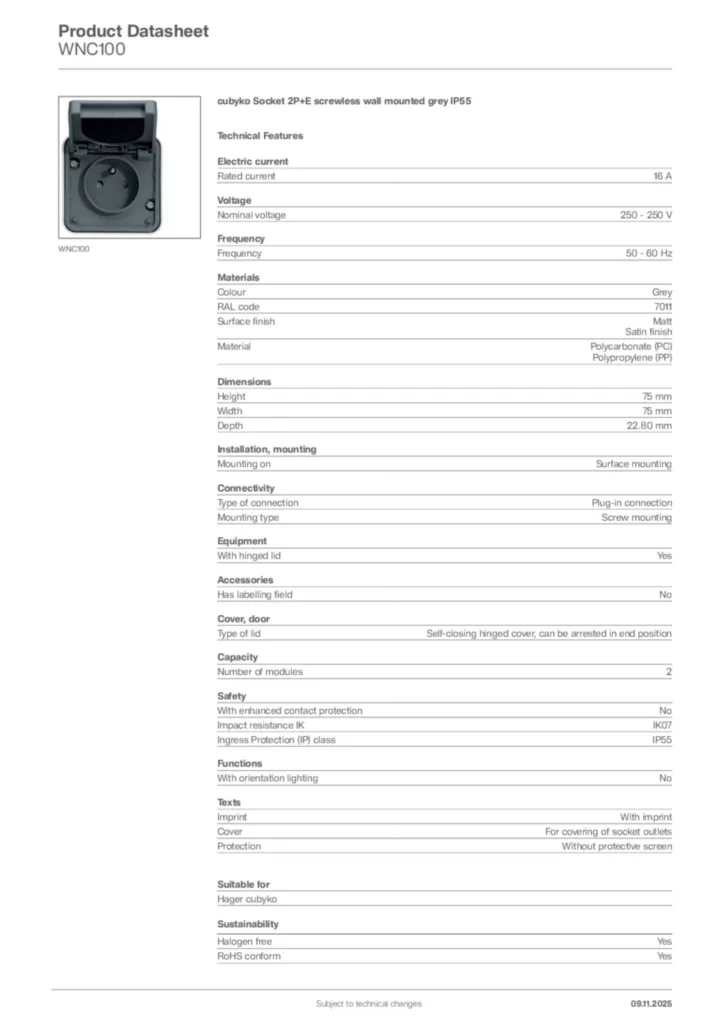

    • Product datasheet

      Image Hager Product data sheet WNC100  | Hager Africa

      Hager Product data sheet WNC100

      cubyko Socket 2P+E screwless wall mounted grey IP55

      PDF
    • Product licence

      Image Product licence en-GB, fr-FR 2013-08-27  | Hager Africa

      Product licence en-GB, fr-FR 2013-08-27

      PDF
      171,71 kB
    • Declaration of conformity

      Image Declaration of conformity International 2021-07-14  | Hager Africa

      Declaration of conformity International 2021-07-14

      PDF
      111,30 kB
      Image Declaration of conformity en-GB 2026-07-29  | Hager Africa

      Declaration of conformity en-GB 2026-07-29

      PDF
      130,16 kB
