The Hager cubyko double vertical 2P+E wall-mounted socket provides robust, weather‑resistant power distribution. IP55 and IK07 ensure protection against dust, water jets and impacts. Rated 16 A, 50-60 Hz, with French standard outlets and self-closing hinged covers. Screwless plug-in terminals speed installation. Surface mounting in grey RAL7011 satin-finish PP. Ideal for garages, workshops and outdoor areas.
EAN
3250617171328
Packaging
5
Switch 2-pole 10A Gallery 2 modules Click mounting IK05 WNC132
Login to create a product list
You need to be logged into your myHager account to create product lists
Also available in
Product colour - Grey
Grey
Pure white
Complete your system
Optional accessories
-
Cable entry 1 products available -
Accessories/spare parts for domestic switching devices 1 products available
Compatible products
-
Referenced by 8 products available
Complete your system
Referenced by
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
Technical properties
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL code7011
-
Surface finishSatin finish
-
MaterialPolypropylene (PP)
-
TreatmentVarnished
Dimensions
-
Height75 mm
-
Width75 mm
-
Depth22.80 mm
Installation, mounting
-
Mounting onSurface mounting
-
Mounting-/Connection PositionVertical
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeScrew mounting
Equipment
-
Connector/plug type socket outletFrench norm NF
-
Rotated central insertNo
-
With hinged lidYes
-
With signal lampNo
Accessories
-
Has labelling fieldNo
Cover, door
-
Type of lidSelf-closing hinged cover, can be arrested in end position
Capacity
-
Number of modules4
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP55
Functions
-
With orientation lightingNo
Identification
-
With imprintNo
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

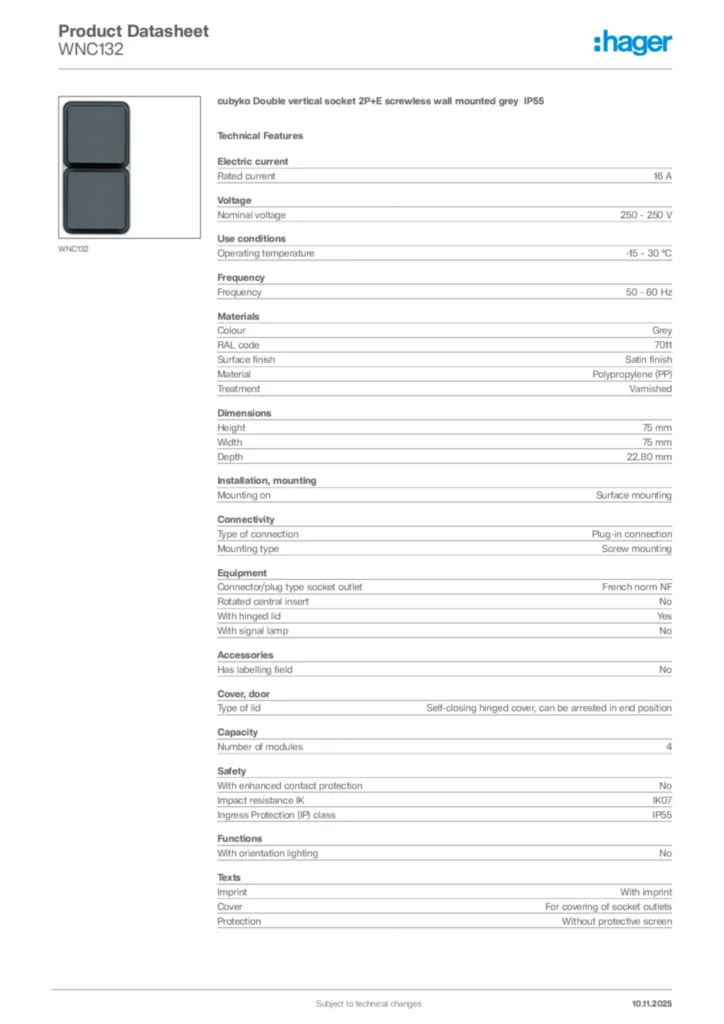

Product datasheet
Hager Product data sheet WNC132
cubyko Double vertical socket 2P+E screwless wall mounted grey IP55
PDF -
Product licence
Product licence en-GB, fr-FR 2013-08-27
PDF171,71 kB -
Declaration of conformity
Declaration of conformity International 2021-07-14
PDF111,30 kB
Declaration of conformity en-GB 2025-12-05
PDF227,13 kB
