cubyko 2-gang 2-way switch flush mounted white IP55 WNE040B
EAN
3250617173407
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 25 products available
Referenced by
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA683cubyko Triple horizontal box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA691cubyko Slider for tube and cable grey IP55
-
WNA690Bcubyko Slider for 2 cables white IP55
-
WNA691Bcubyko Slider for tube and cable white IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA690cubyko Slider for 2 cables grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403
cubyko Triple horizontal flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
Technical properties
Electric current
-
Rated current10 A
Installation, mounting
-
Mounting onFlush mounting
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPure white
-
RAL code9010
-
Surface finishMatt, Satin finish
-
MaterialPolypropylene (PP)
Identification
-
Assembly arrangementMechanism with upper casing
Connectivity
-
Mounting typeScrew mounting
Dimensions
-
Built-in depth flush-mounted boxes40 mm
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK07
Connection
-
Type of contacts2-way
Texts
-
LightingWithout lighting (cannot be illuminated)
-
Switch mode2-way
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

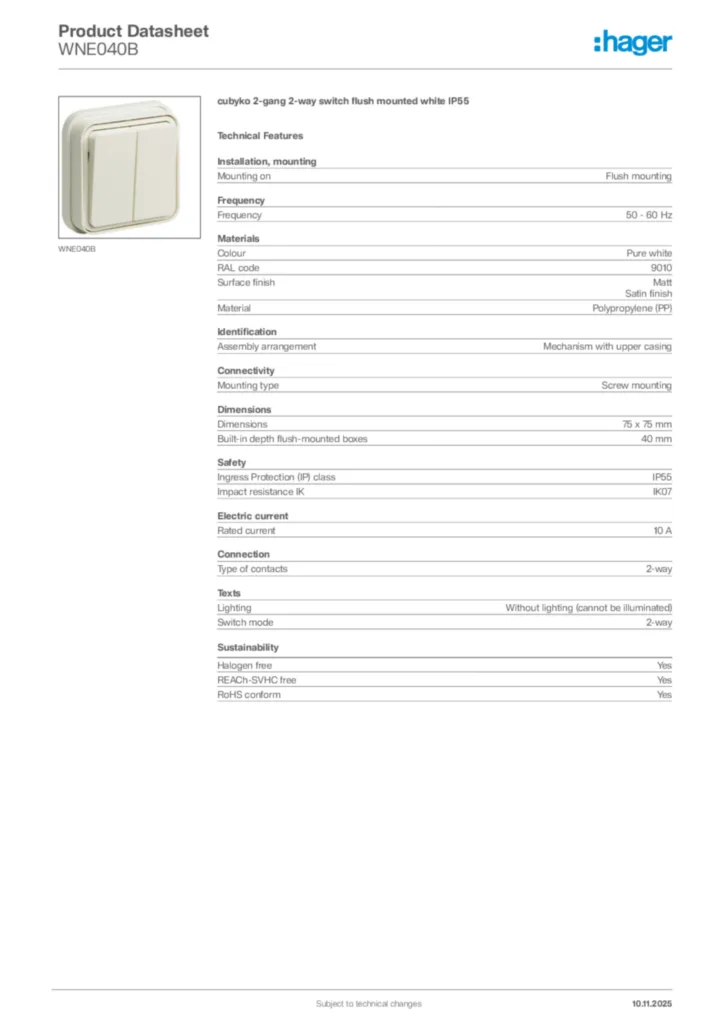

Product datasheet
undefined
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF119,33 kB
