Push-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT WNA044B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 5 products available -
Cover frame for domestic switching devices 4 products available
Compatible products
-
Referenced by 24 products available
Complete your system
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
Referenced by
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA694Connector for multiple combinations surface-mtd, W.1, grey matt
-
WNA408Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
WNA401BFrame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA690BCable entry for 2 cables, W.1, p. white, matt, plastic
-
WNA686B
Surface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA681cubyko Single box empty grey IP55
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402B
cubyko Double horizontal flush adapter white IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA683B
cubyko Triple horizontal box empty white IP55
-
WNA681
cubyko Single box empty grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
Technical properties
Electric current
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementDouble rocker
Materials
-
ColourWhite
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height71 mm
-
Width71 mm
-
Depth42 mm
-
Built-in depth flush-mounted boxes0
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Indicator lampAs an accessory
-
Number of buttons1
-
Type of push buttonSeries push button
-
With feedback signal contactNo
Connection
-
Connector/plug typeTurn screw lock
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK08
Accessories
-
Has labelling fieldNo
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

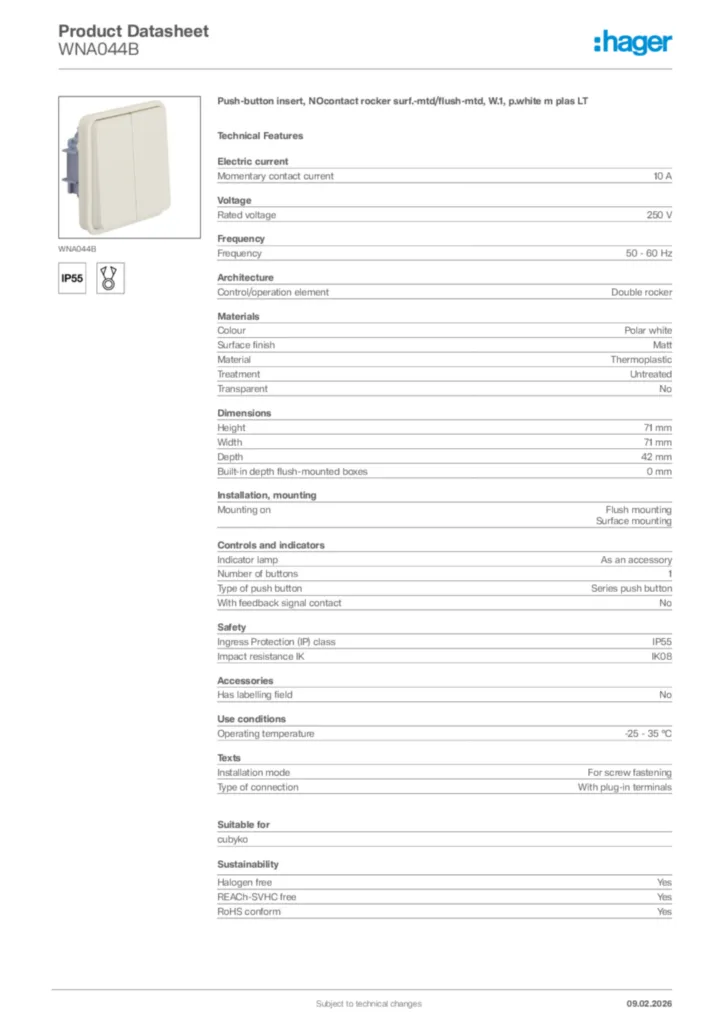

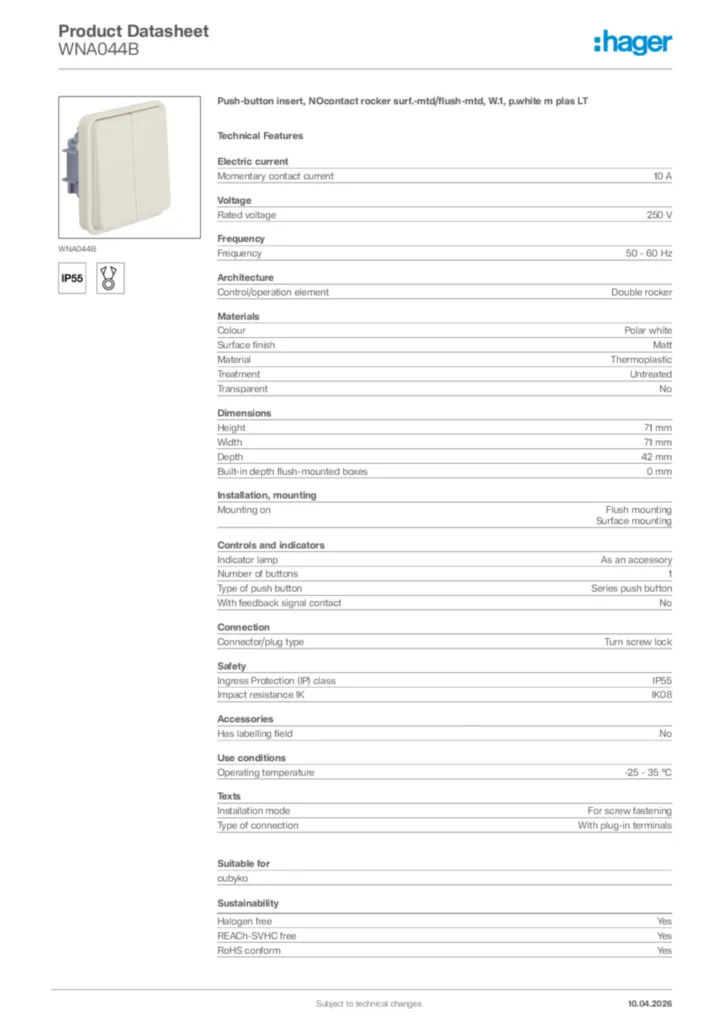

Product datasheet
Hager Product data sheet WNA044B
Push-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
PDF -
Tools
Tools de-DE 2025-11-13
URL -
Product licence
Product licence en-GB, fr-FR 2013-08-09
PDF191,18 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF119,33 kB
Declaration of conformity en-GB 2026-07-29
PDF195,73 kB
Deklaracja zgodności UE
W.1 Moduły łączników; WNA…, WNC…
PDF311,55 kB
