cubyko Socket 2P+E with label holder composable white IP55 WNA104B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 21 products available
Referenced by
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA685B
cubyko Double horizontal box empty with 4 sliders white IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
Technical properties
Electric current
-
Rated current16 A
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPure white
-
RAL code9010
-
MaterialPolycarbonate (PC), Polypropylene (PP)
Dimensions
-
Height75 mm
-
Width75 mm
-
Depth22.80 mm
-
Built-in depth flush-mounted boxes40 mm
Connection
-
Connector/plug typeTurn screw lock
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Connectivity
-
Type of connectionPlug-in connection
-
Mounting typeClick mounting
Equipment
-
Connector/plug type socket outletFrench norm NF
-
Rotated central insertNo
-
With hinged lidYes
-
With round protective earth pinYes
-
With signal lampNo
Cover, door
-
Type of lidSelf-closing hinged cover, can be arrested in end position
Capacity
-
Number of modules2
Safety
-
With enhanced contact protectionNo
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP55
Functions
-
With orientation lightingNo
Identification
-
With imprintNo
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

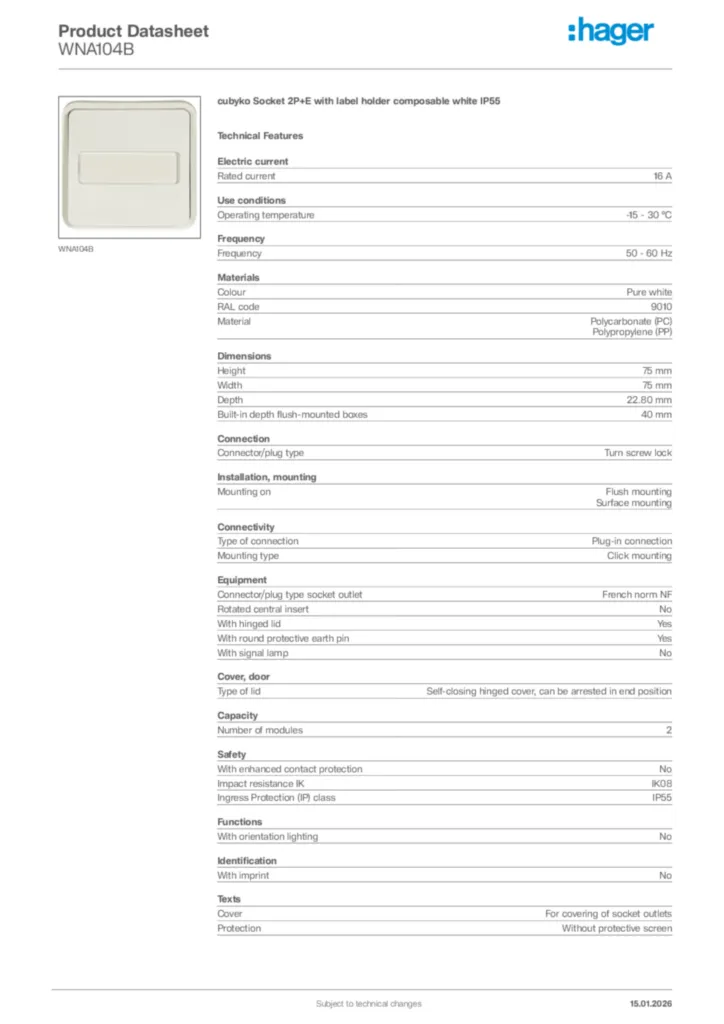

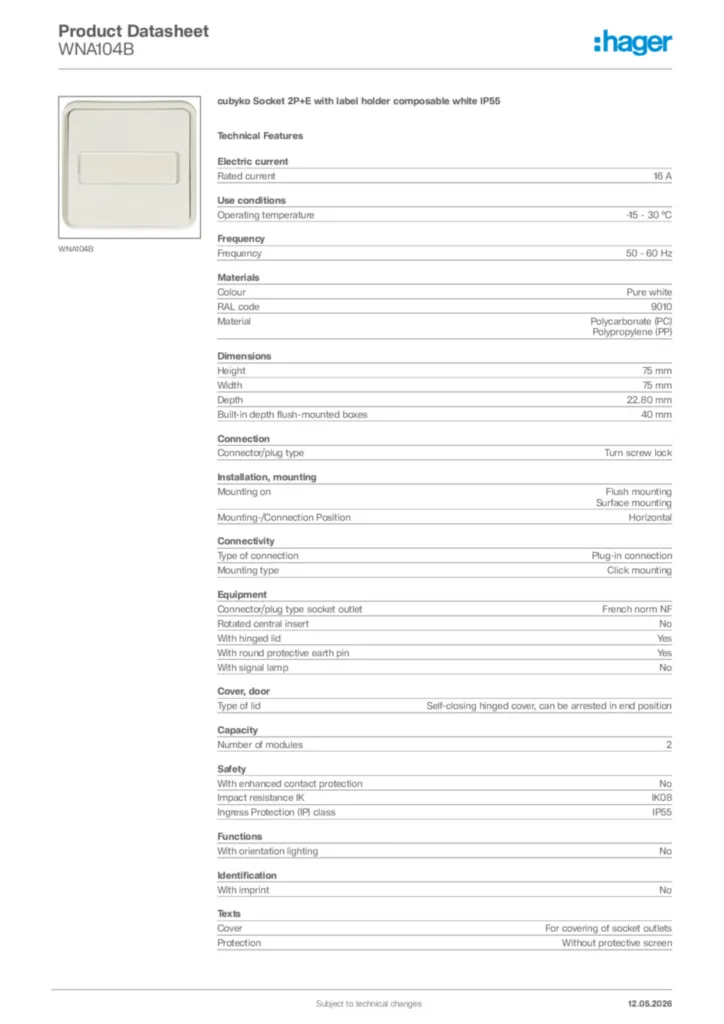

Product datasheet
Hager Product data sheet WNA104B
cubyko Socket 2P+E with label holder composable white IP55
PDF -
Product licence
Product licence en-GB, fr-FR 2013-08-27
PDF171,71 kB -
Declaration of conformity
Declaration of conformity International 2021-07-14
PDF111,30 kB
Declaration of conformity en-GB 2025-12-05
PDF227,13 kB
