cubyko Push-button 1O/1F illuminated composable grey IP55 WNA021
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (7)
Optional accessories
-
Illumination insert for domestic switching devices 7 products available
Accessories mandatory
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA401cubyko Single flush adapter composable grey IP55
Complete your system
-
WUZ699Control lamp 250V White integrated range "L" form
-
WUZ698Signal lamp 250V White integrated range "I" form
-
WUZ697Signal lamp 28V Red, integrated range "I" form
-
WUZ696Control lamp 250V Blue integrated range "L" form
-
WUZ695Signal lamp 250V Red integrated range "I" form
-
WUZ692
Signal lamp 28V Blue integrated range "I" form
-
WUZ691Control lamp 250V Red integrated range "L" form
Technical properties
Electric current
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementRocker
Materials
-
ColourGrey
-
Surface finishMatt, Satin finish
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height55 mm
-
Width55 mm
-
Depth41 mm
-
Built-in depth flush-mounted boxes40 mm
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Connection
-
Connector/plug typeTurn screw lock
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK05
Accessories
-
Has labelling fieldNo
-
Related Systemscubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

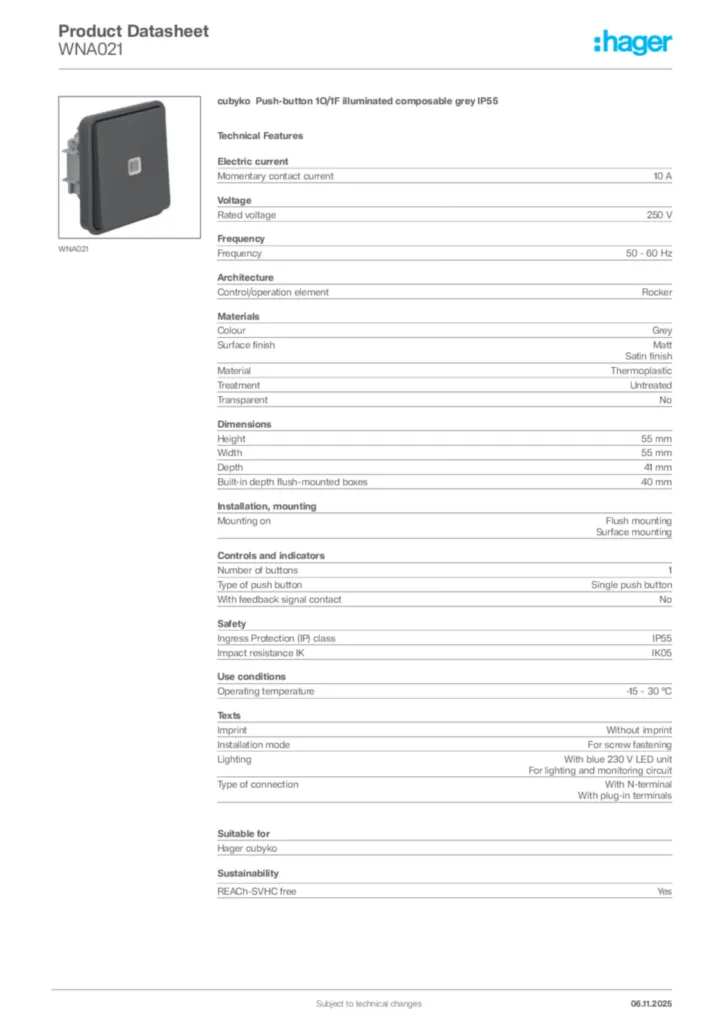

Product datasheet

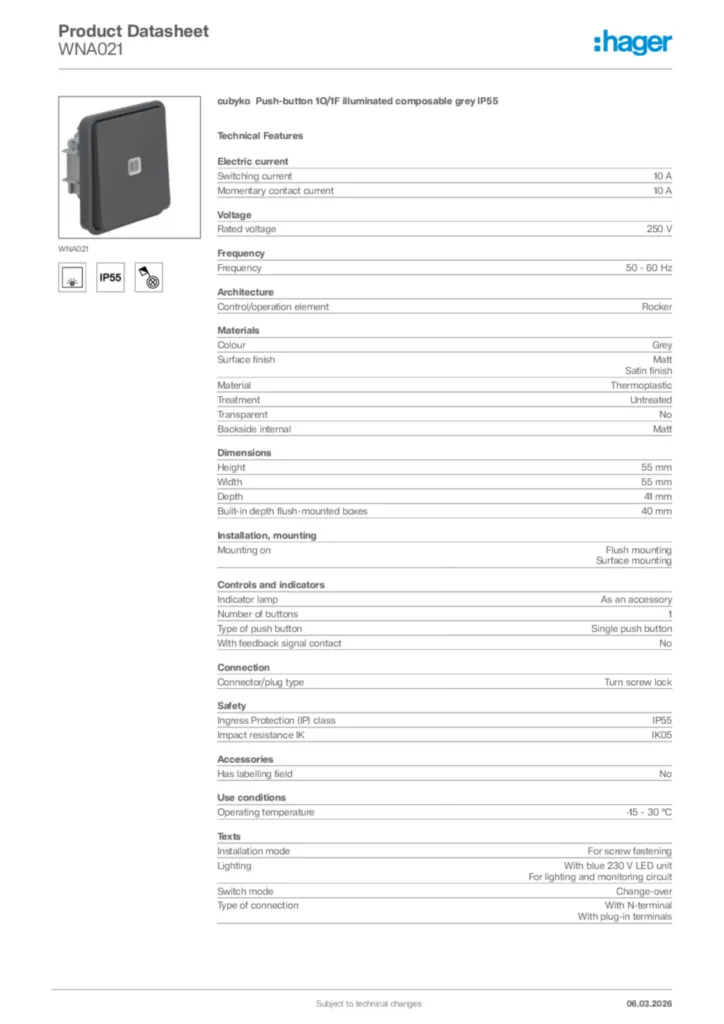

Hager Product data sheet WNA021
cubyko Push-button 1O/1F illuminated composable grey IP55
PDF -
Tools
Tools de-DE 2024-10-02
URL
Tools de-DE 2025-11-13
URL -
Product licence
Product licence en-GB, fr-FR 2013-08-09
PDF191,18 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF119,33 kB
Declaration of conformity en-GB 2025-12-05
PDF253,40 kB
