The Hager cubyko 3-position non-stable key switch offers secure control for blinds, shutters, or access functions. Rated 10A, 1‑pole, with IP55 protection for outdoor or damp areas. Key removable in 0 position with differing locking for security. Features push-lock action, isolated UP/DOWN inputs, screw terminals, Wago clip-in wiring, and mounting adapter. Polar white RAL9010 matt thermoplastic for durable, clean installs.
EAN
3250617175371
Packaging
1 Piece
Venetian blind switch 1-way 2-pole Grey IP21 Gallery 2 Modules WNA037B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surface-mounted housing for flush-mounted switching device 5 products available -
Cover frame for domestic switching devices 3 products available
Compatible products
-
Referenced by 18 products available
Complete your system
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA683BSurface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
Referenced by
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA686B
Surface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA683B
Surface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681B
Surface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682B
cubyko Double horizontal box empty with 2 sliders white IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA681cubyko Single box empty grey IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA402B
cubyko Double horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685B
cubyko Double horizontal box empty with 4 sliders white IP55
Technical properties
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
Contains recycled material (% of total plastic weight)0
-
MaterialThermoplastic
-
TreatmentUntreated
Controls and indicators
-
Venetian blind switch type2-pole switch
Voltage
-
Rated voltage240 V
Electric current
-
Switching current10 A
-
Switching current10 A
Safety
-
Ingress Protection (IP) classIP55
-
Locking typeDiffering locking
Use conditions
-
Operating temperature-15 - 30 °C
Texts
-
Switch mode1-pole
-
Type of connectionWith screw terminals
-
Installation modeWith mounting adapter
-
TerminalWith Wago clip-in 2-wire connection terminal for wiring, With two clip-in places for Wago 2-wire connection terminals in the housing floor, Isolated input terminals for UP and DOWN
-
FunctionWith push lock function
Connection
-
Connector/plug typeScrew terminal
Equipment
-
Is key removableYes, in 0-Position
-
Related Seriescubyko
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

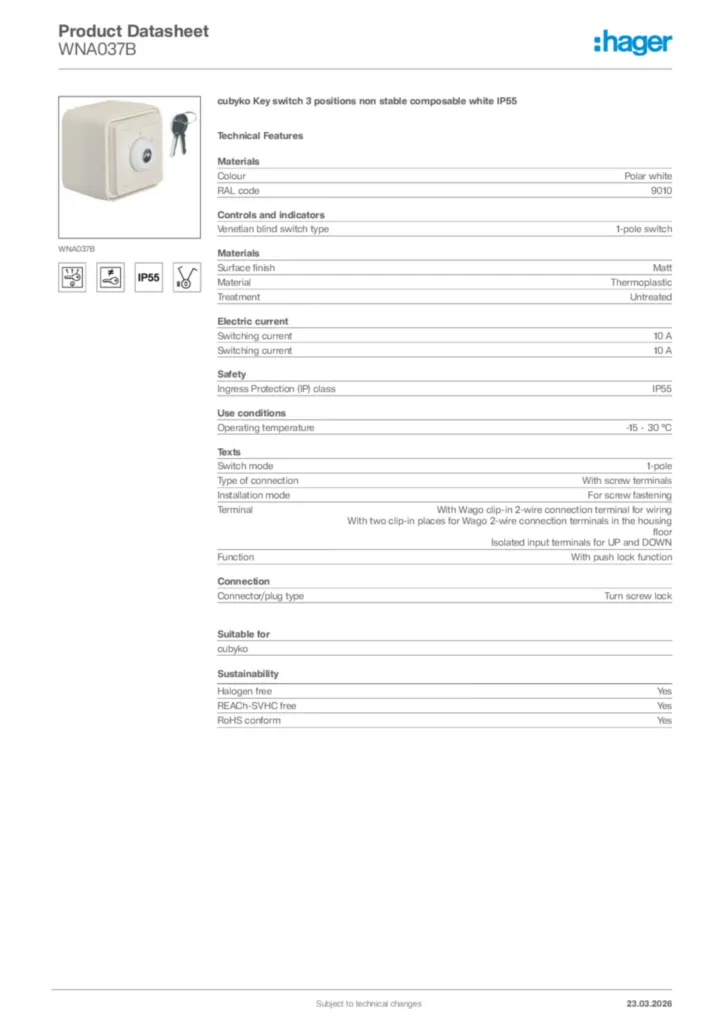

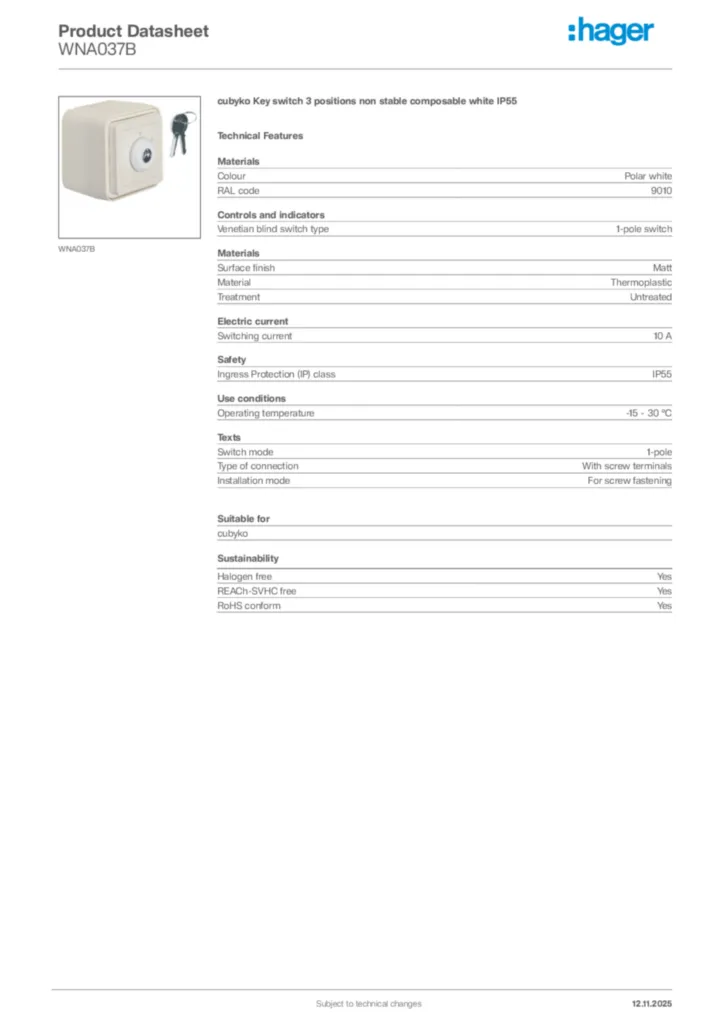

Hager Product data sheet WNA037B
cubyko Key switch 3 positions non stable composable white IP55
PDF -
Tools
Tools de-DE 2025-11-13
URL -
Declaration of conformity
Declaration of conformity International 2021-09-10
PDF115,60 kB
Declaration of conformity en-GB 2025-12-05
PDF253,40 kB
Deklaracja zgodności UE
W.1 Akcesoria; WNA…, WNC…
PDF315,19 kB
