SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m. WNA032
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (9)
Compatible products
-
Referenced by 19 products available
Accessories mandatory
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA681cubyko Single box empty grey IP55
-
WNA683cubyko Triple horizontal box empty grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
Referenced by
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA683BSurface-mounted lower casing 3gang horizontal, w. frame and cable entries W.1 pw
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA683
cubyko Triple horizontal box empty grey IP55
-
WNA681
cubyko Single box empty grey IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA408
cubyko Double vertical flush adapter grey IP55
-
WNA403
cubyko Triple horizontal flush adapter grey IP55
-
WNA402
cubyko Double horizontal flush adapter grey IP55
-
WNA401
cubyko Single flush adapter composable grey IP55
-
WNA682
cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
Technical properties
Dimensions
-
Width75 mm
-
Height75 mm
-
Depth85 mm
Safety
-
Ingress Protection (IP) classIP55
Voltage
-
Nominal voltage250 - 250 V
Electric current
-
Switching current10 A
Use conditions
-
Operating temperature-15 - 30 °C
Materials
-
MaterialPolypropylene (PP)
-
ColourGrey
Architecture
-
Control/operation elementKey
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

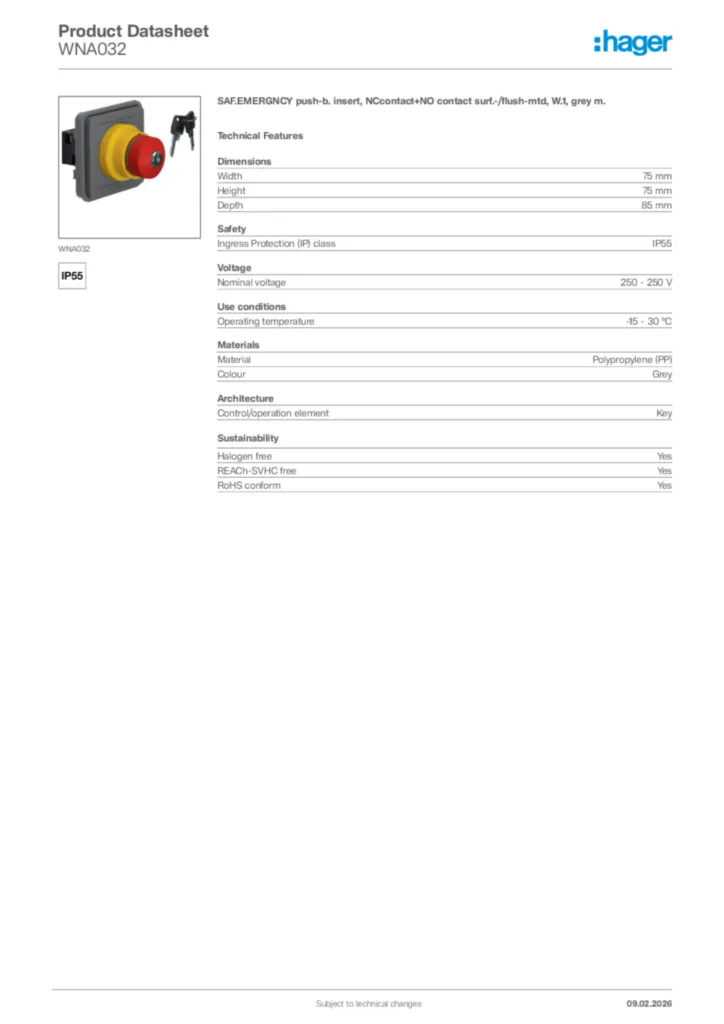

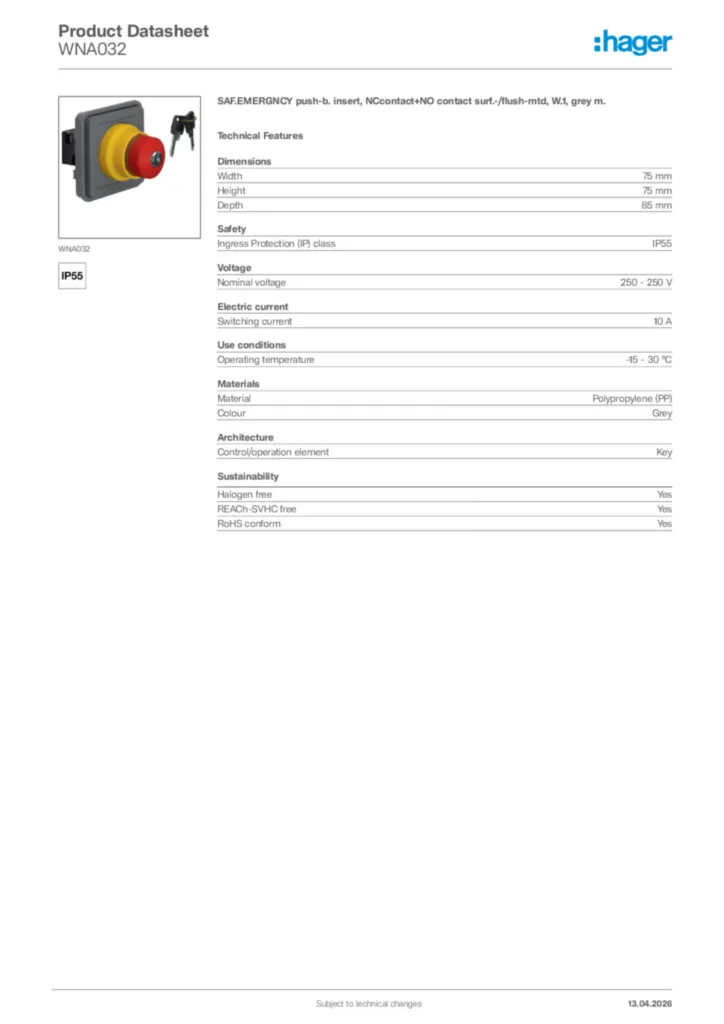

Hager Product data sheet WNA032
SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
PDF -
Tools
Tools de-DE 2025-11-13
URL -
Declaration of conformity
Declaration of conformity International 2021-09-10
PDF100,05 kB
Declaration of conformity en-GB 2025-12-05
PDF253,40 kB

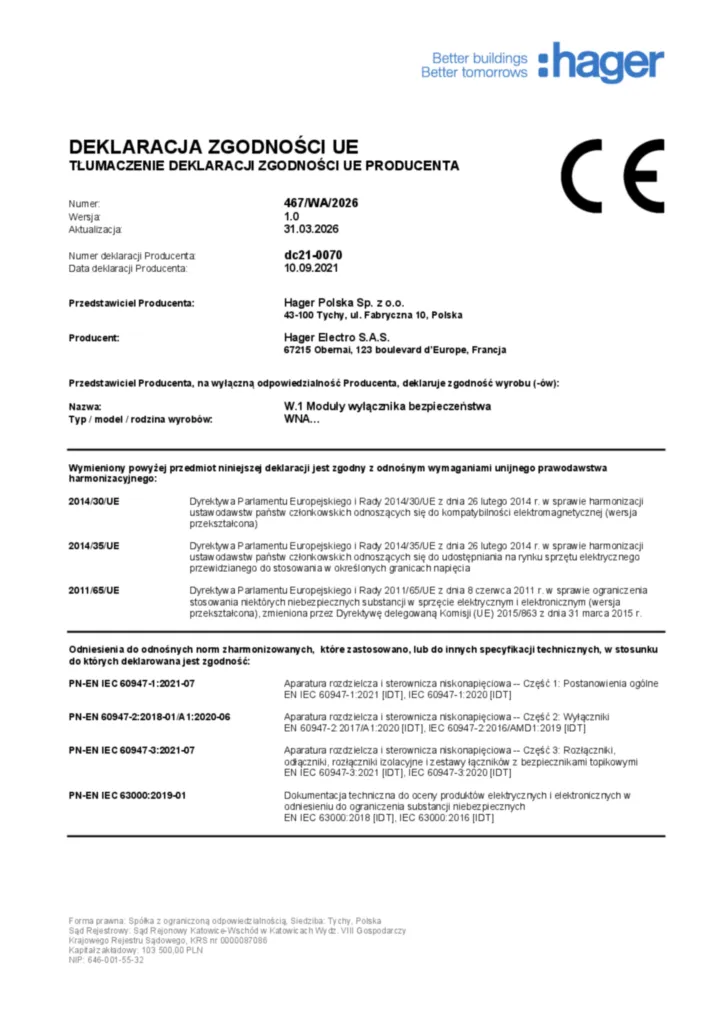

Deklaracja zgodności UE
W.1 Moduły wyłącznika bezpieczeństwa; WNA…
PDF308,88 kB
