Key switch f.blinds impr. surf.-mtd,isolated input ,lock-differing lockings, W.1 WNC036
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
configurator.modal.title
configurator.modal.description
Tools de-DE 2025-11-13
configurator.modal.linkproduct.page.accessories.title
product.page.accessories.associated-products
-
Cable entry 1 product.page.accessories.products-available -
Accessories/spare parts for domestic switching devices 1 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 18 product.page.accessories.products-available
product.page.accessories.title-modal
product.page.accessories.referenced_by.title
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA408Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
WNA403Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA402Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA401BFrame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA401cubyko Single flush adapter composable grey IP55
Technical characteristics
Materials
-
ColourGrey
-
RAL codeSimilar to RAL 7011
-
Surface finishMatt
-
Contains recycled material (% of total plastic weight)0
-
MaterialThermoplastic
-
TreatmentUntreated
Controls and indicators
-
Venetian blind switch type1-pole switch
Voltage
-
Rated voltage240 V
Electric current
-
Switching current10 A
-
Switching current10 A
Safety
-
Ingress Protection (IP) classIP55
-
Locking typeDiffering locking
Use conditions
-
Operating temperature-15 - 30 °C
Texts
-
Switch mode1-pole
-
Type of connectionWith screw terminals
-
Installation modeFor screw fastening
-
FunctionWith push lock function
Connection
-
Connector/plug typeScrew terminal
Equipment
-
Is key removableYes, in 0-Position
Frequency
-
Frequency50 - 60 Hz
-
Related Product TypesCover frame for domestic switching devices, Surface-mounted housing for flush-mounted switching device
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

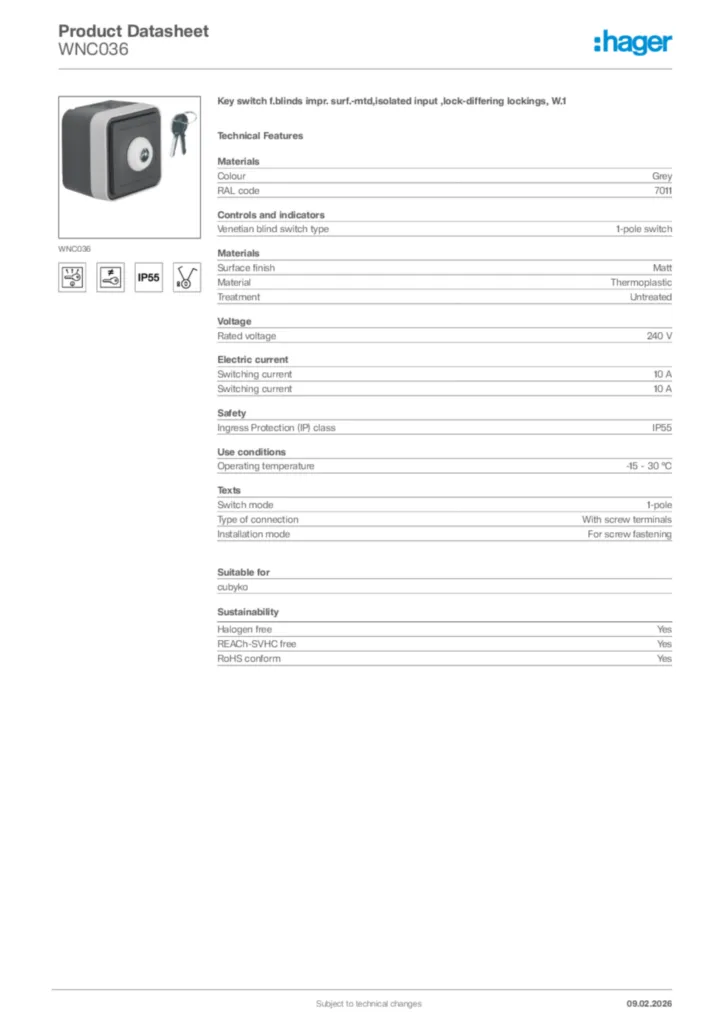

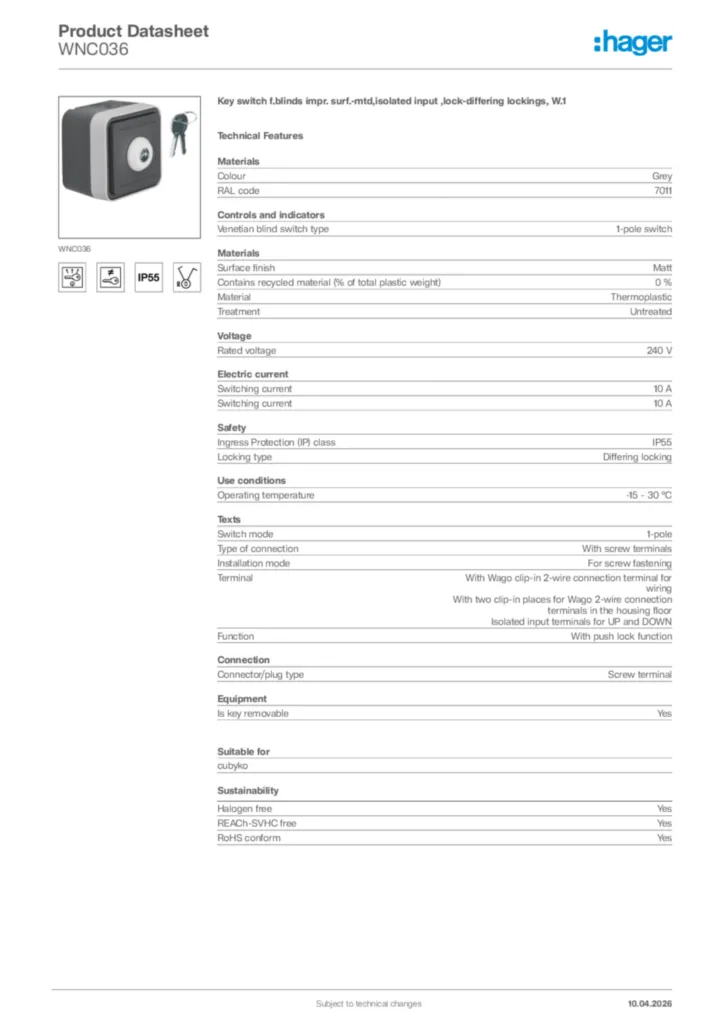

Hager Product data sheet WNC036
