Change-over switch surface-mtd, W.1, p. white, matt, plastic LT WNC001B
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 26 products available
Referenced by
-
WNA691cubyko Slider for tube and cable grey IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA686Bcubyko Double vertical box empty white IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA408Bcubyko Double vertical flush adapter white IP55
-
WNA403Bcubyko Triple horizontal flush adapter white IP55
-
WNA686cubyko Double vertical box empty grey IP55
-
WNA690Bcubyko Slider for 2 cables white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA691Bcubyko Slider for tube and cable white IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA408cubyko Double vertical flush adapter grey IP55
-
WNA401Bcubyko Single flush adapter composable white IP55
-
WNA690cubyko Slider for 2 cables grey IP55
-
WNA403cubyko Triple horizontal flush adapter grey IP55
-
WNA402cubyko Double horizontal flush adapter grey IP55
Technical properties
Electric current
-
Switching current10 A
-
Rated current10 A
Installation, mounting
-
Mounting onSurface mounting
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourPolar white
-
RAL code9010
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
Identification
-
Assembly arrangementBasic element with complete housing
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons1
Dimensions
-
Built-in depth0
-
Built-in depth flush-mounted boxes0
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK08
Architecture
-
Control/operation elementSingle rocker
Texts
-
Installation modeFor screw fastening
-
Type of connectionWith plug-in terminals
-
Switch modeChange-over
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

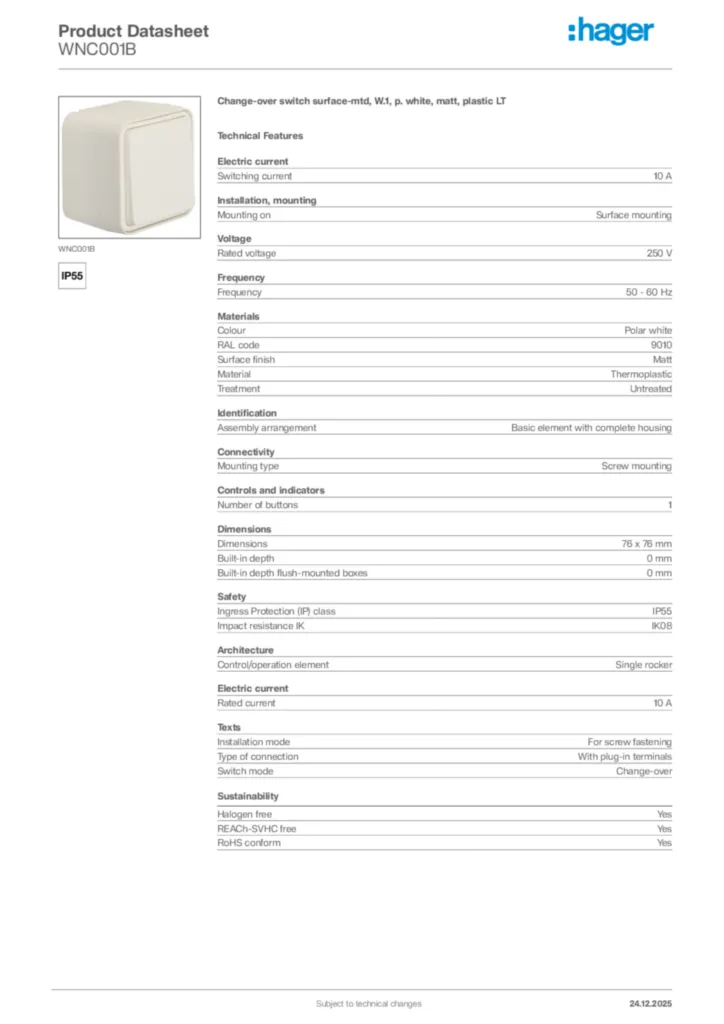

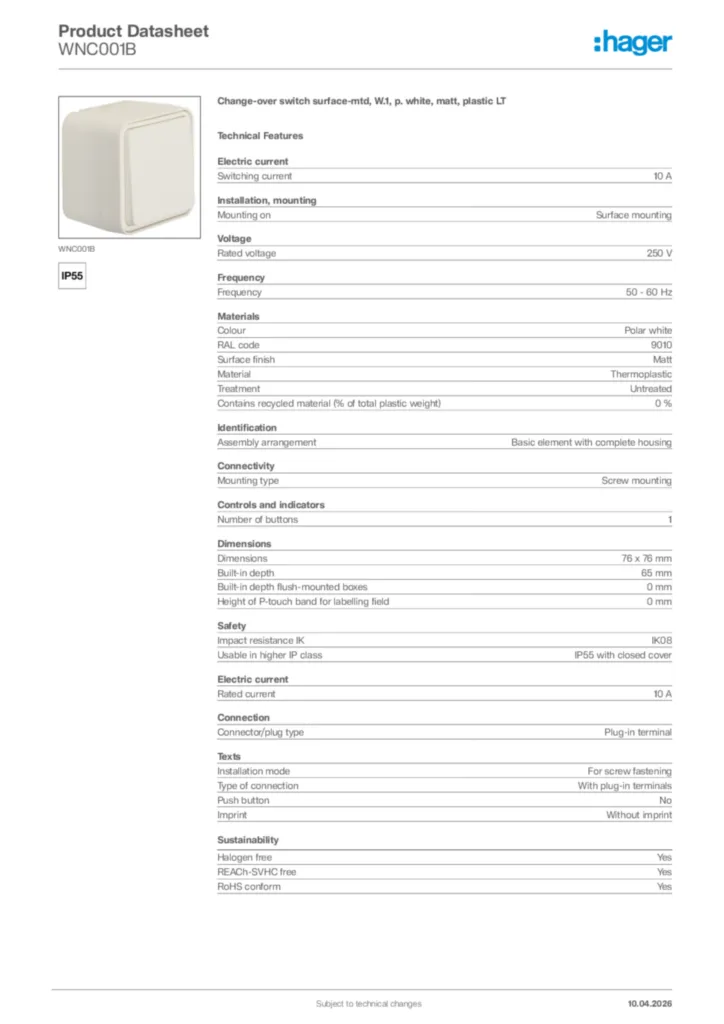

Product datasheet
Hager Product data sheet WNC001B
Change-over switch surface-mtd, W.1, p. white, matt, plastic LT
PDF -
Tools
Tools de-DE 2024-10-02
URL
Tools de-DE 2025-11-13
URL -
Declaration of conformity
Declaration
Declaration of conformity International 2021-07-14
PDF119,33 kB
Declaration of conformity en-GB 2025-12-05
PDF253,40 kB
More documentation
Discover more of this product range
-
5
-
1
WNC122cubyko Double horizontal socket 2P+E screwless wall mounted grey IP55 -
2
WNC023cubyko Push-button 1F with control light wall mounted grey IP55 -
3
WNC041cubyko 2-gang 2-way switch wall mounted with light grey IP55 -
4
WNC020Push-button, NO contact surface-mtd, W.1, grey/light grey matt LT -
5
WNC123B3gang soc.out. earthing pin + hinged cover surf.-mtd, W.1, p.white matt plastic
