cubyko 2-way switch illuminated composable grey IP55 WNA002
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
configurator.modal.title
configurator.modal.description
Tools de-DE 2025-11-13
configurator.modal.linkproduct.page.accessories.title
product.page.accessories.associated-products
-
Surface-mounted housing for flush-mounted switching device 5 product.page.accessories.products-available -
Illumination insert for domestic switching devices 5 product.page.accessories.products-available -
Cover frame for domestic switching devices 4 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 24 product.page.accessories.products-available
product.page.accessories.title-modal
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA403
Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA408Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
product.page.accessories.referenced_by.title
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA408
Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
WNA403
Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA402
Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA401BFrame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA691BCable + tube entry, W.1, p. white, matt, plastic
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA690BCable entry for 2 cables, W.1, p. white, matt, plastic
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA683
Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA402Bcubyko Double horizontal flush adapter white IP55
-
WNA682Bcubyko Double horizontal box empty with 2 sliders white IP55
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
Technical characteristics
Electric current
-
Switching current10 A
-
Rated current IN10 A
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Materials
-
ColourGrey
-
RAL codeSimilar to RAL 7011
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
Contains recycled material (% of total plastic weight)0
Identification
-
Assembly arrangementControl element
Accessories
-
Has labelling fieldNo
Connectivity
-
Mounting typeScrew mounting
Controls and indicators
-
Number of buttons1
Dimensions
-
Built-in depth12 mm
-
Built-in depth flush-mounted boxes40 mm
Safety
-
Impact resistance IKIK08
-
Usable in higher IP classIP55 with closed cover
Connection
-
Type of contacts2-way
-
Connector/plug typeTurn screw lock
Texts
-
Installation modeFor screw fastening
-
Type of connectionWith N-terminal, With plug-in terminals
-
LightingFor illumination
-
Push buttonNo
Equipment
-
With lightingYes
Architecture
-
Control/operation elementSingle rocker
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

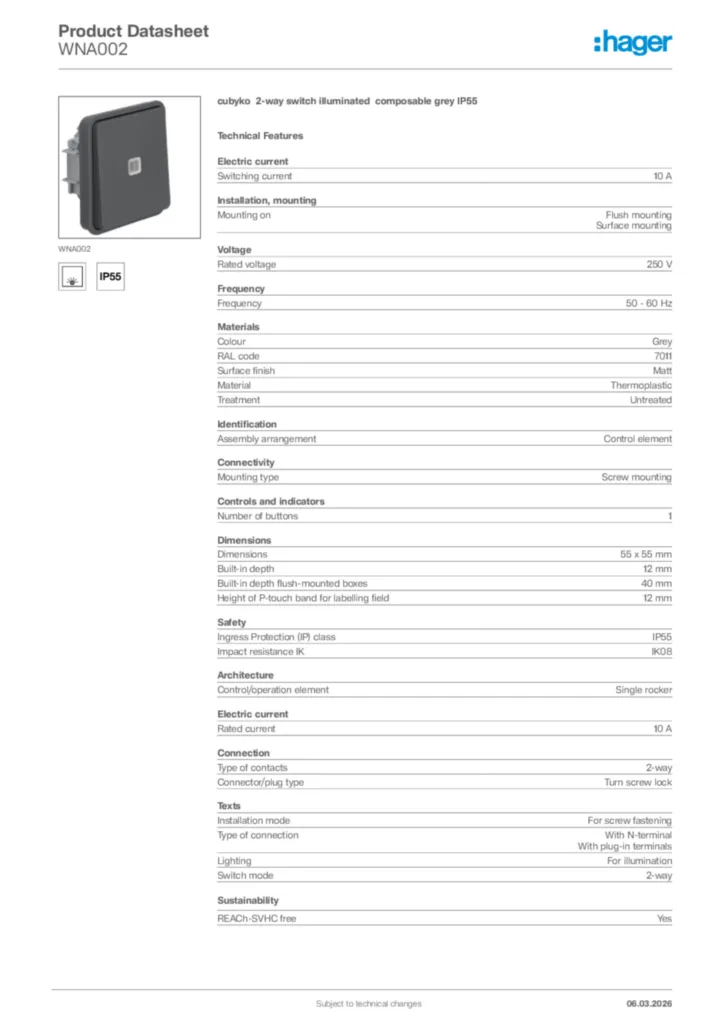

Hager Product data sheet WNA002
