The Hager cubyko PB 1F composite grey push-button with front plate is a 1-gang momentary rocker for lighting and control circuits. Rated 10A, 250V, 50-60Hz, it suits residential and commercial uses. IP55 and IK05 ensure weather and impact resistance for outdoor or damp areas. Flush or surface mounting with turn screw lock for quick wiring. Matte thermoplastic finish with labelling field for clear identification.
EAN
3250617174251
VPE
1 piece
Double socket 2P+E 16A for wall duct, click mount, rotated insert, IK07 WNA025
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Surface-mounted housing for flush-mounted switching device 5 product.page.accessories.products-available -
Illumination insert for domestic switching devices 1 product.page.accessories.products-available -
Cover frame for domestic switching devices 4 product.page.accessories.products-available
product.page.accessories.compatible.title
-
product.page.accessories.referenced_by.title 24 product.page.accessories.products-available
product.page.accessories.title-modal
-
WNA682cubyko Double horizontal box empty with 2 sliders grey IP55
-
WNA685cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA684cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA683Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA401cubyko Single flush adapter composable grey IP55
-
WNA402Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA403
Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA408Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
product.page.accessories.referenced_by.title
-
WNA683
Surface-mounted lower casing 3gang hor., w. frame and cable entries W.1 grey
-
WNA408
Frame 2gang vertical for flush-mounted installation, with sealing W.1 light grey
-
WNA403
Frame 3g horizontal for flush-mounted installation, with sealing W.1light grey
-
WNA402
Frame 2gang hor. for flush-mtd inst., sealing, W.1 ECO, light grey matt
-
WNA402BFrame 2gang horizontal for flush-mounted installation, with sealing, W.1, p-w
-
WNA401BFrame 1gang for flush-mounted installation, with sealing, W.1, polar white
-
WNA691Cable + tube entry, W.1, grey matt
-
WNA691BCable + tube entry, W.1, p. white, matt, plastic
-
WNA690Cable entry for 2 cables, W.1, grey matt
-
WNA690BCable entry for 2 cables, W.1, p. white, matt, plastic
-
WNA686BSurface-mounted lower casing 2gang vertical, w. frame and cable entries W.1 pw
-
WNA682BSurface-mounted lower casing 2gang horizontal, w. frame and cable entries W.1 pw
-
WNA694cubyko Link between 2 boxes grey IP55
-
WNA684
cubyko Single box empty with sliders for 1 cable grey IP55
-
WNA681BSurface-mounted lower casing 1gang with frame and cable entries W.1 polar white
-
WNA693cubyko Slider for cable gland M20 IP55
-
WNA685Bcubyko Double horizontal box empty with 4 sliders white IP55
-
WNA686
cubyko Double vertical box empty grey IP55
-
WNA685
cubyko Double horizontal box empty with 4 sliders grey IP55
-
WNA683Bcubyko Triple horizontal box empty white IP55
Technical characteristics
Electric current
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Frequency
-
Frequency50 - 60 Hz
Architecture
-
Control/operation elementSingle rocker
Materials
-
ColourGrey
-
Surface finishMatt
-
MaterialThermoplastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height70.90 mm
-
Width70.90 mm
-
Depth41.50 mm
-
Built-in depth flush-mounted boxes0
-
Height of P-touch band for labelling field12 mm
Installation, mounting
-
Mounting onFlush mounting, Surface mounting
Controls and indicators
-
Number of buttons1
-
Type of push buttonSingle push button
-
With feedback signal contactNo
Connection
-
Connector/plug typeTurn screw lock
Safety
-
Ingress Protection (IP) classIP55
-
Impact resistance IKIK08
Accessories
-
Has labelling fieldYes
-
Related Systemscubyko
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

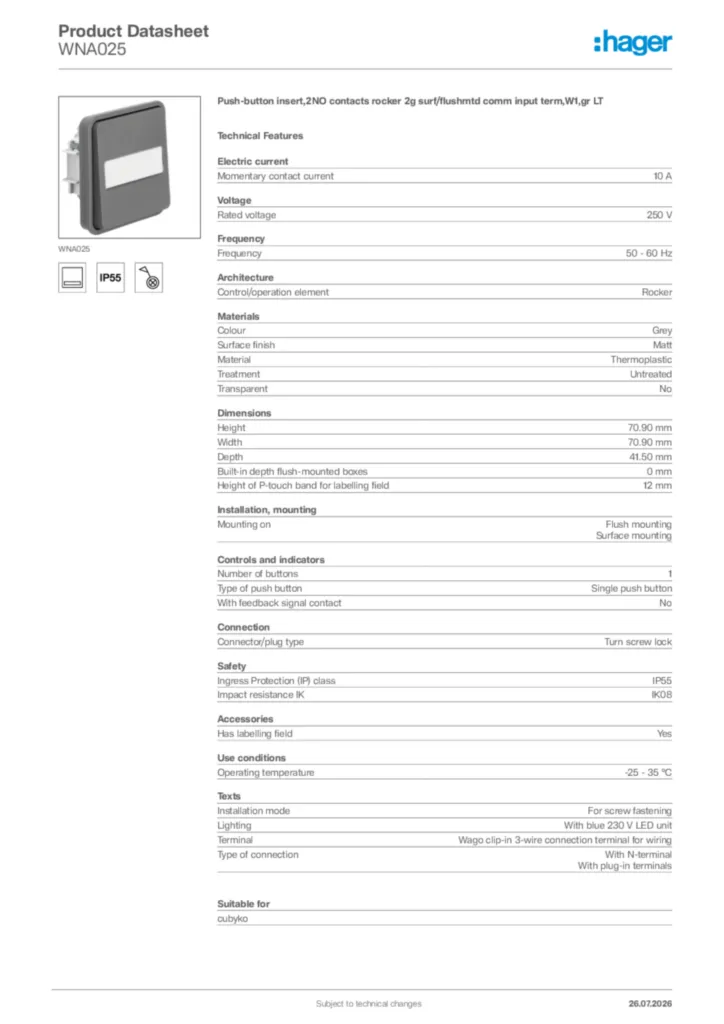

Hager Product data sheet WNA025
