cubyko Double horizontal socket 2P+E screwless wall mounted white IP55 WNC122B

EAN
3250617171243
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

cubyko Double horizontal socket 2P+E screwless wall mounted white IP55

WNC122B

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Compatible products

  • Referenced by 9 products available

Referenced by

  • WNA686B

    cubyko Double vertical box empty white IP55
    0.00 €  / *
  • WNA686

    cubyko Double vertical box empty grey IP55
    0.00 €  / *
  • WNA685B

    cubyko Double horizontal box empty with 4 sliders white IP55
    0.00 €  / *
  • WNA685

    cubyko Double horizontal box empty with 4 sliders grey IP55
    0.00 €  / *
  • WNA682

    cubyko Double horizontal box empty with 2 sliders grey IP55
    0.00 €  / *
  • WNA402

    cubyko Double horizontal flush adapter grey IP55
    0.00 €  / *
  • WNA682B

    cubyko Double horizontal box empty with 2 sliders white IP55
    0.00 €  / *
  • WNA402B

    cubyko Double horizontal flush adapter white IP55
    0.00 €  / *
  • WNA682

    cubyko Double horizontal box empty with 2 sliders grey IP55
    0.00 €  / *

Technical properties

Elec­tric current
  • Rated current
    16 A
Voltage
  • Rated voltage
    250 V
  • Nominal voltage
    250 - 250 V
Frequency
  • Frequency
    50 - 60 Hz
Mater­ials
  • Colour
    Polar white
  • RAL code
    9010
  • Surface finish
    Matt
  • Material
    Ther­mo­plastic
  • Treat­ment
    Untreated
Dimen­sions
  • Height
    76 mm
  • Width
    147 mm
  • Depth
    22.80 mm
  • Number of units
    2
  • Built-in depth flush-­mounted boxes
    0
  • Built-in depth
    0
Connec­tion
  • Connect­or/plug type
    Plug clamp
Install­a­tion, mounting
  • Mounting on
    Surface mounting
  • Mount­ing-/­Con­nec­tion Posi­tion
    Hori­zontal
Connectivity
  • Type of connec­tion
    Plug-in connec­tion
  • Mounting type
    Screw mounting
Equip­ment
  • Connect­or/plug type socket outlet
    Earthing pin
  • Rotated central insert
    No
  • With hinged lid
    Yes
  • With round protective earth pin
    Yes
  • With signal lamp
    No
  • With lock
    No
Accessories
  • Has labelling field
    No
Cover, door
  • Type of lid
    Self-closing hinged cover, can be arrested in end posi­tion
Capa­city
  • Number of modules
    2
Safety
  • With enhanced contact protec­tion
    Yes
  • Impact resist­ance IK
    IK07
  • Ingress Protec­tion (IP) class
    IP55
Func­tions
  • With orient­a­tion lighting
    No
  • With func­tion lighting
    No
Iden­ti­fic­a­tion
  • With imprint
    No
  • Related Systems
    Hager cubyko

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
Halogen free Yes

Certifications and documents

Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
PDF
48,73 MB
Hager REACH declaration WNC122B
PDF
Hager RoHS report WNC122B
PDF

Downloads

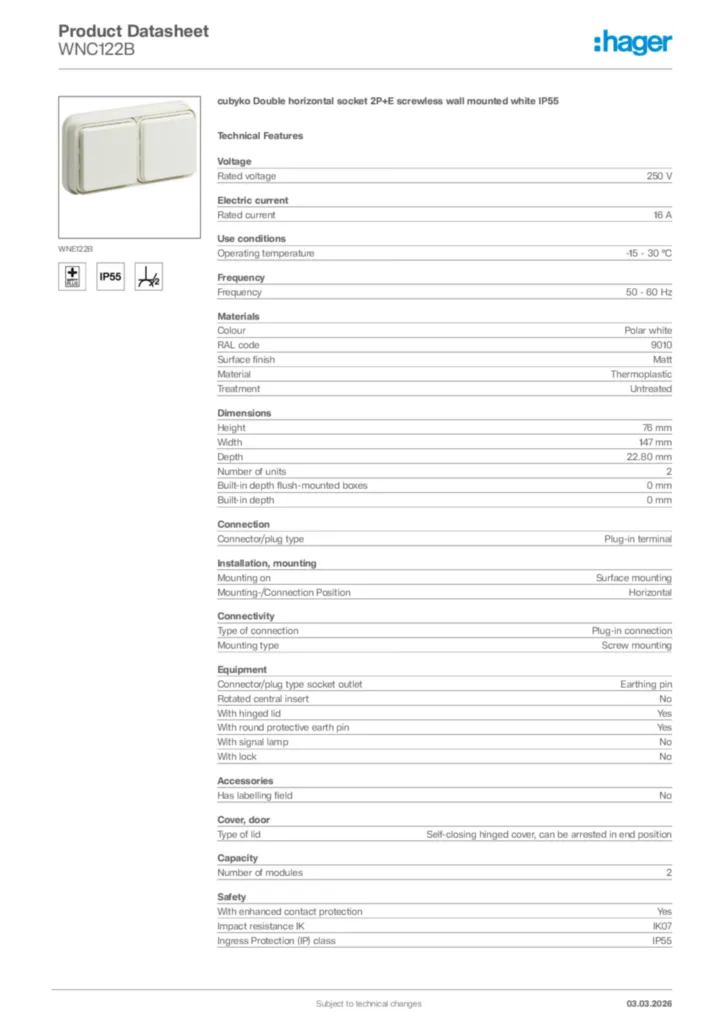

  • Image WNC122B | Hager Africa

    Product Image WNC122B

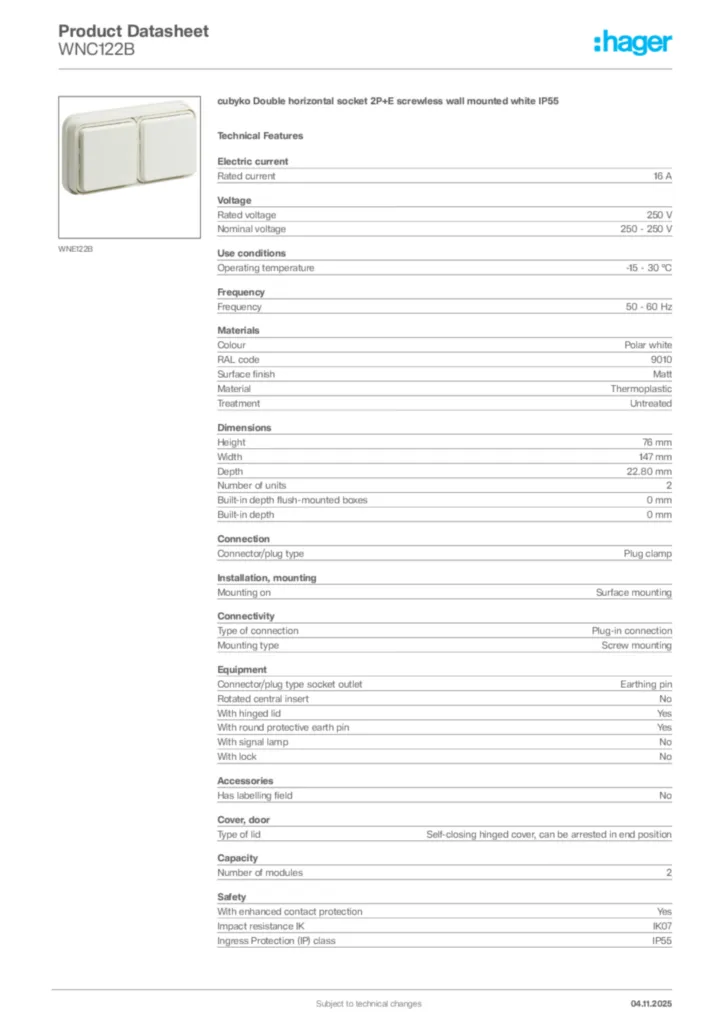

  • Product datasheet

    Image undefined | Hager Africa

    undefined

    PDF

  • Product licence

    Image Product licence en-GB, fr-FR 2013-08-27 | Hager Africa

    Product licence en-GB, fr-FR 2013-08-27

    PDF
    171,71 kB

  • Declaration of conformity

    Image Declaration of conformity International 2021-07-14 | Hager Africa

    Declaration of conformity International 2021-07-14

    PDF
    111,30 kB
