The Hager cubyko Triple horizontal flush adapter in grey (RAL7035) provides a neat 3-gang solution for flush-mounted installations. Made of matt thermoplastic, it offers IK05 impact resistance and achieves IP55 protection with the closed cover—ideal for damp or dusty areas. Designed for horizontal layouts, it neatly hosts switches or sockets in residential or commercial settings.
EAN
3250617174435
Packaging
1 Piece
cubyko 2-gang vertical flush adapter Polar white IP55 (with cover) IK05 WNA403
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Rocker switch 23 products available -
Key switch 2 products available -
Emergency stop complete 4 products available -
Push-switch button 25 products available
Compatible products
-
Referenced by 32 products available
Complete your system
-
WNA040Dble change-over switch insert rocker 2g surf/flushmtd, isolated input W.1, gr LT
-
WNA040BDouble change-over switch insert rocker 2g surf/flush-m, isolated input W.1 wh LT
-
WNA002Illuminated change-over switch insert rocker surf./flush-mtd lens W.1, grey m. LT
-
WNA001BChange-over switch insert rocker surf.-mtd/flush-mtd, W.1, p.white matt plast LT
-
WNA008BOn/off switch insert 2p rocker+impr. 0 + 1 surf.-/flush-mtd, W.1, p.wh.m.plas. LT
-
WNA002BIlluminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNC041cubyko 2-gang 2-way switch wall mounted with light grey IP55
-
WNA003Control change-over switch insert, rocker surf.-/flush-mtd lens W.1 grey matt LT
-
WNA008On/off switch insert 2p rocker+imprint 0 und 1 surf.-/flush-mtd, W.1, grey m. LT
-
WNA041cubyko 2-gg 2WSW +light composable in grey
-
WNA006Change-over switch insert rocker surf.-/flushmtd, lab.field-illuminated, W.1, gr LT
-
WNC003Control change-over switch surface-mtd, lens, W.1, grey/light grey matt LT
-
WNA006B
cubyko 2W SW +label holder compos. white
-
WNA010Intermediate switch insert rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNC001cubyko 2-way switch wall mounted grey IP55
-
WNC001BChange-over switch surface-mtd, W.1, p. white, matt, plastic LT
-
WNA041Bcubyko 2-gg 2WSW +light composable in white
-
WNE001cubyko 2-way switch flush mounted grey IP55
-
WNA001cubyko 2-way switch composable grey IP55
-
WNE040Cubyko LT 2-gang 2-way switch flush mounted grey IP55
-
WNA023cubyko Push-button 1F with control light composable grey IP55
-
WNA0452-way push-button 1O/1F W.1 composable with light grey IP55
-
WNA020BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA023Bcubyko Push-button 1F with control light composable white IP55
-
WNC023cubyko Push-button 1F with control light wall mounted grey IP55
-
WNA045B2-way push-button 1O/1F W.1 composable with light white IP55
-
WNA044Push-button insert, 2 NO contacts rocker 2g surf./flushmtd comm. input , W1, grey
-
WNA044BPush-button insert, NOcontact rocker surf.-mtd/flush-mtd, W.1, p.white m plas LT
-
WNA022BPush-button insert, change-over contact rocker surf/flush-mtd, W.1, p.wh.m.plas. LT
-
WNC025Push-button, change-over contact surface-mtd, W.1, grey/light grey matt LT
-
WNA021BPush-button insert, change-over contact, illuminated surf.-/flushmtd, W.1, p.wh. LT
-
WNC020Push-button, NO contact surface-mtd, W.1, grey/light grey matt LT
-
WNA301BBlind push-b. insert rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA025
cubyko PB 1F w. FPL compos. grey
-
WNA025BPush-button insert, NO contact rocker surface-mtd/flush-mtd, W.1, white matt LT
-
WNC021cubyko Push-button 1O/1F with light wall mounted grey IP55
-
WNE023Bcubyko Push-button 1F with control light flush mounted white IP55
-
WNA020cubyko Push-button 1F composable grey IP55
-
WNE023Cubyko LT push-button 1F with control light flush mounted grey IP55
-
WNC044Cubyko LT double push button NO/NF wall mounted grey IP55
-
WNA037Bcubyko Key switch 3 positions non stable composable white IP55
-
WNC035Key switch impr. surf.-mtd, isolated input , lock-differing lockings, W1
-
WNA300BBlind switch insert 1p rocker 2g+impr.ed symb.arrow surf.-/flushmtd, W.1, p.wh. LT
-
WNA300Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf./flush-mtd, W.1, gre m LT
-
WNC036Key switch f.blinds impr. surf.-mtd, isolated input , lock-differing lockings, W.1
-
WNA105cubyko Socket 2P+E detrompage composable grey IP55
-
WNA160cubyko Schuko Socket composable grey IP55
-
WNE100cubyko Socket 2P+E screwless flush mounted grey IP55
-
WNE100Bcubyko Socket 2P+E screwless flush mounted white IP55
-
WNA160Bcubyko Schuko Socket composable white IP55
-
WNA100Bcubyko Socket 2P+E composable white IP55
-
WNC100cubyko Socket 2P+E screwless wall mounted grey IP55
-
WNA100Soc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, gr
-
WNA104Bcubyko Socket 2P+E with label holder composable white IP55
-
WNA105Bsock.outl. insert w. earth.pin a. hing. cov. SM/flush-mounted, cont.prot., W.1
-
WNC160SCHUKO soc.out. hinged cover surf.-mtd, enhncd contact prot., W.1 ECO, grey matt
Referenced by
-
WNA040
Dble change-over switch insert rocker 2g surf/flushmtd, isolated input W.1, gr LT
-
WNA045
2-way push-button 1O/1F W.1 composable with light grey IP55
-
WNA300
Blind switch insert 1p rocker 2g+impr.ed symb.arrow surf./flush-mtd, W.1, gre m LT
-
WNA002
Illuminated change-over switch insert rocker surf./flush-mtd lens W.1, grey m. LT
-
WNA601Insert of LED signal, red/green lighting surf.-mtd/flush-mtd, W.1, grey matt
-
WNA002B
Illuminated change-over switch insert rocker urf.-/flushmtd, lens, W.1, p.wh. LT
-
WNA037cubyko Key switch 3 positions non stable composable grey IP55
-
WNA033SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
-
WNA044
Push-button insert, 2 NO contacts rocker 2g surf./flushmtd comm. input , W1, grey
-
WNA003
Control change-over switch insert, rocker surf.-/flush-mtd lens W.1 grey matt LT
-
WNA450Adapter for SYSTO devices, W.1, trans.
-
WNA032SAF.EMERGNCY push-b. insert, NCcontact+NO contact surf.-/flush-mtd, W.1, grey m.
-
WNA008
On/off switch insert 2p rocker+imprint 0 und 1 surf.-/flush-mtd, W.1, grey m. LT
-
WNA041
cubyko 2-gg 2WSW +light composable in grey
-
WNA038Insert plug-in opening Ø 22.5 mm, W.1, grey matt
-
WNA006
Change-over switch insert rocker surf.-/flushmtd, lab.field-illuminated, W.1, gr LT
-
WNA036
cubyko Key switch 3 positions composable grey IP55
-
WNA023
cubyko Push-button 1F with control light composable grey IP55
-
WNA010
Intermediate switch insert rocker surface-mtd/flush-mtd, W.1, grey matt LT
-
WNA100
Soc.out. insert earth.pin+hinged cover surf./flushmtd, enhncd contact prot., W1, gr
Technical properties
Capacity
-
Number of gangs3
Materials
-
ColourGrey
-
RAL code7035
-
Surface finishMatt
-
MaterialThermoplastic
-
Contains recycled material (% of total plastic weight)0
-
TreatmentUntreated
Dimensions
-
Height224 mm
-
Width83 mm
-
Depth38 mm
Accessories
-
Has labelling fieldNo
Installation, mounting
-
Mounting onFlush mounting
-
Mounting-/Connection PositionHorizontal
Safety
-
Ingress Protection (IP) classIP20
-
Usable in higher IP classIP55 with closed cover
-
Impact resistance IKIK05
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

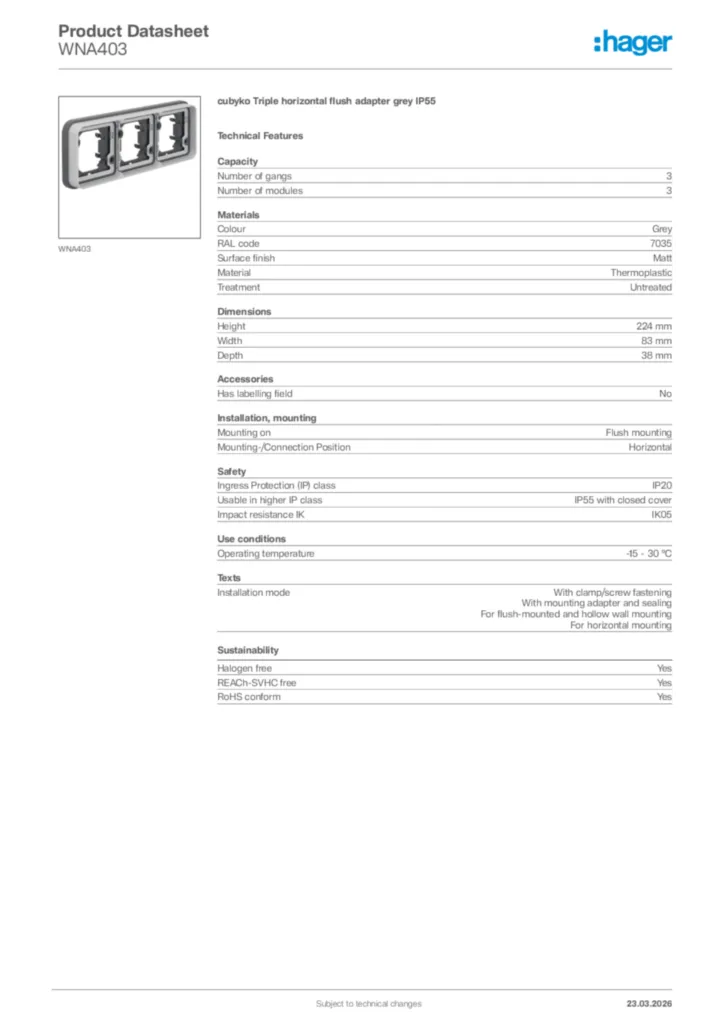

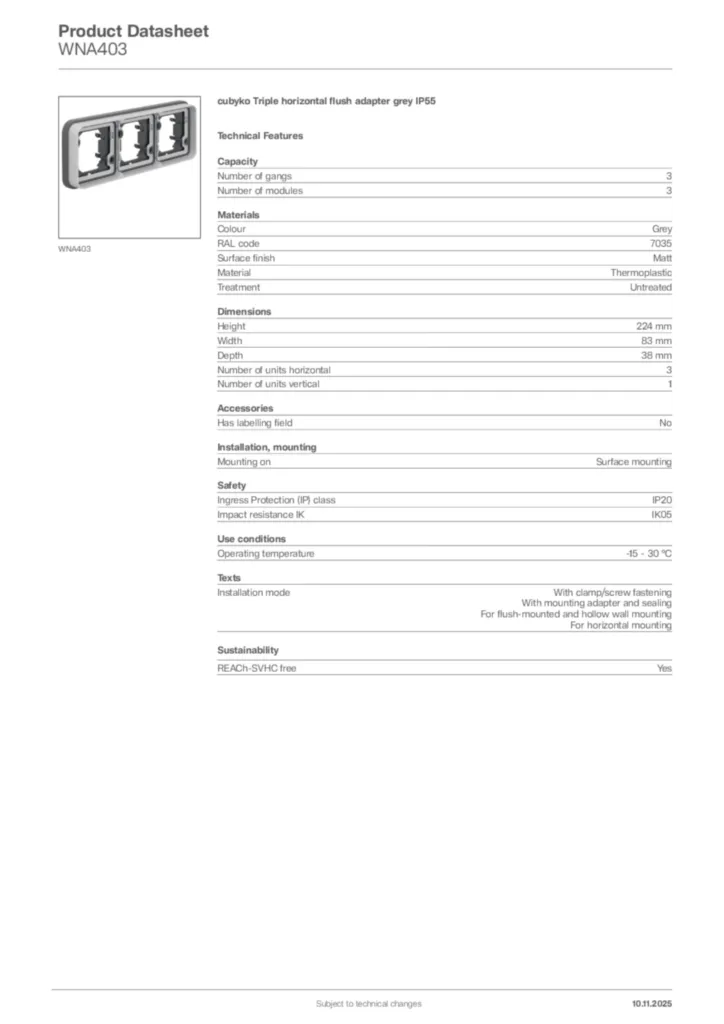

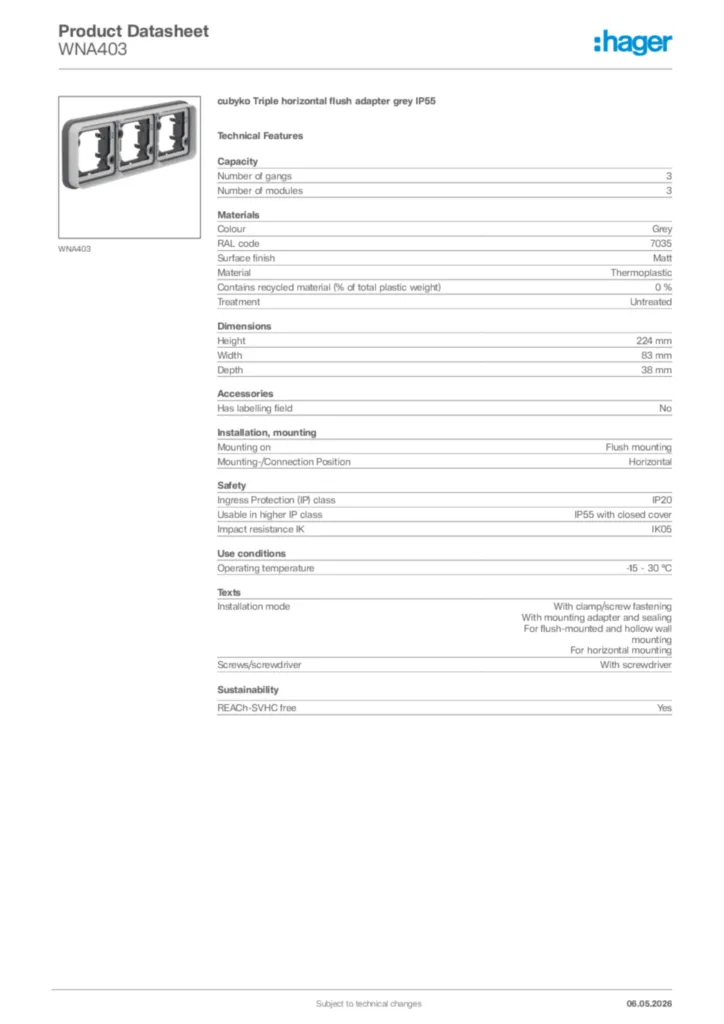

Product datasheet
Hager Product data sheet WNA403
cubyko Triple horizontal flush adapter grey IP55
PDF -
Tools
Tools de-DE 2025-11-13
URL -
Declaration of conformity
Declaration of conformity International 2022-01-10
PDF79,53 kB
Declaration of conformity en-GB 2025-12-05
PDF256,56 kB
Deklaracja zgodności UE
W.1 Ramki do montażu podtynkowego; WNA…
PDF302,25 kB
