The Hager Cubyko LT single push-button with label holder is a flush-mounted control for lighting or automation, delivering IP55 protection and IK07 impact resistance. Its pure white satin PP finish blends discreetly. Quickconnect terminals speed installation. Size 75×75 mm with 40 mm built-in depth; 12 mm label field for clear identification. Compatible with the Cubyko system.

EAN

3250617173254

Packaging

1 Piece

cubyko Push-button 1-gang IP55 IK07 flush-mounted with label holder, grey WNE025B

Technical properties
Environmental value
Documentations
More products

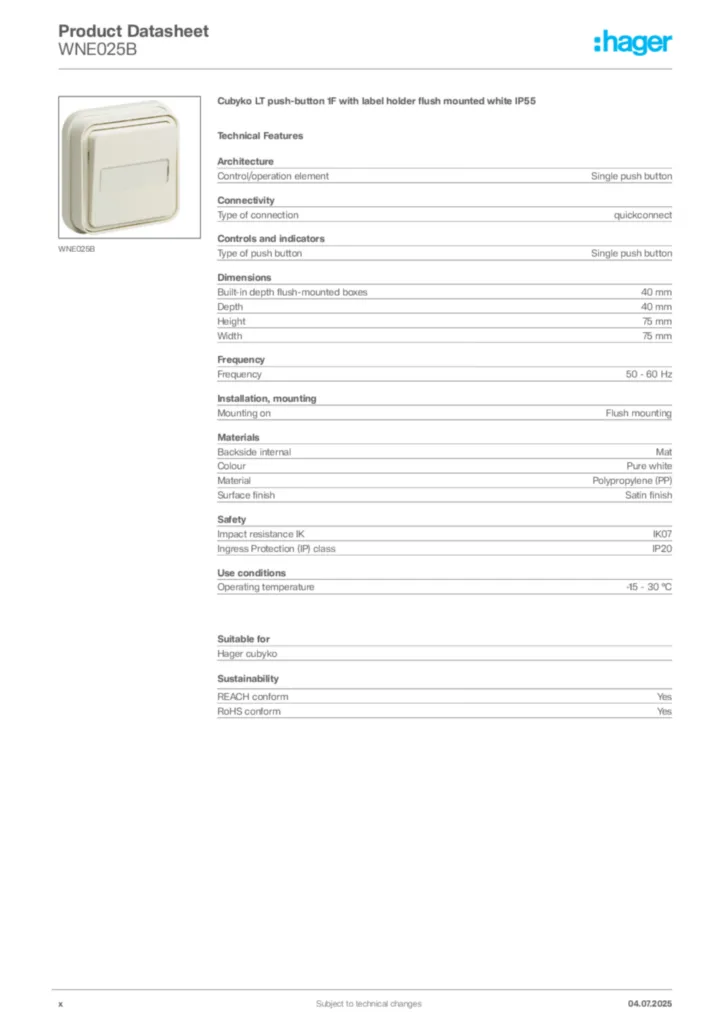

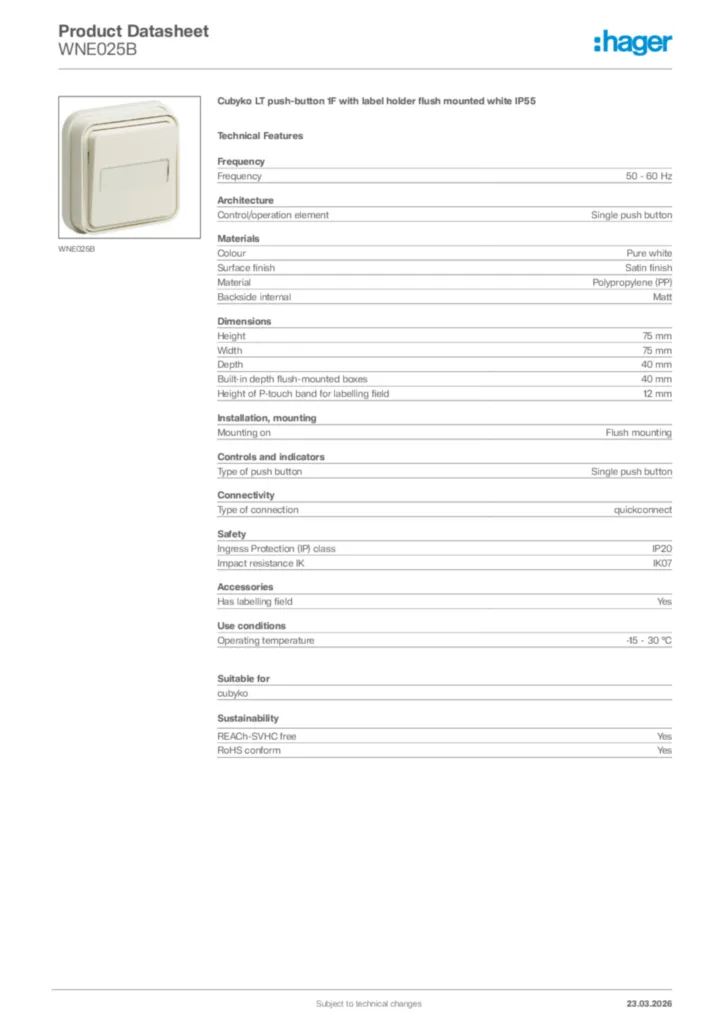

Download the data sheet

Technical properties

Frequency

50 - 60 Hz

Control/operation element

Single push button

Colour

Pure white
Surface finish

Satin finish
Material

Polypropylene (PP)
Backside internal

Matt

Height

75 mm
Width

75 mm
Depth

40 mm
Built-in depth flush-mounted boxes

40 mm
Height of P-touch band for labelling field

12 mm

Mounting on

Flush mounting

Type of push button

Single push button

Type of connection

quickconnect

Ingress Protection (IP) class

IP20
Impact resistance IK

IK07

Has labelling field

Yes

Related Systems

cubyko

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
