JK216BG

250A 16 Way TPN Board Glazed Door
EAN
5015652250463
Quantity
1
Trade price*
474.17£ /prt.*
  • Architecture
    • Fixing mode
      • surface-mounting
  • Main electrical features
    • Rated current
      • 250 A
  • Dimensions
    • Depth of installed product
      • 165.5 mm
    • Height of installed product
      • 1250 mm
    • Width of installed product
      • 465 mm
  • Cover, door
    • Type of door closing
      • Quarter turn lock
    • Door locking
      • with key
    • Interlockable
      • No
  • Materials
    • Colour
    • RAL colour number
      • 7035
    • Enclosure material
    • Material
      • Steel
    • Surface appearance
    • Type of surface treatment
  • Equipment
    • Can be accessorized
      • No
  • Standards
    • European directive WEEE
      • concerned
  • Safety
    • Protection index IP
      • IP30
    • Protection class
      • Protection class III
Documentations

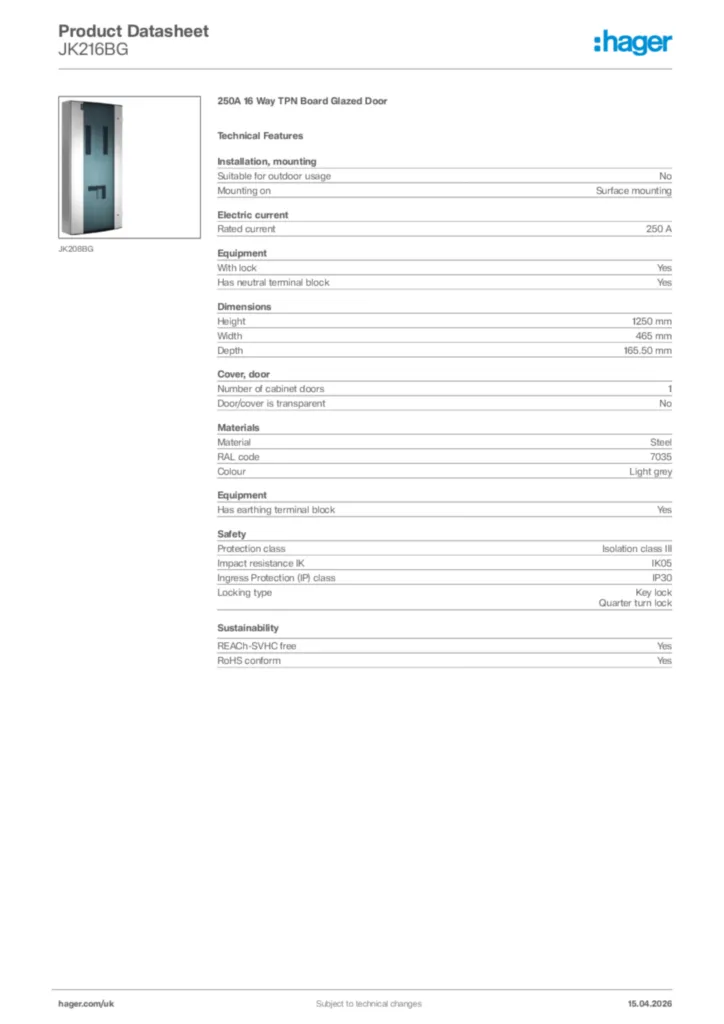

Product data sheets for JK216BG 55 KBpdfDownload
Product data sheets for JK216BG 104 KBpdfDownload
Product data sheets for JK216BG 302 KBpdfDownload
Commercial Distribution Catalogue 13461 kbpdfDownload
More documentation
Tools and software
BIM models for JK216BG 1 MB zipDownload
More Tools and software
