    • Home
    • Catalogue
    • Circuit Protec­tion & Modular Switches
    • Circuit Protec­tion
    • Surge Protec­tion Device (SPD)
    • JKD202SPD
    EAN-Nr.
    5015652606567
    Packaging
    1 piece
    • Surge Protec­tion Device (SPD)

    250A Dual Meter & TRI Surge Protection Kit Type II JKD202SPD

    Price
    £577.10
    / piece *
    £577.10
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    250A Dual Meter & TRI Surge Protection Kit Type II

    JKD202SPD

    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Technical characteristics

    Capa­city
    • Number of modules
      2.7
    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 415 V
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      350 V
    • Voltage protec­tion level Up according to IEC 61643-1
      1.5 kV
    • Voltage protec­tion level Up N-PE IEC 61643-11
      1,500 V
    • Voltage protec­tion level Up L-PE
      1.9 kV
    • Voltage level Up L-N/PEN IEC 61643-11
      1.5 kV
    • Type voltage supply
      AC
    • Over­voltage category according to IEC 60947-1
      3
    • Nominal voltage
      240 - 415 V AC ± 10%
    Elec­tric current
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      315 A
    • Max. discharge current (Imax)
      40 kA
    • Max. discharge current (Imax) L-N (PEN)
      40 kA
    • Max. discharge current (Imax) N-PE
      40 kA
    • Nominal discharge current In
      20 kA
    • Nominal discharge current In 8 - 20 µs L-N (PEN)
      20 kA
    • Nominal discharge current In 8 - 20 µs N-PE
      20 kA
    • Follow current inter­rupting rating
      0.1 kA
    • Residual current Ipe
      ≤ 1 µA
    Dimen­sions
    • Height
      100 mm
    • Width
      130 mm
    • Depth
      332 mm
    • Strip­ping length
      16 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Protec­tion class
      Isol­a­tion class II
    • TOV beha­viour at UT (N-PE)
      1200 V AC (200 ms / with­stand mode)
    • Mode of protec­tion
      L-N, L-PE, N-PE
    • Current trip­ping factor k
      1.6
    • TOV beha­viour at UT (L-N)
      460 V AC (120 min / safe failure mode)
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Ther­mo­plastic
    Network config­ur­a­tion
    • Network type
      TN-S, TT
    • Network TN
      No
    • Network TN-C
      No
    • Network DC
      No
    • Network IT
      No
    • Network TT
      Yes
    • Network TN-C-S
      No
    • Network TN-S
      Yes
    Equip­ment
    • With remote signalling contact
      No
    • Nominal load current IL
      40 A
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      2.5 - 16 mm²
    • Cross-sec­tion rigid conductor
      2.5 - 25 mm²
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      4.5 - 4.5 Nm
    • Suit­able for indoor usage
      Yes
    Archi­tec­ture
    • Type of pole
      3P+N
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      No
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    Fuse
    • Fuse char­ac­ter­istics
      gG

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration JKD202SPD
    PDF
    RoHS report JKD202SPD
    PDF

    Downloads

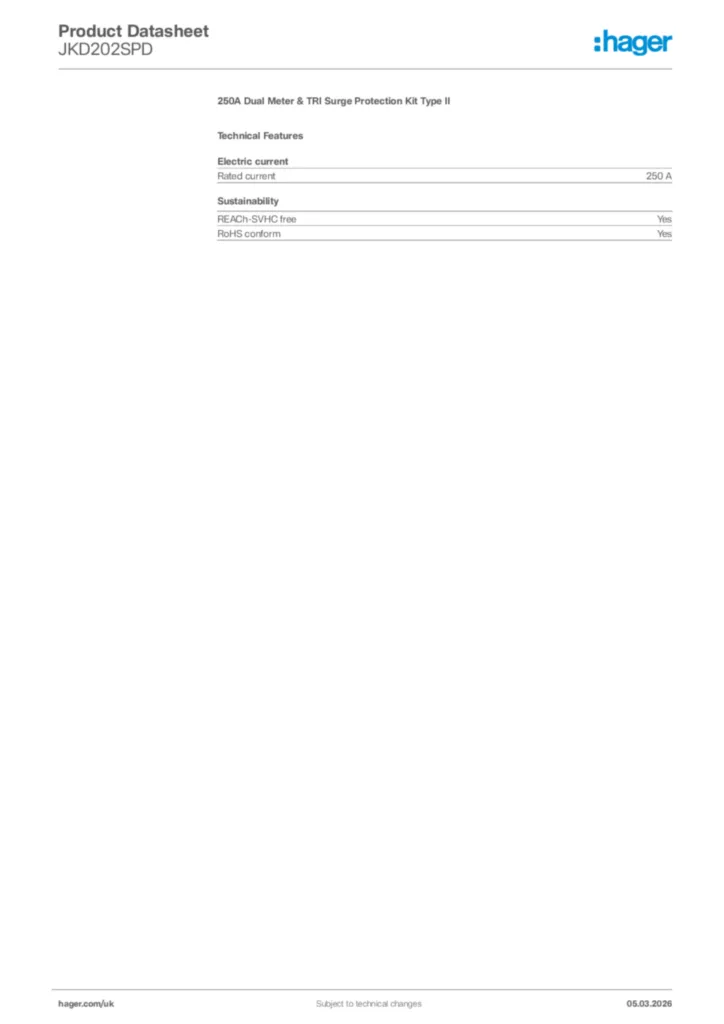

    • Product datasheet

      Image Hager Product data sheet JKD202SPD | Hager

      Hager Product data sheet JKD202SPD

      250A Dual Meter & TRI Surge Protection Kit Type II

      PDF

    • Installation manual

      Image Installation manual en-GB 2019-03-13 | Hager

      Installation manual en-GB 2019-03-13

      Installation manual en-GB 2023-03-16

      PDF
      521,04 kB

    • Product data sheet

      Image Product data sheet en-GB 2020-01-10 | Hager

      Product data sheet en-GB 2020-01-10

      PDF
      1,06 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-04-25

      PDF
      223,43 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-03-01

      PDF
      216,78 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-04-25

      PDF
      217,32 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      226,05 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      158,18 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      219,98 kB
      Image Declaration of conformity International 2023-12-20 | Hager

      Declaration of conformity International 2023-12-20

      PDF
      163,96 kB
      Image Declaration of conformity International 2024-01-18 | Hager

      Declaration of conformity International 2024-01-18

      PDF
      247,14 kB
      Image Declaration of conformity International 2024-01-18 | Hager

      Declaration of conformity International 2024-01-18

      PDF
      253,21 kB
      Image Declaration of conformity en-GB 2026-07-22 | Hager

      Declaration of conformity en-GB 2026-07-22

      PDF
      351,38 kB
