250A Surge Protection Kit Type II JK202SPD

Name: JK202SPD
Brand: Hager
SKU: JK202SPD
Price: 577.1 GBP

Price

£577.10

/ piece *

Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Technical characteristics

Number of modules

2.7

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

350 V
Voltage protection level Up according to IEC 61643-1

1.5 kV
Voltage protection level Up N-PE IEC 61643-11

1,500 V
Voltage protection level Up L-N (PEN)

1.5 kV
Voltage protection level Up L-PE

1.9 kV
Type voltage supply

AC
Reference test voltage Utest AC

264 V
Overvoltage category according to IEC 60947-1

3
Nominal voltage

240 - 415 V AC ± 10%

Max. overcurrent protection device, parallel connection (fuse)

315 A
Max. discharge current (Imax)

40 kA
Max. discharge current (Imax) L-N (PEN)

40 kA
Max. discharge current (Imax) N-PE

40 kA
Nominal discharge current In

20 kA
Nominal discharge current In 8 - 20 µs L-N (PEN)

20 kA
Follow current interrupting rating

0.1 kA
Residual current Ipe

≤ 1 µA

Height

80 mm
Width

55 mm
Depth

110 mm
Stripping length

16 mm

Ingress Protection (IP) class

IP20
Protection class

Isolation class II
TOV behaviour at UT (N-PE)

1200 V AC (200 ms / withstand mode)
Mode of protection

L-N, L-PE, N-PE
Current tripping factor k

1.6
TOV behaviour at UT (L-N)

460 V AC (120 min / safe failure mode)

Operating temperature

-40 - 80 °C
Air humidity protection

5 - 95%
Storage/transport temperature

-40 - 80 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2
Max. altitude

2,000 m

Product colour

Light grey
RAL code

7035
Material

Thermoplastic

Network type

TN-S, TT
Network TN

No
Network TN-C

No
Network DC

No
Network IT

No
Network TT

Yes
Network TN-C-S

No
Network TN-S

Yes

With remote signalling contact

No
Nominal load current IL

40 A

Cross-section of input and output with screws, for flexible conductors

1.5 -25 mm²
Cross-section of input and output with screws, for massive conductors

1.5 - 35 mm²
Cross-section flexible conductor

2.5 - 16 mm²
Cross-section rigid conductor

2.5 - 25 mm²
Number of connections

1

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

4.5 - 4.5 Nm
Suitable for indoor usage

Yes

Type of pole

3P+N

With integrated protection fuse

No

Mounting type

DIN rail
Type of connection

Screw connection

Disconnector indication

Optical

Fuse characteristics

gG

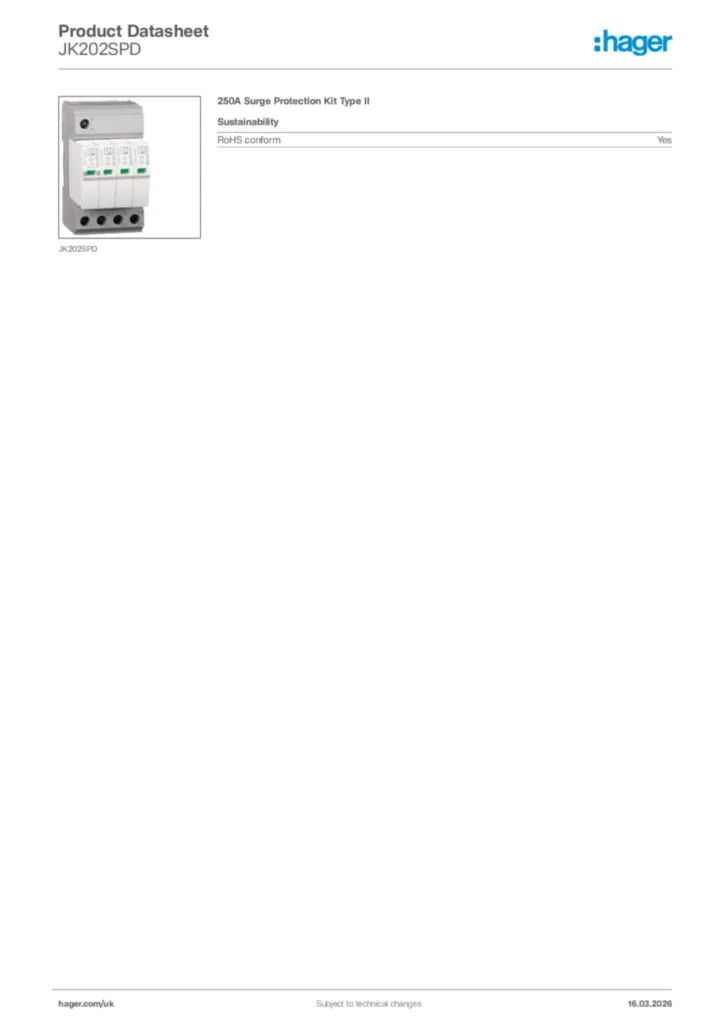

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
