Combined SPD T1+T2 1P Iimp 25kA Up 1.5kV with remote contact integrated fuse

SPA180

SPA180 - Combined SPD T1+T2 1P Iimp 25kA Up 1.5kV with remote contact integrated fuse
  • Circuit Protec­tion & Modular Switches

Combined SPD T1+T2 1P Iimp 25kA Up 1.5kV with remote contact integrated fuse SPA180

EAN-Nr.
3250615515056
Packaging
1 piece
Price
£662.49
/ piece *
£662.49
/ piece *

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical characteristics
  • Environmental value
  • Documentations
  • More products

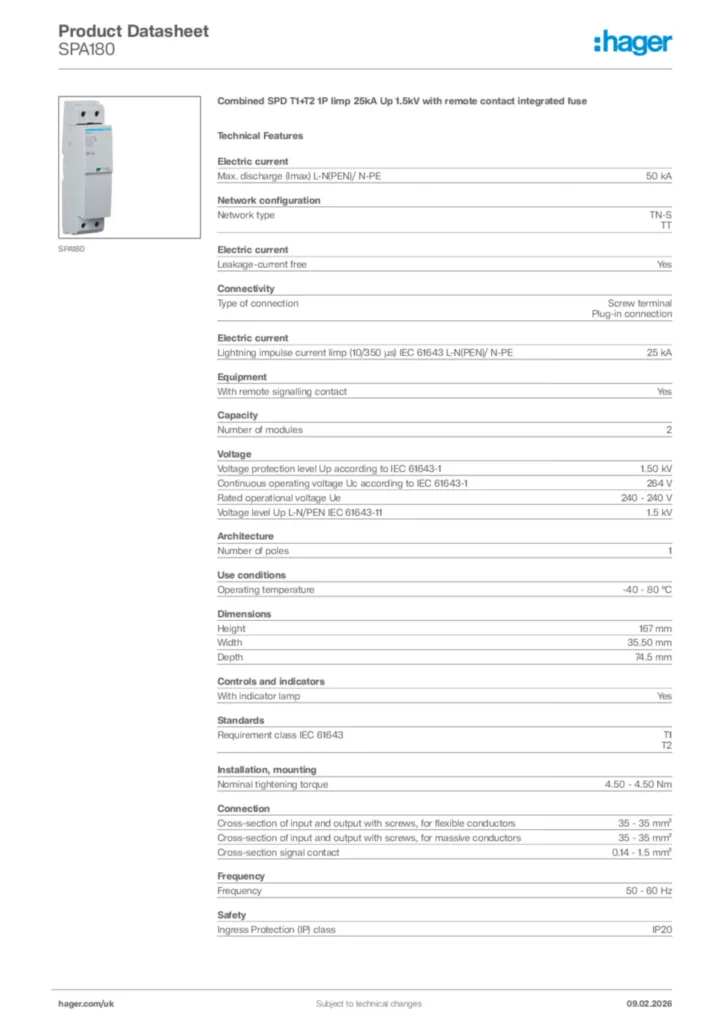

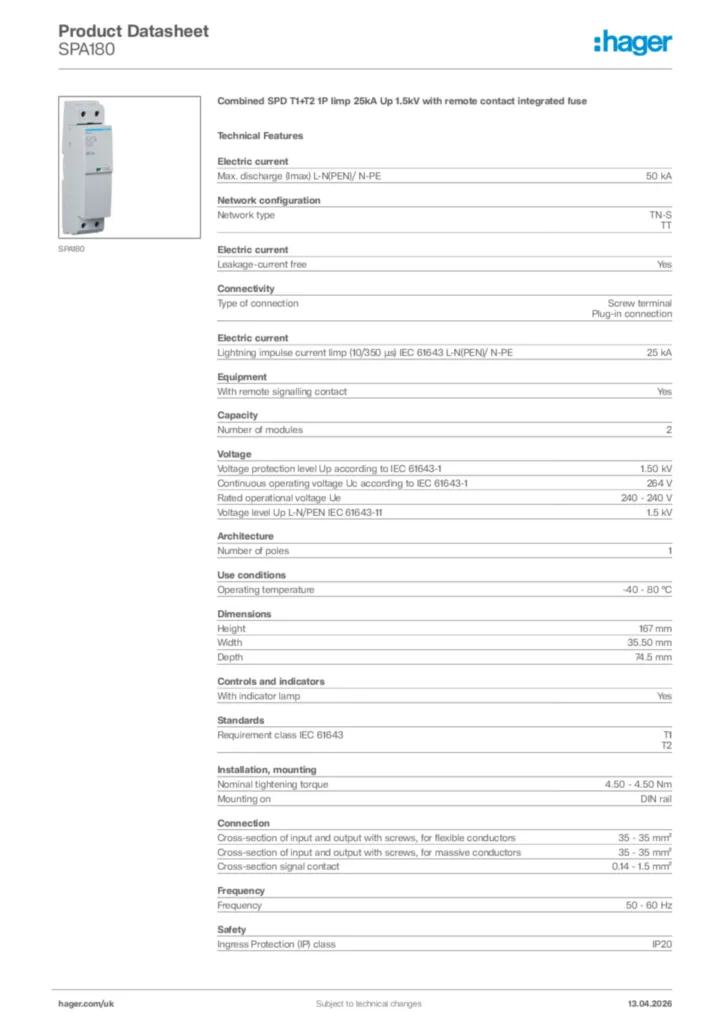

Download the sheet

Complete your system

Optional accessories

  • Accessor­ies/s­pare parts for light­ning current arrester for power supply systems 1 products available

Complete your system

  • Accessor­ies/s­pare parts for light­ning current arrester for power supply systems
  • KBN381

    Insulated busbar 35mm² 3P+N horizontal 90° angle for SPA180N
    £79.89  / piece*
    Add to a list
    Add to a list

Technical characteristics

Elec­tric current
  • Max. discharge (Imax) L-N(PEN)/ N-PE
    50 kA
  • Light­ning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE
    25 kA
Network config­ur­a­tion
  • Network type
    TN-S, TT
Connectivity
  • Type of connec­tion
    Screw terminal, Plug-in connec­tion
Equip­ment
  • With remote signalling contact
    Yes
Capa­city
  • Number of modules
    2
Voltage
  • Voltage protec­tion level Up according to IEC 61643-1
    1.50 kV
  • Continuous oper­ating voltage Uc according to IEC 61643-1
    264 V
Archi­tec­ture
  • Number of poles
    1
Use condi­tions
  • Oper­ating temper­ature
    -40 - 80 °C
Dimen­sions
  • Height
    167 mm
  • Width
    35.50 mm
  • Depth
    74.5 mm
Controls and indic­ators
  • With indic­ator lamp
    Yes
Stand­ards
  • Require­ment class IEC 61643
    T1, T2
Install­a­tion, mounting
  • Nominal tight­ening torque
    4.50 - 4.50 Nm
Connec­tion
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    35 - 35 mm²
  • Cross-sec­tion of input and output with screws, for massive conductors
    35 - 35 mm²
  • Cross-sec­tion signal contact
    0.14 - 1.5 mm²

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

PEP_SPA180_HAGER_HAGE-00662-V01-01_EN
PDF
329,18 kB
REACH declaration SPA180 (english)
PDF
103,10 kB
RoHS declaration SPA180 (english)
PDF
103,59 kB

Downloads

  • Product image

    Image SPA180 | Hager

    Product Image SPA180

  • Installation manual

    Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2020-09-25 | Hager

    Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2020-09-25

    PDF
    793,66 kB
