    EAN-Nr.
    3250615514967
    Packaging
    1 piece
    • Surge Protec­tion Device (SPD)

    SPD T2 2P pluggable 40kA photovoltaic SPV340

    Price
    £354.69
    / piece *
    £354.69
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    SPD T2 2P pluggable 40kA photovoltaic

    SPV340

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems 1 products available

    Complete your system

    • Accessor­ies/s­pare parts for surge protec­tion power supply systems
    • SPV040

      Cartridge T2 1P photovoltaic +/- for SPV340
      £423.97  / piece*

    Technical characteristics

    Capa­city
    • Number of modules
      3
    Voltage
    • Voltage protec­tion level Up according to IEC 61643-1
      3.70 kV
    • Mode of protec­tion design
      Voltage-lim­iting type
    • Voltage level Up L-N/PEN IEC 61643-11
      3,700 V
    • Type voltage supply
      DC
    • Over­voltage category according to IEC 60947-1
      3
    Elec­tric current
    • Max. discharge current (Imax)
      40 kA
    • Max. discharge current (Imax) N-PE
      40 kA
    • Nominal discharge current In
      15 kA
    Dimen­sions
    • Height
      89.80 mm
    • Width
      53.40 mm
    • Depth
      56.1 mm
    • Strip­ping length
      16 mm
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    • Mode of protec­tion
      L-PE
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Air humidity protec­tion
      5 - 95%
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Max. alti­tude
      2,000 m
    Mater­ials
    • Product colour
      Light grey
    • RAL code
      7035
    • Material
      Poly­amide (PA), Poly­ester
    Network config­ur­a­tion
    • Network type
      DC
    • Network TN
      No
    • Network TN-C
      No
    • Network DC
      Yes
    • Network IT
      No
    • Network TT
      No
    • Network TN-C-S
      Yes
    • Network TN-S
      No
    Equip­ment
    • With remote signalling contact
      No
    • Nominal load current IL
      80 A
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      1.5 - 25 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      1.5 - 35 mm²
    • Cross-sec­tion flex­ible conductor
      1.5 - 25 mm²
    • Cross-sec­tion rigid conductor
      1.5 - 35 mm²
    • Connect­or/plug type
      Screw terminal
    • Number of connec­tions
      1
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Install­a­tion, mounting
    • Nominal tight­ening torque
      3 - 4.5 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Hori­zontal
    • Suit­able for indoor usage
      Yes
    Archi­tec­ture
    • Type of pole
      2P
    Config­ur­a­tion
    • With integ­rated protec­tion fuse
      No
    Connectivity
    • Mounting type
      DIN rail
    • Type of connec­tion
      Screw connec­tion
    Controls and indic­ators
    • With indic­ator lamp
      Yes
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    • Suit­able for addi­tional system config­ur­a­tion
      Yes
    • End of life mode
      OCM (open circuit mode)
    Internal use only
    • Number of half modules of 17,5 mm
      6
    Specific iden­ti­ficaton attrib­utes for Protec­tion
    • Filter Type product
      SPD

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    REACH declaration SPV340
    PDF
    RoHS report SPV340
    PDF

    Downloads

    • Product image

      Image SPV340 | Hager

      Product Image SPV340

    • Product datasheet

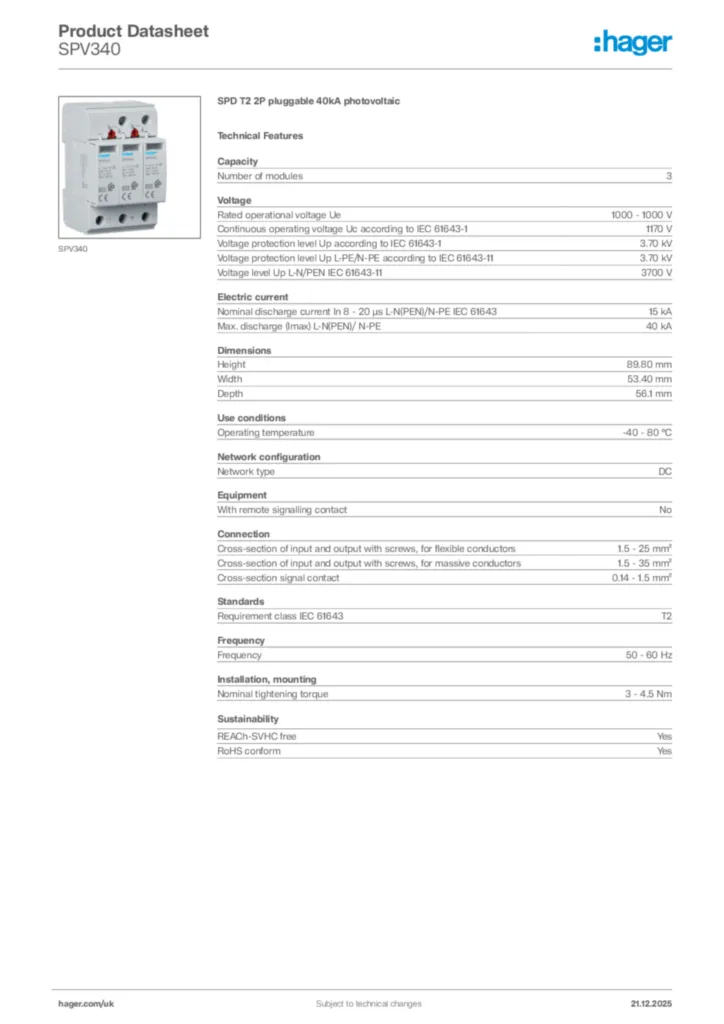

      Image Hager Product data sheet SPV340 | Hager

      Hager Product data sheet SPV340

      SPD T2 2P pluggable 40kA photovoltaic

      PDF

    • Installation manual

      Image Installation manual International 2022-06-14 | Hager

      Installation manual International 2022-06-14

      PDF
      556,21 kB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-15 | Hager

      Declaration of conformity en-US 2026-07-15

      PDF
      346,66 kB
