    EAN-Nr.
    3250615515063
    Packaging
    1 piece
    • Surge Protec­tion Device (SPD)

    Combined SPD T1+T2 1P N-PE Iimp 100kA Uc 1.5KV remote contact integrated fuse SPA180N

    Price
    £243.83
    / piece *
    £243.83
    / piece *
    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Combined SPD T1+T2 1P N-PE Iimp 100kA Uc 1.5KV remote contact integrated fuse

    SPA180N

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for light­ning current arrester for power supply systems 1 products available

    Complete your system

    • Accessor­ies/s­pare parts for light­ning current arrester for power supply systems
    • KBN381

      Insulated busbar 35mm² 3P+N horizontal 90° angle for SPA180N
      £83.88  / piece*

    Technical characteristics

    Elec­tric current
    • Light­ning impulse current Iimp (10/350 µs) IEC 61643 L-N(PEN)/ N-PE
      100 kA
    • Max. discharge (Imax) L-N(PEN)/ N-PE
      100 kA
    Network config­ur­a­tion
    • Network type
      TT, TN-S
    Equip­ment
    • With remote signalling contact
      Yes
    Stand­ards
    • Surge protec­tion device type
      T1, T2
    Capa­city
    • Number of modules
      2
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    Dimen­sions
    • Height
      95.20 mm
    • Width
      35.60 mm
    • Depth
      67 mm
    Controls and indic­ators
    • Indic­ator lamp
      Optic
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      2.5 - 35 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      2.5 - 35 mm²
    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 240 V
    • Voltage protec­tion level Up L-PE/N-PE
      1.50 kV
    Frequency
    • Frequency
      50 - 60 Hz

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Downloads

    • Product image

      Image SPA180N | Hager

      Product Image SPA180N

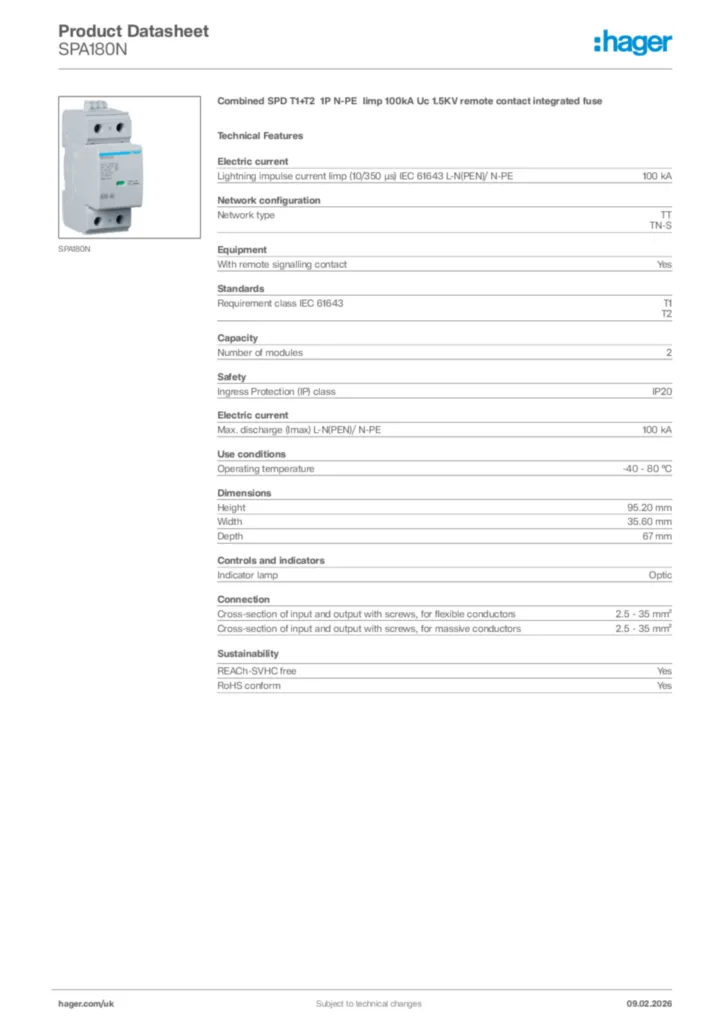

    • Product datasheet

      Image Hager Product data sheet SPA180N | Hager

      Hager Product data sheet SPA180N

      Combined SPD T1+T2 1P N-PE Iimp 100kA Uc 1.5KV remote contact integrated fuse

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2020-09-25 | Hager

      Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2020-09-25

      PDF
      793,66 kB

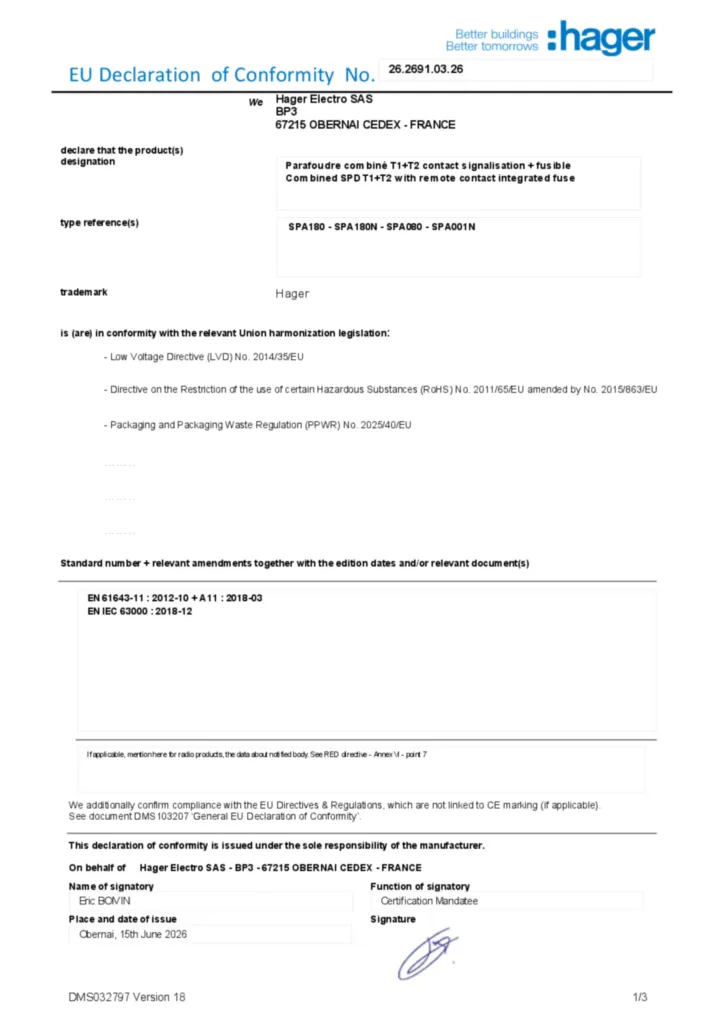

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-15 | Hager

      Declaration of conformity en-US 2026-07-15

      PDF
      261,65 kB
