Cartridge1P T1+T2 N-PE SPA9xxx SPA090N
EAN-Nr.
3250615515155
Packaging
1 piece
Price
£109.80
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 2 products available
Referenced by
-
SPA931SPD T1+T2 4P TN-S TT 50kA Up 1, 2kV + Remote contact
£669.73 / piece* -
VME01SPDConsumer Unit Surge Protection Kit Type 1+2
£297.68 / piece*
Technical characteristics
Electric current
-
Max. discharge (Imax) L-N(PEN)/ N-PE50 kA
Network configuration
-
Network typeTN-S, TT
Connectivity
-
Type of connectionPlug-in connection
Equipment
-
With remote signalling contactYes
Capacity
-
Number of modules1
Voltage
-
Voltage protection level Up according to IEC 61643-11.70 kV
-
Continuous operating voltage Uc according to IEC 61643-1264 V
-
Rated operational voltage Ue240 - 415 V
-
Voltage level Up L-N/PEN IEC 61643-111.2 kV
Architecture
-
Number of poles1
Use conditions
-
Operating temperature-40 - 80 °C
Dimensions
-
Height47.3 mm
-
Width17.5 mm
-
Depth67.3 mm
Controls and indicators
-
With indicator lampYes
Standards
-
Requirement class IEC 61643T1, T2
Frequency
-
Frequency50 - 60 Hz
Safety
-
Ingress Protection (IP) classIP20
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

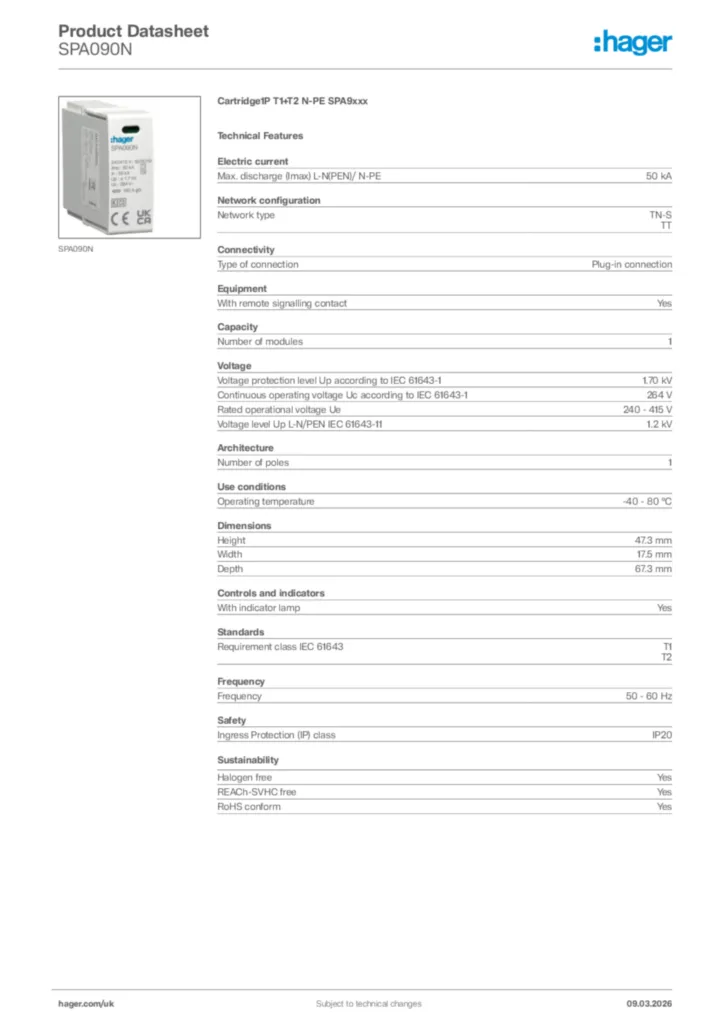

Hager Product data sheet SPA090N
Cartridge1P T1+T2 N-PE SPA9xxx
PDF -
Installation manual
Installation manual en-GB, fr-FR, de-DE, pl-PL 2021-05-18
PDF810,00 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-10-25
PDF394,06 kB
Declaration
Declaration of conformity International 2022-10-26
PDF403,64 kB
Declaration
Declaration of conformity International 2023-02-28
PDF377,30 kB
Declaration
Declaration of conformity International 2023-02-28
PDF192,00 kB
Declaration of conformity International 2023-12-20
PDF375,42 kB
Declaration of conformity International 2023-12-20
PDF381,49 kB
