Multifunction measurement device DIN rail 1x3-Phase RS485 JKM01
Price
£432.16
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 35 products available
Referenced by
-
JK118BG125A 18 Way TPN Board Glazed Door
£631.60 / piece* -
JK104B125A 4 Way TPN Board Plain Door
£262.00 / piece* -
JK104BG125A 4 Way TPN Board Glazed Door
£273.59 / piece* -
JK106B125A 6 Way TPN Board Plain Door
£294.48 / piece* -
JK106BG125A 6 Way TPN Board Glazed Door
£304.21 / piece* -
JK108B
125A 8 Way TPN Board Plain Door
£332.14 / piece* -
JK108BG125A 8 Way TPN Board Glazed Door
£342.34 / piece* -
JK112B
125A 12 Way TPN Board Plain Door
£398.85 / piece* -
JK112BG125A 12 Way TPN Board Glazed Door
£408.58 / piece* -
JK116B125A 16 Way TPN Board Plain door
£560.84 / piece* -
JK116BG125A 16 Way TPN Board Glazed Door
£569.46 / piece* -
JK118B
125A 18 Way TPN Board Plain Door
£598.06 / piece* -
JK124B125A 24 Way TPN Board Plain Door
£722.68 / piece* -
JK124BG125A 24 Way TPN Board Glazed Door
£790.80 / piece* -
JK208BG250A 8 Way TPN Board Glazed Door
£403.65 / piece* -
JK212B250A 12 Way TPN Board Plain Door
£456.05 / piece* -
JK212BG
250A 12 Way TPN Board Glazed Door
£466.94 / piece* -
JK216B
250A 16 Way TPN Board Plain Door
£653.33 / piece* -
JK224BG
250A 24 Way TPN Board Glazed Door
£1,057.46 / piece* -
JK216BG
250A 16 Way TPN Board Glazed Door
£664.19 / piece*
Technical characteristics
Architecture
-
Bus systemMODBUS
-
Type of pole4P
Capacity
-
Number of modules4
Dimensions
-
Height90 mm
-
Width70 mm
-
Depth62 mm
Equipment
-
Type of pulse generatorElectrical
Compatibility
-
Suitable forPurchase
Connection
-
Connector/plug type Bus systemPulse, RS485
Installation, mounting
-
Mounting onDIN rail
Measurement
-
Measuring systemMeasurement transformer
-
Type of measuring instrumentElectronic
-
Measurement range voltage Ph-N60 - 300 V
-
Measurement range voltage Ph-Ph104 - 520 V
-
Frequency measuring range45 - 65 Hz
Functions
-
Accuracy classB
-
Tariff typeOne-tariff
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-20 - 75 °C
Frequency
-
Frequency45 - 65 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

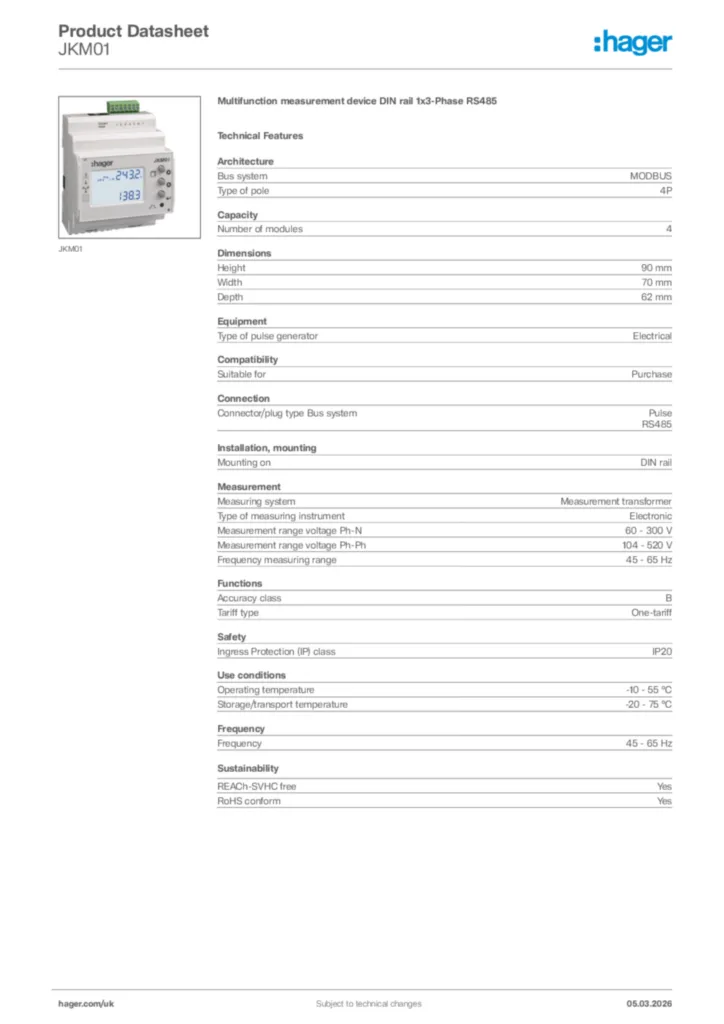

Hager Product data sheet JKM01
Multifunction measurement device DIN rail 1x3-Phase RS485
PDF -
Installation manual
Installation manual en-GB 2018-07-12
PDF7,22 MB -
Product attachment
Product attachment International 2020-01-01
XLS44,50 kB -
Product data sheet
UK_MD_TDS_JKM01
Product data sheet en-GB 2025-05-19
PDF1,14 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-29
PDF276,98 kB
Declaration
Declaration of conformity International 2021-09-29
PDF269,32 kB
Declaration of conformity International 2023-12-20
PDF302,50 kB
Declaration of conformity International 2023-12-20
PDF296,11 kB
