    Multifunction measurement device DIN rail 2x3-Phase RS485 JKM02

    Price
    £628.09
    / piece *
    £628.09
    / piece *
    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Multifunction measurement device DIN rail 2x3-Phase RS485

    JKM02

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Archi­tec­ture
    • Bus system
      MODBUS
    • Type of pole
      4P
    Capa­city
    • Number of modules
      4
    Dimen­sions
    • Height
      90 mm
    • Width
      70 mm
    • Depth
      62 mm
    Equip­ment
    • Type of pulse gener­ator
      Elec­trical
    Compat­ib­ility
    • Suit­able for
      Purchase
    Connec­tion
    • Connect­or/plug type Bus system
      Pulse, RS485
    Install­a­tion, mounting
    • Mounting on
      DIN rail
    Meas­ure­ment
    • Meas­uring system
      Meas­ure­ment trans­former
    • Type of meas­uring instru­ment
      Elec­tronic
    • Meas­ure­ment range voltage Ph-N
      60 - 300 V
    • Meas­ure­ment range voltage Ph-Ph
      104 - 520 V
    • Frequency meas­uring range
      45 - 65 Hz
    Func­tions
    • Accuracy class
      B
    • Tariff type
      One-tariff
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 55 °C
    • Stor­age/trans­port temper­ature
      -20 - 75 °C
    Frequency
    • Frequency
      45 - 65 Hz
    Data act compli­ance
    • Is gener­ating data
      Yes
    • Data types
      Alarms, Elec­trical meas­ure­ment, Detailed elec­trical meas­ure­ment
    • Data formats
      MODBUS (RTU)
    • Estim­ated daily data volume
      10 KB - 100 KB
    • Real time data gener­a­tion
      Yes
    • Data stored on device
      No

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    REACH declaration JKM02
    PDF
    RoHS report JKM02
    PDF

    Downloads

    • Product image

      Image JKM02 | Hager UK

      Product Image JKM02

    • GeneratedProductDatasheet

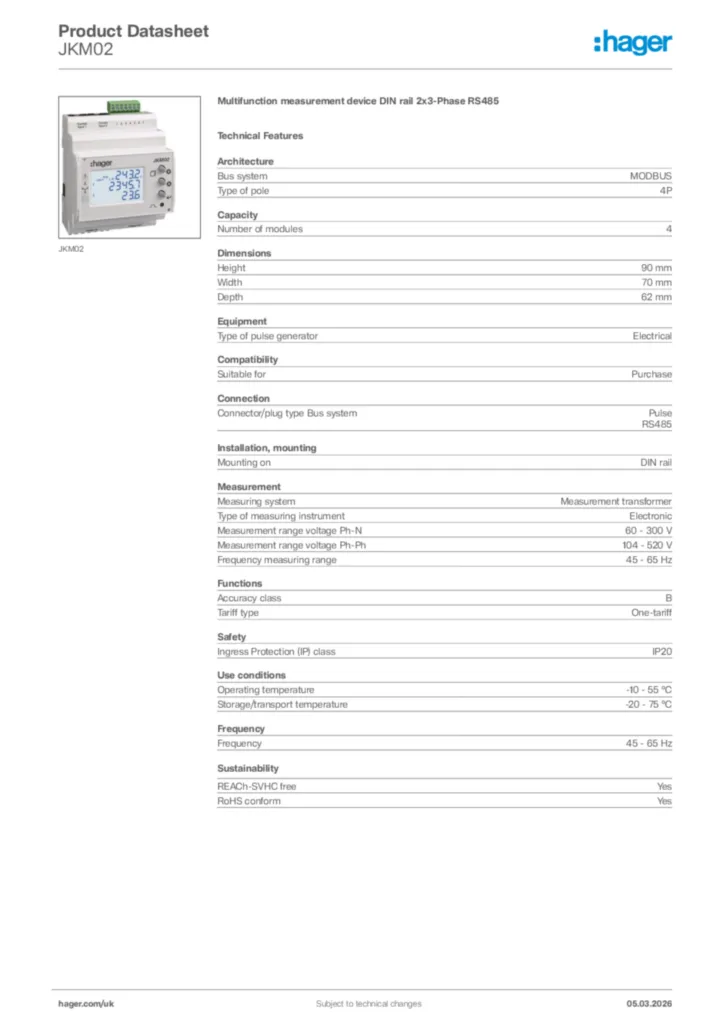

      Image Hager Product data sheet JKM02 | Hager UK

      Hager Product data sheet JKM02

      Multifunction measurement device DIN rail 2x3-Phase RS485

      PDF

    • ProductInstallationManual

      Image Installation manual en-GB 2018-07-30 | Hager UK

      Installation manual en-GB 2018-07-30

      PDF
      9,69 MB

    • ProductAttachment

      Image Product attachment International 2020-01-01 | Hager UK

      Product attachment International 2020-01-01

      XLS
      61,50 kB

    • ProductDataSheet

      Image UK_MD_TDS_JKM02 | Hager UK

      UK_MD_TDS_JKM02

      Product data sheet en-GB 2025-05-19

      PDF
      1,18 MB

    • ProductECDeclaration

      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2021-09-29

      PDF
      276,98 kB
      Image Declaration | Hager UK

      Declaration

      Declaration of conformity International 2021-09-29

      PDF
      269,32 kB
      Image Declaration of conformity International 2023-12-20 | Hager UK

      Declaration of conformity International 2023-12-20

      PDF
      296,11 kB
      Image Declaration of conformity International 2023-12-20 | Hager UK

      Declaration of conformity International 2023-12-20

      PDF
      302,50 kB
      Image Declaration of conformity en-GB 2026-07-22 | Hager UK

      Declaration of conformity en-GB 2026-07-22

      PDF
      473,26 kB
