125A IP65 Metal TPN Board 6 Way With Plain Door JK106BD
EAN-Nr.
5015652251552
Packaging
1 piece
Price
£765.05
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Distributor assembly for device surface mounting 1 products available -
Distributor assembly RCCB 5 products available -
Accessories/spare parts for low-voltage switch technology 1 products available -
Small equipped distribution board 2 products available
Complete your system
-
JK11254D
125A Direct Connect Incomer Kit
£97.37 / piece*
-
JK11004RMD
100A 100mA 4 Pole Time Delay RCCB Kit
£537.63 / piece* -
JK11004RM100A 100mA 4 Pole RCCB Incomer Kit
£332.19 / piece* -
JK11004RLD100A 300mA 4 Pole Time Delay RCCB Kit
£539.84 / piece* -
JK11004RL100A 300mA 4 Pole RCCB Incomer Kit
£328.04 / piece* -
JK11004RH100A 30mA 4 Pole RCCB Incomer Kit
£323.27 / piece*
-
JK01B
Single Pole Busbar Blank
£1.88 / piece*
Technical characteristics
Dimensions
-
Height800 mm
-
Width600 mm
-
Depth300 mm
Safety
-
Ingress Protection (IP) classIP65
-
Protection classIsolation class III
-
Locking typeKey lock, Quarter turn lock
-
Impact resistance IKIK05
Installation, mounting
-
Mounting onSurface mounting
-
Suitable for outdoor usageNo
Materials
-
ColourLight grey
-
RAL code7035
-
MaterialSteel
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Electric current
-
Rated current125 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-

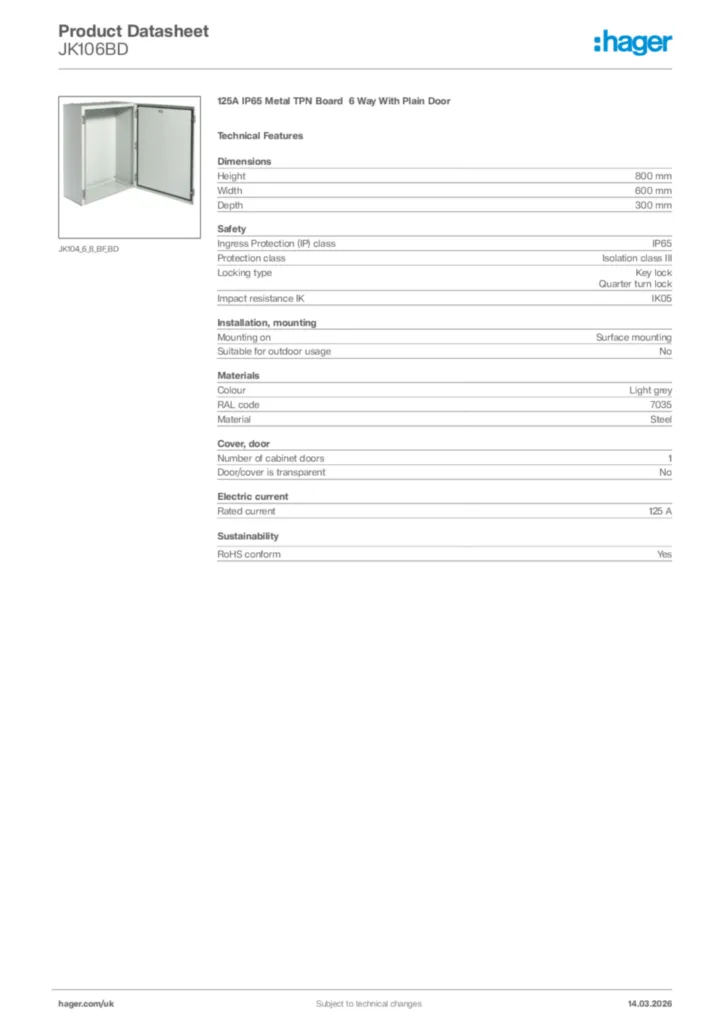

Product datasheet
Hager Product data sheet JK106BD
125A IP65 Metal TPN Board 6 Way With Plain Door
PDF -
Installation manual
UK_HAGER_INS_IPRATINGS.pdf
IP Rating Guidance
PDF356,09 kB -
BIM Revit objects
Range : Type B TP&N Distribution Boards. Switchboard IP65. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,11 MB
Range : Type B TP&N Distribution Boards. Switchboard IP65. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,10 MB
Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,11 MB
Range Typ.B TP&N IP65 Distribution Boards -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,09 MB -
Handbook
JK1**BF/BD
Handbook en-GB 2019-03-18
PDF1,08 MB -
Product data sheet
Product data sheet en-GB 2018-02-05
PDF1,31 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF158,70 kB
Declaration
Declaration of conformity International 2023-03-23
PDF152,88 kB
Declaration of conformity International 2023-12-20
PDF158,18 kB
Declaration of conformity International 2023-12-20
PDF163,96 kB
