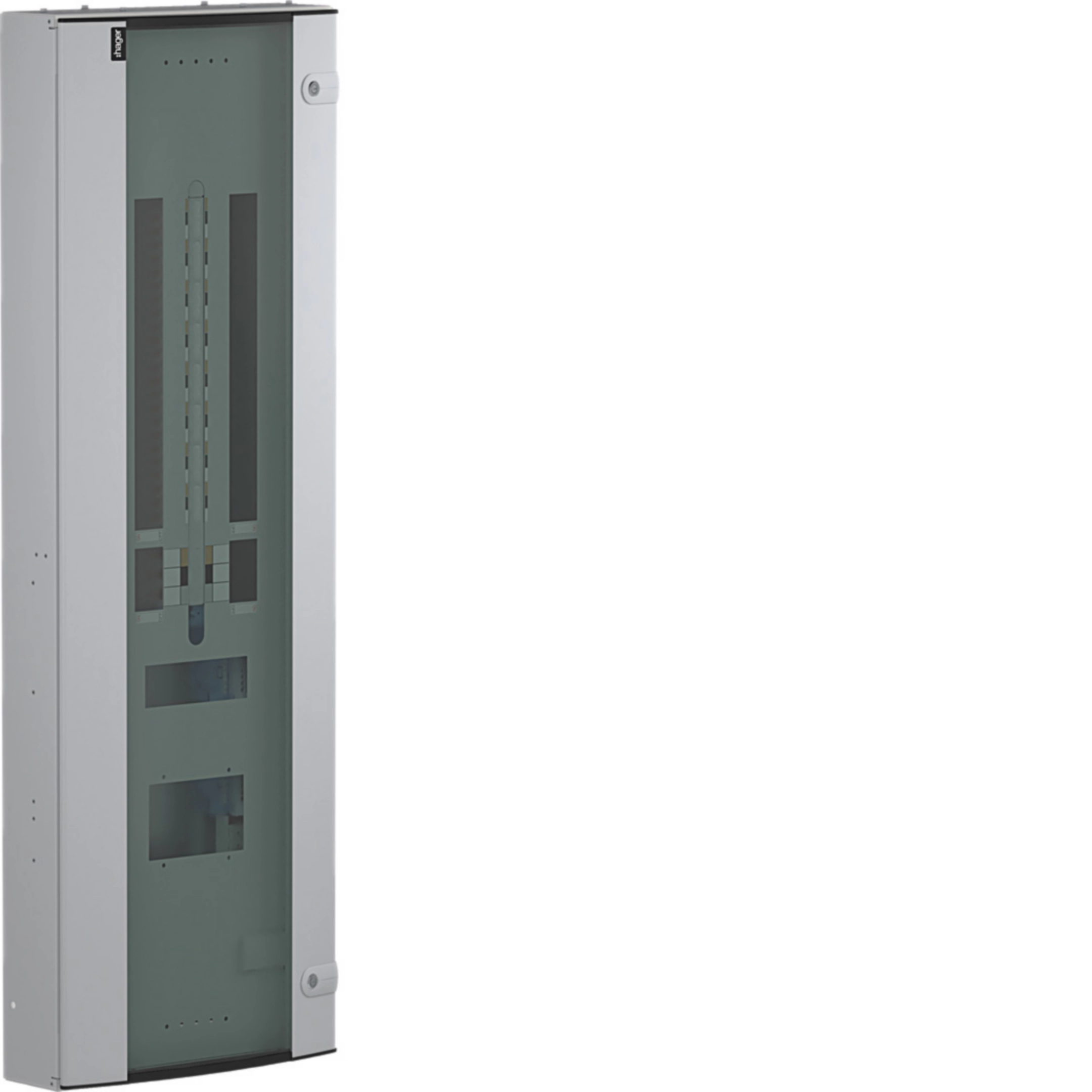

250A 2+16 Way Hybrid TPN Board With Glazed Door JK20216BG
EAN-Nr.
5015652600503
Packaging
1 piece
Price
£791.47
/ piece
*
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Insert for lock system 1 products available -
Small equipped distribution board 9 products available -
Gland plate for enclosure 3 products available -
Distributor assembly with main switch 1 products available -
Transition cover section for installation duct 2 products available -
Cable entry cabinet 6 products available
Complete your system
-
JK222PK
JK1/JK2 Door Lock Kit
£24.66 / piece*
-
JK22504M
250A 4 Pole JK2 MCCB Incomer Kit
£1,113.29 / piece* -
JK22504D250A 4 Pole JK2 Direct Incomer Kit
£85.31 / piece* -
JK22503S250A 3 Pole JK2 Switch Incomer Kit
£557.37 / piece* -
JK22503M250A 3 Pole JK2 MCCB Incomer Kit
£828.51 / piece* -
JK21003S100A 3 Pole JK2 Switch Incomer Kit
£90.83 / piece* -
JK21004S
100A 4 Pole JK2 Switch Incomer Kit
£131.36 / piece* -
JK21254M125A 4 Pole JK2 MCCB Incomer Kit
£584.64 / piece* -
JK21604C160A 4 Pole Contactor Incomer Kit
£2,084.73 / piece* -
JK22504MCS250A 4 Pole JK2 Switch Incomer Kit
£886.69 / piece*
-
JN2PLATE
JN Endplate
£66.36 / piece* -
JK2PLATEMSpare Gland Plate 1.2mm
£59.65 / piece* -
JK2PLATEBSpare Brass gland Plate 2mm
£90.25 / piece*
-
JK21253M
125A 3 Pole JK2 MCCB Incomer Kit
£527.33 / piece*
-
JK06TK
Trunking Kit for TPN 6"
£158.72 / piece* -
JK04TKTrunking Kit for TPN 4"
£111.70 / piece*
-
JN206BE
Large Extension Box, No Door
£379.34 / piece* -
JN205BE
Small Extension Box, No Door
£253.02 / piece* -
JN203BEGLarge DIN Rail Box Glazed
£417.19 / piece* -
JN203BELarge DIN Rail Box Plain
£392.31 / piece* -
JN201BEGSmall DIN Rail Box Glazed
£285.42 / piece* -
JN201BESmall DIN Rail Box Plain
£283.74 / piece*
-
JKLABELPACKSpare Label Pack - All Sizes (One Pack)
£11.87 / piece*
-
JK030BEB
Earth Bar Hi Int, 2 x 15 Connections
£89.96 / piece*
-
JN212BPA
250A 12 Way Pan Assembly
£1,268.43 / piece*
-
JK01DC
JK Door Document Clip (Pack of 10)
£20.41 / piece*
-
JK222AKEYLOCK
£35.81 / piece*
-
JF250NDL250A Neutral Disconnection Link With Shroud 35mm Pitch
£190.70 / piece*
-
JK100HKJK1 Horizontal Mechanical Connecting Kit
£54.41 / piece*
-
JK02B
1.5 Module Busbar Blank pack qty 3
£8.20 / piece* -
JK1/2TOPSHROUDJK Busbar Stack Top Shroud
£24.18 / piece*
Technical characteristics
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current250 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Capacity
-
Number of modules48
Dimensions
-
Height1,400 mm
-
Width465 mm
-
Depth165.50 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentYes
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeKey lock, Quarter turn lock
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

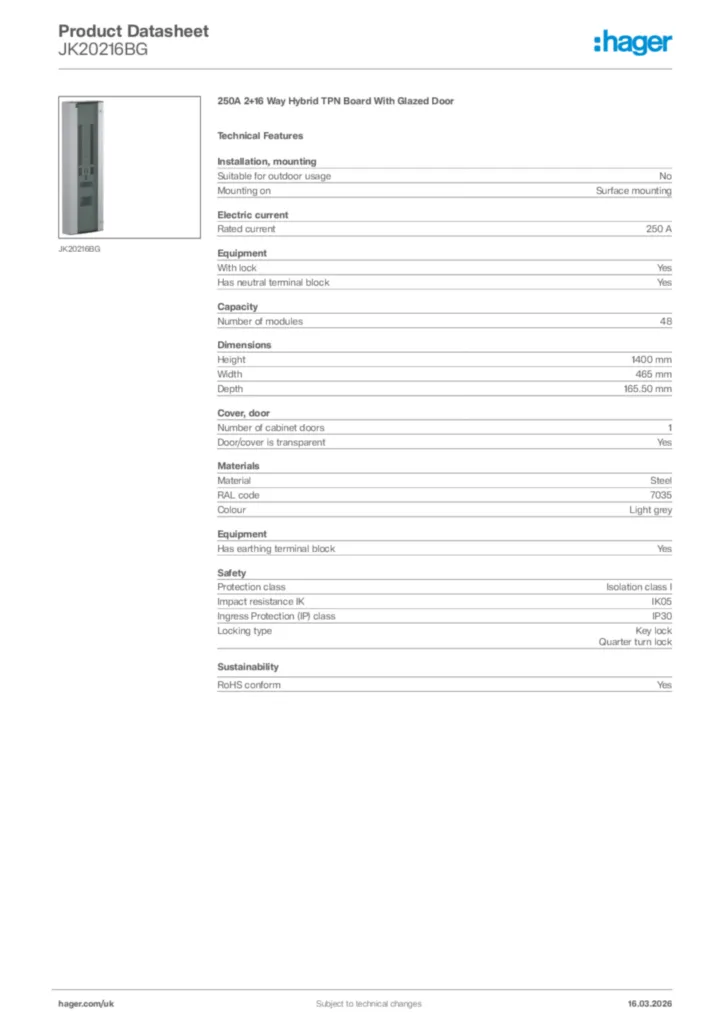

Hager Product data sheet JK20216BG
250A 2+16 Way Hybrid TPN Board With Glazed Door
PDF -
Installation manual
Installation manual en-GB 2018-01-18
PDF1,13 MB -
BIM Revit objects
Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,09 MB
Range : Type B TP&N Distribution Boards. Switchboard IP30. English - Non hosted family - REVIT Family 2020 - V2022
BIM Revit objects en-GB 2024-03-22
RFA1,08 MB
Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,08 MB
Range Typ.B TP&N Hybrid 250A without main device -Revit Family 2020 no hosted-V2021
BIM Revit objects en-GB 2020-01-01
RFA1,07 MB -
Product data sheet
UK_COMMERCIAL_TDS_HYBRIDBOARD.PDF
Product data sheet en-GB 2017-10-05
PDF248,73 kB -
Declaration of conformity
Declaration
Declaration of conformity International 2021-09-29
PDF276,98 kB
Declaration
Declaration of conformity International 2021-09-29
PDF269,32 kB
Declaration
Declaration of conformity International 2021-07-12
PDF180,39 kB
Declaration of conformity International 2023-12-20
PDF302,50 kB
Declaration of conformity International 2023-12-20
PDF296,11 kB
Declaration of conformity International 2023-12-20
PDF278,56 kB
Declaration of conformity International 2023-12-20
PDF288,18 kB
