Hager in the world
Floor standing steel enclosure, Quadro5, 2010x900x260 mm FM309
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 2 products available -
Screw mounting set 1 products available -
Cover strip 2 products available -
Components for wiring, cable entry and cable fixing 5 products available -
Ventilation plate 6 products available -
Cable tree 9 products available
Complete your system
-
KZ075
Connecting cable, 500mm, black, 10mm², with plug, for Distribution bar 250Ae
-
KZ074Connecting cable, 500mm, blue, 10mm², with plug, for Distribution bar 250Ae
-
KZ052Connecting cable, 500mm, black, 6mm², with plug, for Distribution bar 250A
-
KZ051Connecting cable, 500mm, blue, 6mm², with plug, for distribution bar 250A
-
KZ007Crimp connector 4²-10mm², for distribution bar 250A
-
KZ005Connecting cable, 120mm, black, 10mm², with plug, for distribution bar 250A
-
KZ004Connecting cable, 120mm, blue, 10mm², with plug, for distribution bar 250A
-
KZ002Connecting cable, 120mm, black, 6mm², with plug, for distribution bar 250A
-
KZ001Connecting cable, 120mm, blue, 6mm², with plug, for distribution bar 250A
-
UC012HVertical MCCB kit, quadro.system, x160 300x800 mm
-
UC021HVertical MCCB kit, quadro.system, x250 300x600 mm
-
UC014HHorizontal MCCB kit, quadro.system, x160 150x800 mm
-
UC022HVertical MCCB kit, quadro.system, x250 300x800 mm
-
UC024HVertical MCCB kit, quadro.system, x250 400x800 mm
-
UC127HHorizontal MCCB kit, quadro.system, x250/h250 200x600 mm
-
UC128HHorizontal MCCB kit, quadro.system, x250/h250 200x800 mm
-
UC243EM3xMCB 92x92 kit, quadro.system, 800x200 mm
-
UC182XDVertical 1xMCCB kit X160, quadro evo, 800x200 mm
-
UC023HVertical MCCB kit, quadro.system, x250 400x600 mm
-
UC013HHorizontal MCCB kit, quadro.system, x160 150x600 mm
-
UC011HHorizontal MCCB kit, quadro.system, x160 300x600 mm
-
UC015HHorizontal MCCB kit, quadro.system, x160 200x600 mm
-
UC283PWVertical kit 2xMCCB Quadro.system H3+ P250, 598x298 mm, withdrawable
-
UC283PP
Vertical kit 3xMCCB Quadro.system H3+ P250, 798x298 mm, plug-in
-
UC183PPVertical kit 3xMCCB H3+P160, Quadro.system, 798x298 mm, plug-in
-
UC234EM
2x 92x92 hole kit, quadro.sys. 600x200 mm
-
UC233EM3x 92x92 hole kit, quadro.sys. 600x200 mm
-
UC162P
Horizontal kit 1xMCCB H3+ P160, Quadro.system, 598x198 mm
-
UC163P
Vertical kit 2xMCCB H3+ P160, Quadro.system, 598x298 mm
-
UC322HMVertical MCCB interlock kit, quadro.system, x250 300x800 mm
-
UC321HMVertical MCCB interlock kit, quadro.system, x250 300x600 mm
-
UC320HVertical MCCB kit, quadro.system, x250 350x300 mm
-
UC314HHorizontal MCCB kit, quadro.system, x125/160 800x150 mm
-
UC312HVertical MCCB kit, quadro.system, x125/160 800x600 mm
-
UC289Universal bracket, Quadro5, W500 mm
-
A099EPerforated rail DIN, Venezia, 15x2000 mm
-
A099CProfile rail, Venezia, 15x2000 mm
-
A099BPerforated DIN-rail, Venezia, 15x2000 mm
-
A09900
SYMMETRICAL DIN RAIL 15MM 2M
-
UC288Universal bracket, Quadro5, W185 mm
-
UC952Adjustable DIN rail, quadro.system, W750 mm
-
UC249Mounting plain front plate, quadro.system, 800x100 mm
-
UC246Mounting plain front plate, quadro.system, 600x800 mm
-
UC245Mounting plain front plate, quadro.system, 400x800 mm
-
UC244Mounting plain front plate, quadro.system, 300x800 mm
-
UC243Mounting plain front plate, quadro.system, 200x800 mm
-
UC242Mounting plain front plate, quadro.system, 150x800 mm
-
UC241Mounting plain front plate, quadro.system, 50x800 mm
-
UC240Mounting plain front plate, quadro.system, 75x800 mm
-
UC226Mounting plain front plate, quadro.system, 600x350 mm
-
UC225Mounting plain front plate, quadro.system, 400x350 mm
-
UC224Mounting plain front plate, quadro.system, 300x350 mm
-
UC223Mounting plain front plate, quadro.system, 200x350 mm
-
UC222Mounting plain front plate, quadro.system, 150x350 mm
-
UC221Mounting plain front plate, quadro.system, 50x350 mm
-
UC220Mounting plain front plate, quadro.system, 75x350 mm
-
UC247Mounting plain front plate, quadro.system, 800x800 mm
-
UC825Busbars bearing 4P 630-1600A 1 or 2 bars
-
UC824Busbars support 4P 630-1600A 1 or 2 bars
-
UC823Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC822Busbar support, quadro.system, 3P 630-1600A 1 or 2 bars
-
UC830Lateral busbar support, quadro.system, 250 A
-
UC820Busbar flat support, quadro.system, 250-630 A 4P
-
UC817Busbar support, quadro.system, 400-1250 A 2x(3P+N)
-
UC922EPerforated copper rail, quadro.system, M10 60x10 L1750 mm
-
UT87APerforated copper rail, quadro.system, 25x5 L400 mm
-
UT87GPerforated copper rail, quadro.system, 50x5 L700 mm
-
UT87FPerforated copper rail, quadro.system, 50x5 L400 mm
-
UM92VCopper insulated bar, quadro.system, 40x6 L2000 mm
-
UC833Perforated copper rail, quadro.system, M6 20x5 L1750 mm
-
UM92ZE
Copper insulated bar, quadro.system, 24x5 L2000 mm
-
UM92WE
Copper insulated bar, quadro.system, 24x8 L2000 mm
-
UM92VE
Copper insulated bar, quadro.system, 40x8 L2000 mm
-
UC843Perforated copper rail, quadro.system, M6 32x5 L1750 mm
-
UC832Perforated copper rail, quadro.system, M6 20x5 L1000 mm
-
UC844EPerforated copper rail, quadro.system, M10 50x10 L1750 mm
-
UC875Cableset connecting kit, quadro.system, HA250 A
-
UT88BCopper corner connection, quadro.system, 50x5 mm
-
UC966EPerforated copper rail, quadro.system, M10 80x10 L1750 mm
-
UC967EPerforated copper rail, quadro.system, M10 100x10 L1750mm
-
KS72CCopper rail, univers, 12x5x1000mm, with 56 connection screws 5x8mm
-
UM30A1Busbar, universN, 30x5x430mm, for UE31D1
-
UM30A2Busbar, universN, 30x5x880mm, for 2x UE31D1
-
UM30A3Busbar, universN, 30x5x280mm, for UE21D4
-
UC964
Mounting perforated dished plate, quadro.system, 600x500 mm
-
UC962Mounting perforated dished plate, quadro.system, 450x500 mm
-
UC960
Mounting perforated dished plate, quadro.system, 300x500 mm
-
FM492Internal back plate, Quadro5, 150x750 mm
-
FM493Internal back plate, Quadro5, 200x750 mm
-
FM494Internal back plate, Quadro5, 300x750 mm
-
FM495Internal back plate, Quadro5, 450x750 mm
-
FM496Internal back plate, Quadro5, 600x750 mm
Technical properties
Dimensions
-
Height2010 mm
-
Width900 mm
-
Depth260 mm
-
Thickness of sidewall2 mm
Safety
-
Ingress Protection (IP) classIP55
-
Locking typeSpecial tool
-
Impact resistance IKIK10
Equipment
-
Number of section in width3
-
Number of flange plate openings2
-
Number of rows13
Installation, mounting
-
Mounting onPedestal
-
Suitable for outdoor usageNo
Materials
-
ColourPure white
-
RAL code9010
-
TreatmentPowder coated
-
MaterialSteel
Cover, door
-
Door/cover is transparentNo
Electric current
-
Rated current630 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

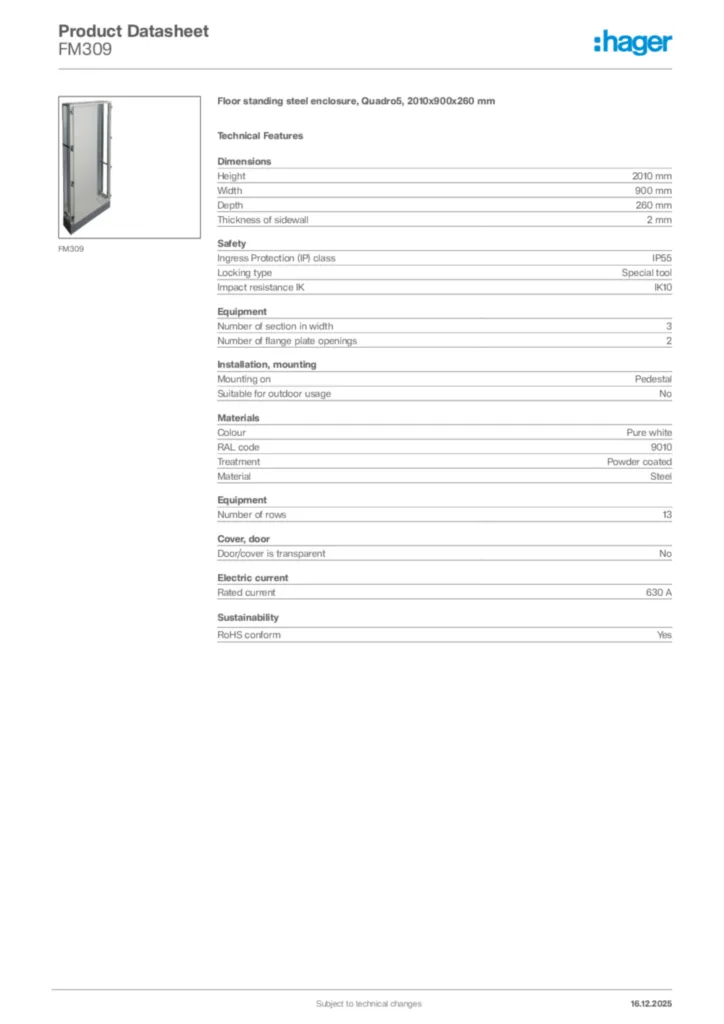

Hager Product data sheet FM309
Floor standing steel enclosure, Quadro5, 2010x900x260 mm
PDF -
Instruction manual
Instruction manual fr-FR, es-ES, pt-PT, el-GR 2023-11-09
PDF5,63 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF284,72 kB
Declaration
Declaration of conformity International 2022-10-25
PDF306,93 kB
Declaration
Declaration of conformity International 2023-03-23
PDF275,65 kB
EU-Konformitätserklärung ZAS132DFM2
Declaration of conformity International 2022-10-25
PDF318,13 kB
More documentation
Discover more of this product range
-
5
-
1
FZ453Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5 -
2
FZ515Key lock insert, Quadro5, 8 mm -
3
FZ508Swing lever, univers, with cylinder Nr.E1242 with 2 keys for encl.IP5-6, sealable -
4
FZ517Key lock insert, Quadro5, 6 mm
-
5
FZ452Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5
