    • UC828
    The Hager quadro.system busbar protection shield (160-630 A) safeguards live busbars against accidental contact and mechanical impact, enhancing operator safety and system reliability. Sized 1000 x 212 mm (approx. 210 mm wide), it fits quadro.system assemblies, ensuring tidy routing and faster, compliant installation and maintenance in distribution boards.
    EAN
    3250616138285
    VPE
    1 piece
    • distri­bu­tion systems for quadro4 and quadro5
    • Distri­bu­tion systems for quadro evo
    • See more

    Protection shield busbar system quadro.system 1000mm W 154mm H 2mm D UC828

    catalog.product_page.add_to_list_button
    catalog.product_page.add_to_list_button

    catalog.lists.product_addition.login_popup.title

    catalog.lists.product_addition.login_popup.descriptive_text

    catalog.lists.product_addition.login_popup.account_creation_button catalog.lists.product_addition.login_popup.login_button

    Protection shield busbar system quadro.system 1000mm W 154mm H 2mm D

    UC828

    • Technical characteristics
    • catalog.pageproduct.title_sustainability.h2
    • Documentations
    • More products

    Technical characteristics

    Dimen­sions
    • Height
      212 mm
    • Width
      210 mm
    • Depth
      1000 mm

    catalog.pageproduct.title_sustainability.h2

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes

    catalog.pageproduct.sustainability_block.downloads_h3

    PEP - quadro 5 1260x900 (English)
    PDF
    16,08 MB
    REACH declaration UC828
    PDF
    RoHS report UC828
    PDF

    Downloads

    • Image UC828 | Hager UK

      Product Image UC828

    • GeneratedProductDatasheet

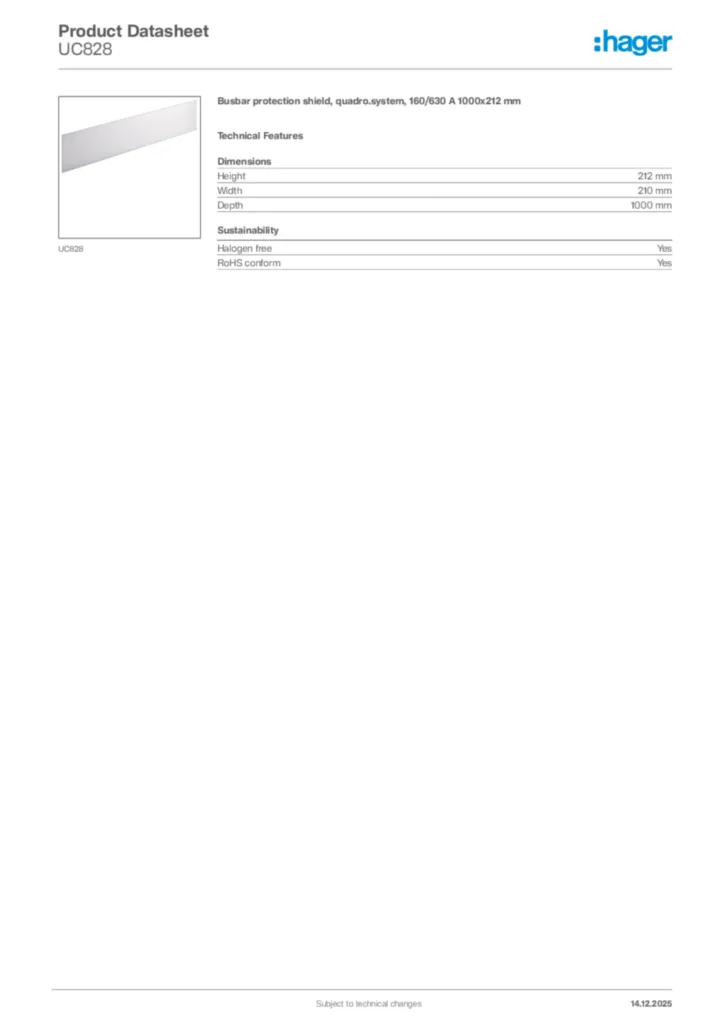

      Image Hager Product data sheet UC828 | Hager UK

      Hager Product data sheet UC828

      Busbar protection shield, quadro.system, 160/630 A 1000x212 mm
