The Hager Quadro5 Plain Door H2010 x W900 x D58 mm provides robust protection for switchgear enclosures. Made of powder-coated steel in RAL 9010 pure white, it offers IP55 ingress protection against dust and water. A lockable, non-transparent single door with 3-side 7 mm locking and one key ensures secure access—ideal for industrial and commercial electrical panels.
EAN
3250612635597
Packaging
1 Piece
Glazed door Quadro5 H1710xW900 IP55 3-side 7mm lock RAL9010 Pure white FM559
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Key for enclosures/cabinets 1 products available -
Insert for lock system 2 products available -
Lock system 2 products available -
Document holder 1 products available
Compatible products
-
Referenced by 2 products available
Complete your system
Technical properties
Dimensions
-
Height2010 mm
-
Width900 mm
-
Depth58 mm
Cover, door
-
Door/cover is transparentNo
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks1
Materials
-
RAL code9010
-
ColourPure white
-
Product colourPure white
-
MaterialSteel
-
TreatmentPowder coated
Safety
-
Ingress Protection (IP) classIP55
-
Locking type3-Side 7 mm
Equipment
-
Number of keys1
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

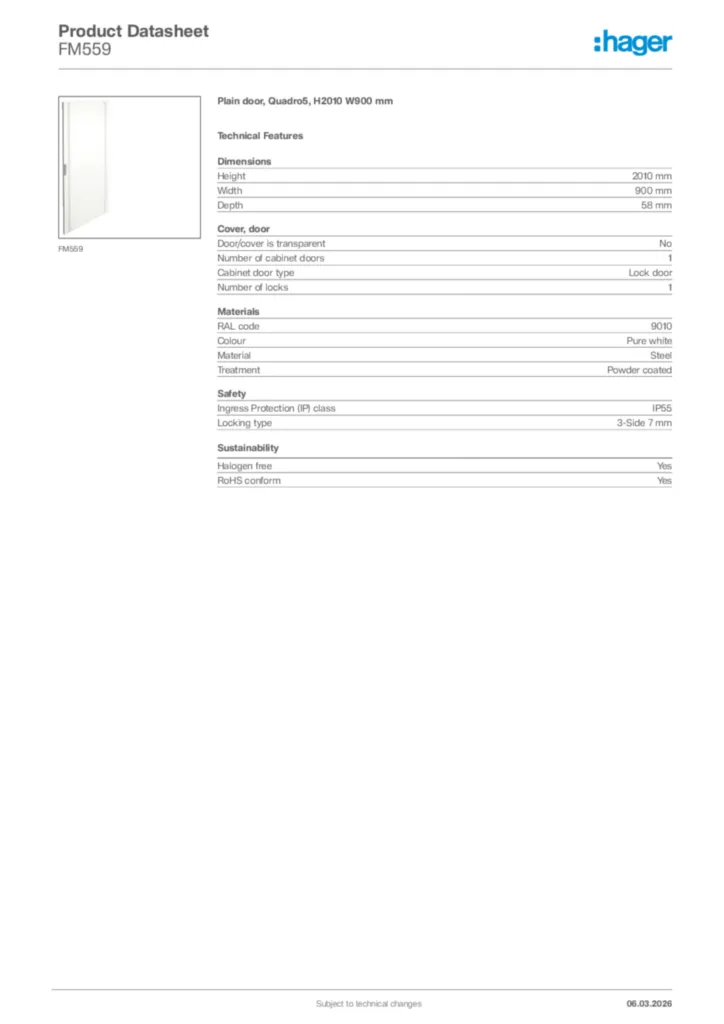

Product datasheet
Hager Product data sheet FM559
Plain door, Quadro5, H2010 W900 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF284,72 kB
Declaration
Declaration of conformity International 2022-10-25
PDF306,93 kB
Declaration
Declaration of conformity International 2023-03-23
PDF275,65 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
EU-Konformitätserklärung ZAS132DFM2
Declaration of conformity International 2022-10-25
PDF318,13 kB
More documentation
Discover more of this product range
-
5
-
1
FZ794Document holder, transparent, DIN A4, adhesive
-
2
FZ453Lock, cylinder Nr.455, with 2 keys, for enclosure univers IP43 and Quadro 4-5 -
3
FZ452Lock, cylinder Nr.405, with 2 keys, for enclosure univers IP43 and Quadro4-5 -
4
FZ508Swing lever, univers, with cylinder Nr.E1242 with 2 keys for encl.IP5-6, sealable
-
5
FL252ZHeaters, quadro.system, 15 W 230 V AC/DC
