The Hager quadro.system Copper Insulated Bar 20x2 L2000 mm is a laminated busbar for safe, compact power distribution in switchboards. Rated 160 A, it suits residential to commercial panels. Its 20 mm x 2 mm profile and 2 m length offer flexible routing, with 8 sections for multiple outgoing ways. High‑conductivity copper and full insulation enhance efficiency and touch safety, simplifying assembly and saving space.
EAN
3250616230705
Packaging
4
Insulated copper busbar 250A 20x3mm L2000 quadro.system laminated 8-section UM92X
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current IN160 A
Dimensions
-
Width/thickness busbar2 - 2 mm
-
Height busbar20 mm
-
Busbar length2000 mm
Equipment
-
Number of section in width8
-
Type of busbarLaminated
Materials
-
MaterialCopper
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

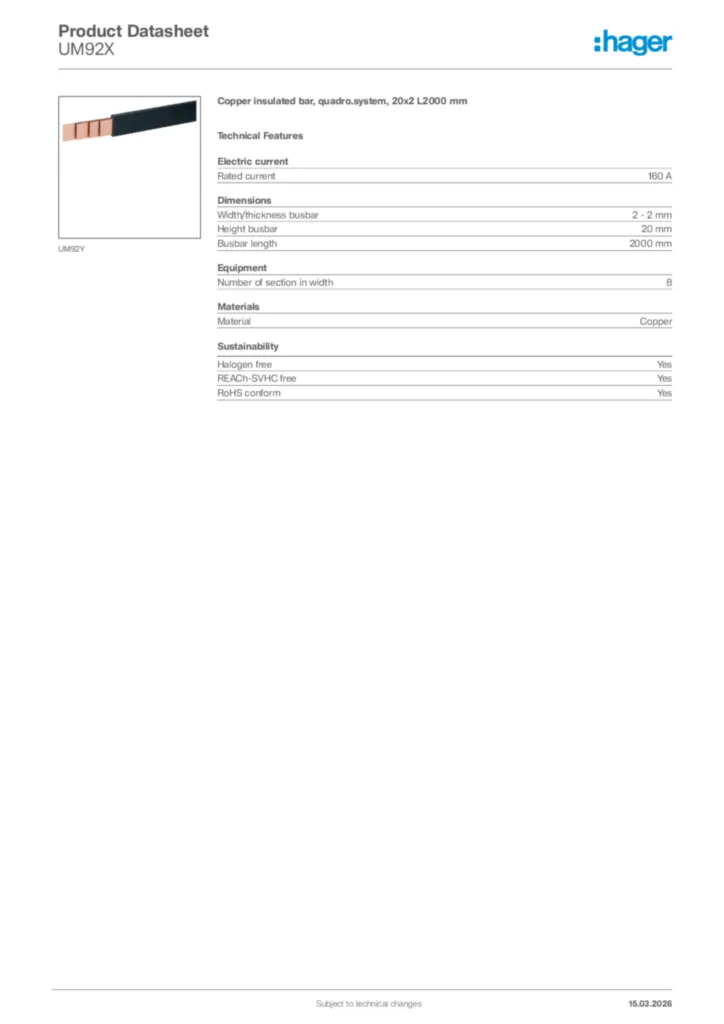

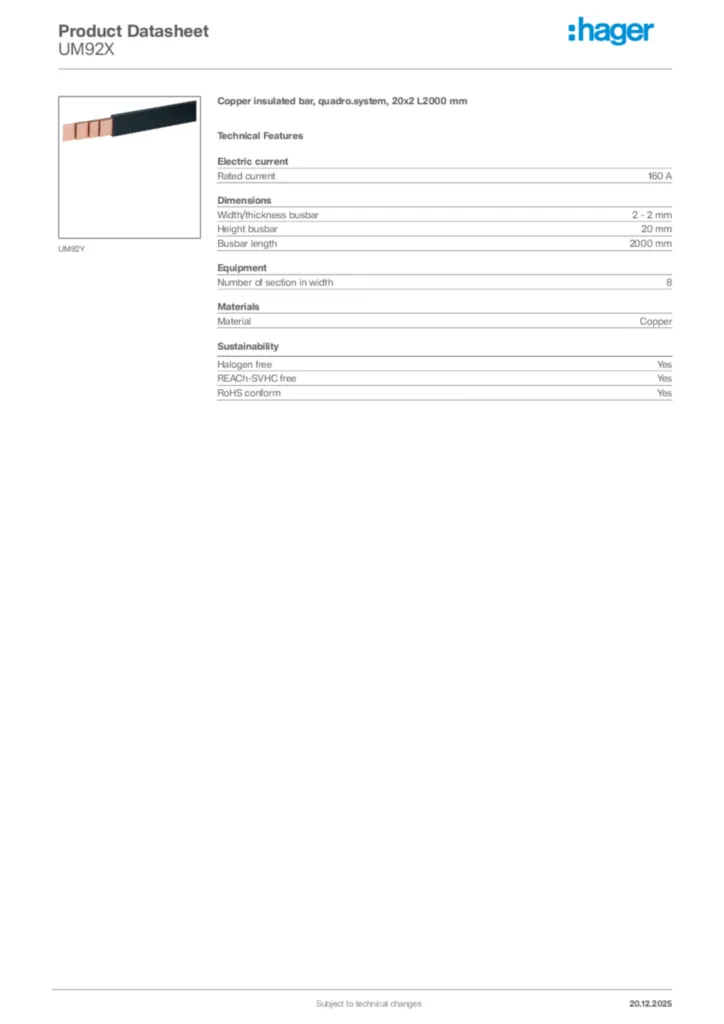

Product datasheet
Hager Product data sheet UM92X
Copper insulated bar, quadro.system, 20x2 L2000 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-04-25
PDF387,46 kB
Declaration
Declaration of conformity International 2023-04-25
PDF395,23 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-02
PDF506,23 kB
Declaration of conformity en-GB 2026-04-02
PDF503,38 kB
Declaration of conformity en-GB 2026-07-22
PDF651,83 kB
