The Hager quadro.system Copper Insulated Bar 20x3 L2000 mm is a laminated busbar for safe, efficient power distribution up to 250 A. Its 20 x 3 mm profile and 2 m length suit panelboards and switchboards, with 8-section width supporting multiple outgoing devices. Copper construction ensures high conductivity; insulation enhances safety; laminated design reduces losses and heating for reliable, space‑efficient installations.
EAN
3250616230712
VPE
4 pieces
Copper insulated laminated busbar 400A 32x4 L2000 quadro.system 8-way UM92Y
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Electric current
-
Rated current IN250 A
Dimensions
-
Width/thickness busbar3 - 3 mm
-
Height busbar20 mm
-
Busbar length2000 mm
Equipment
-
Number of section in width8
-
Type of busbarLaminated
Materials
-
MaterialCopper
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

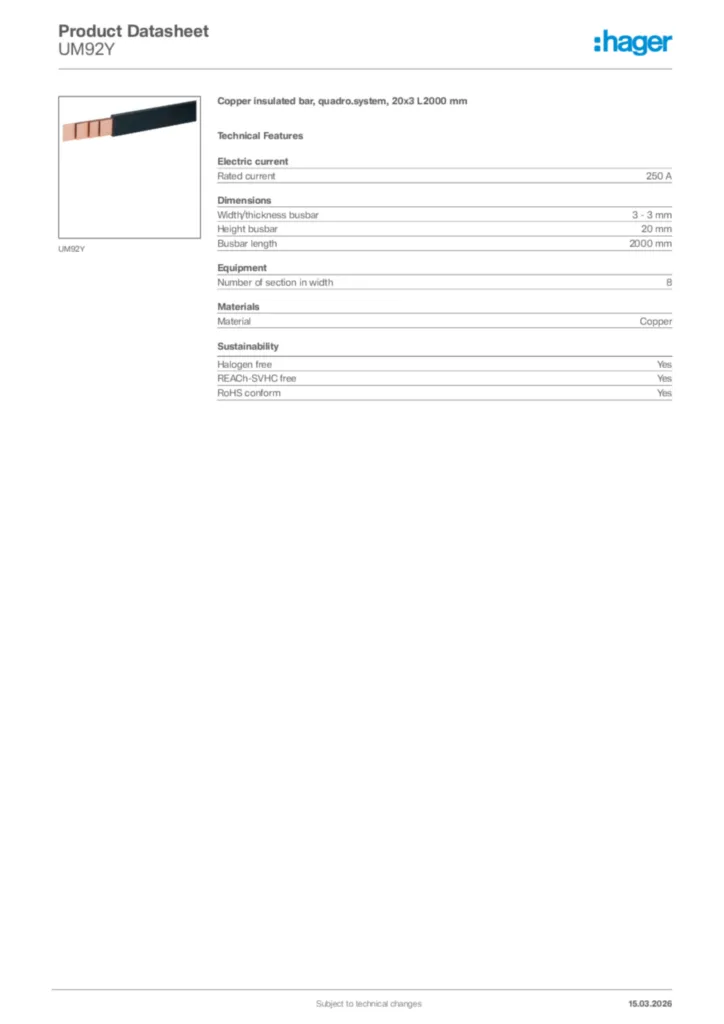

Hager Product data sheet UM92Y
Copper insulated bar, quadro.system, 20x3 L2000 mm
