The Hager quadro.system copper insulated laminated busbar 40x6, 2000 mm delivers up to 800 A for safe, low-loss power distribution in panelboards and switchboards. Its 8-section width boosts connection capacity, while the slim 40x6 profile saves space. Durable copper ensures excellent conductivity and thermal performance, enabling reliable, modular installations and straightforward integration.
EAN
3250616231078
VPE
4 pieces
Flat perforated copper busbar M6 20x5 L1750 250A quadro.system UM92V
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Electric current
-
Rated current IN800 A
Dimensions
-
Width/thickness busbar6 - 6 mm
-
Height busbar40 mm
-
Busbar length2000 mm
Equipment
-
Number of section in width8
-
Type of busbarLaminated
Materials
-
MaterialCopper
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

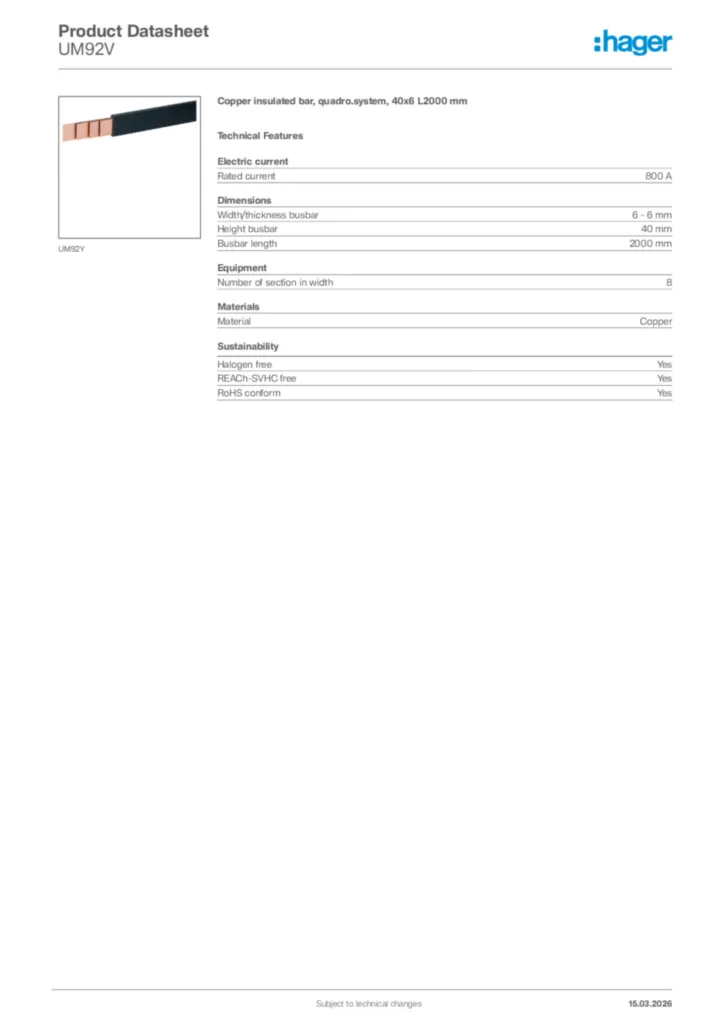

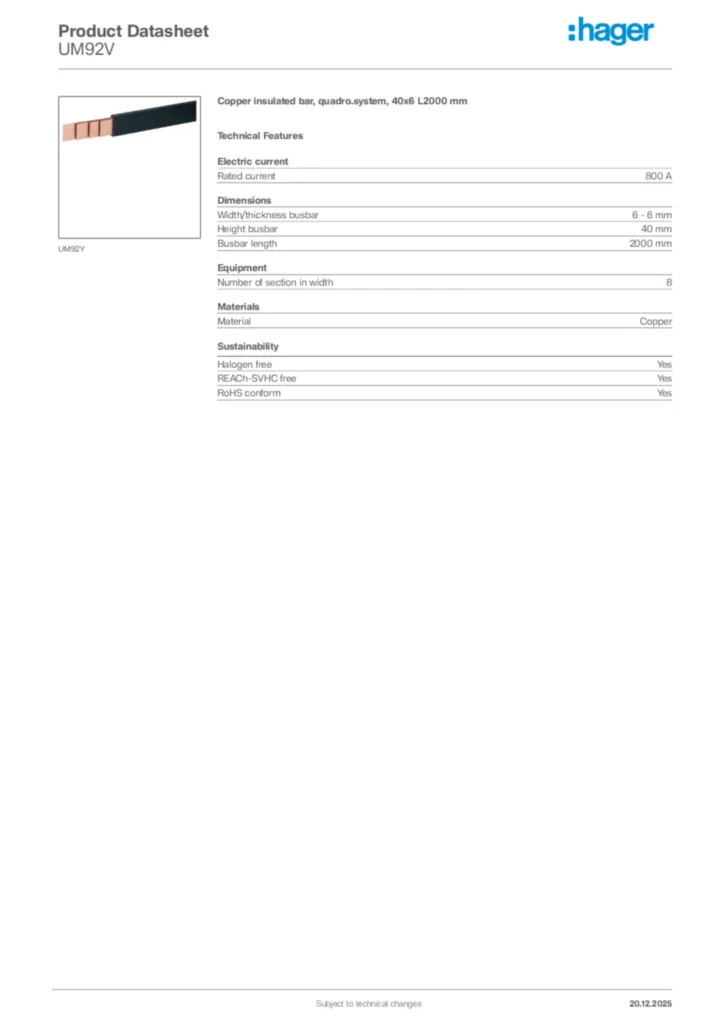

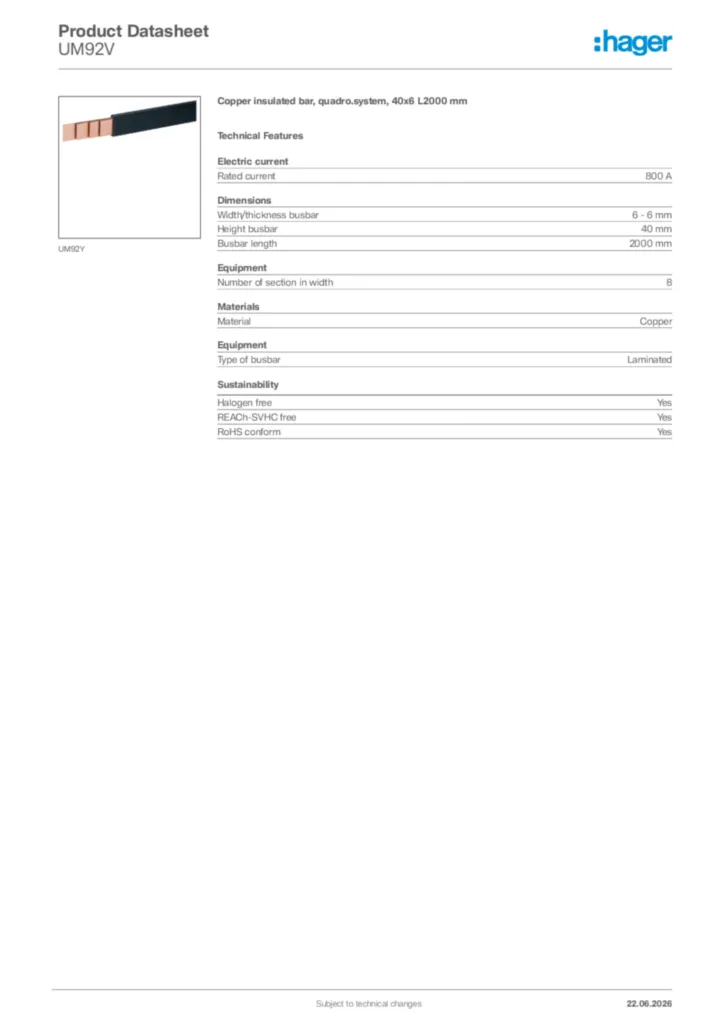

Hager Product data sheet UM92V
Copper insulated bar, quadro.system, 40x6 L2000 mm
PDF -
ProductECDeclaration
Declaration
Declaration of conformity International 2023-04-25
PDF387,46 kB
Declaration
Declaration of conformity International 2023-04-25
PDF395,23 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-02
PDF506,23 kB
Declaration of conformity en-GB 2026-04-02
PDF503,38 kB
Declaration of conformity en-GB 2026-07-22
PDF651,83 kB
More documentation
