The Hager quadro.system Earth cross rail 12x5 L250 mm ensures reliable grounding and equipotential bonding in distribution boards. Rated at 160 A, its solid copper 12×5 mm busbar delivers low-resistance earth continuity. With a 250 mm length and compact 12 mm height/5 mm depth, it integrates neatly into quadro.system panels, streamlining tidy, safe earth connections and optimizing space. Suitable for residential and commercial boards.
EAN
3250616139718
Packaging
1 Piece
RCD add-on 4P 630A Type A HI adjustable 0.1-10A P630 UC971
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Electric current
-
Rated current IN160 A
Dimensions
-
Height12 mm
-
Height busbar5 mm
-
Width245 mm
-
Width/thickness busbar12 - 12 mm
-
Depth5 mm
-
Length250 mm
Materials
-
MaterialCopper
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

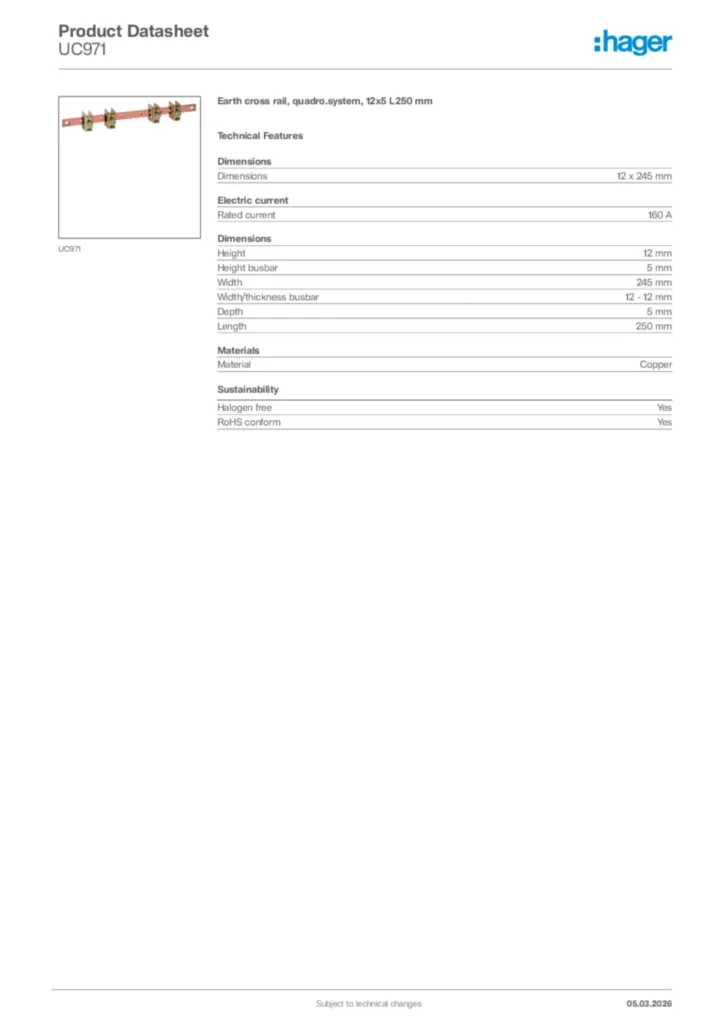

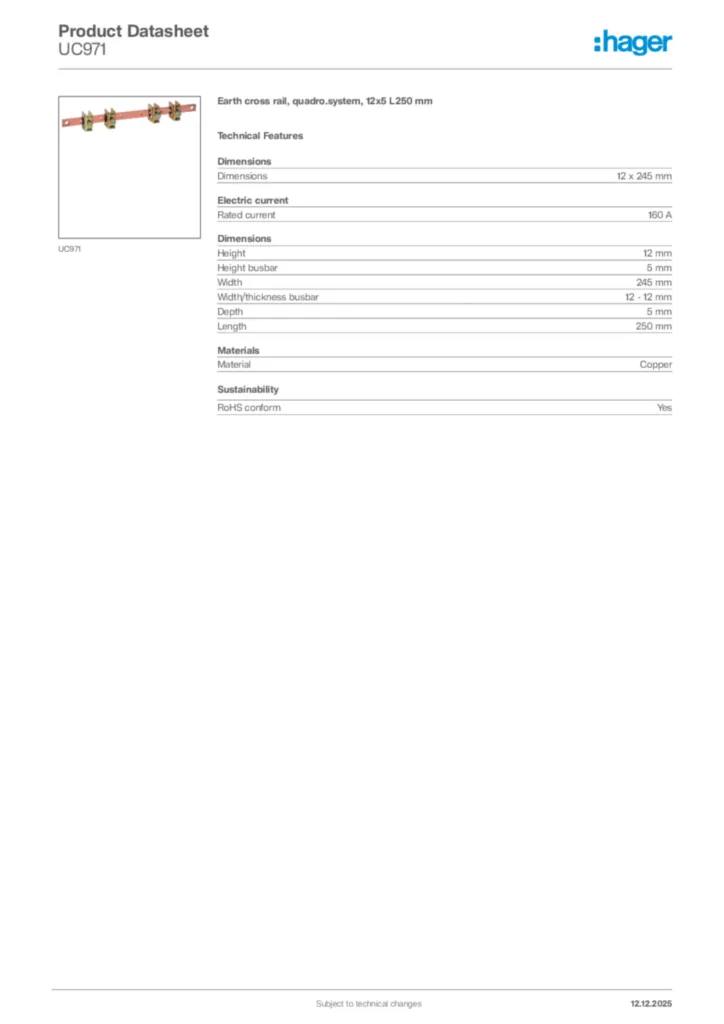

Product datasheet
Hager Product data sheet UC971
Earth cross rail, quadro.system, 12x5 L250 mm
PDF -
Declaration of conformity
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
Declaration of conformity en-GB 2026-04-02
PDF506,23 kB
Declaration of conformity en-GB 2026-04-02
PDF503,38 kB
