The Hager quadro.system Vertical MCCB kit x250 300x800 mm enables secure vertical mounting of MCCBs in distribution boards. Measuring 300x800x200 mm with 3 units and 12 x 75 mm step positions, it offers flexible device layout and tidy cabling. Class I insulation boosts safety, while the pure white RAL 9010 finish ensures aesthetic integration. Ideal for organized, modular power distribution in panel assemblies.
EAN
3250616133228
Packaging
1 Piece
Vertical MCCB kit quadro.system X250 300x600 Pure white RAL9010, 2 units UC022H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Hinge for distribution systems 1 products available
Compatible products
-
Referenced by 6 products available
Referenced by
-
FM309Floor standing steel enclosure, Quadro5, 2010x900x260 mm
-
FM308Floor standing steel enclosure, Quadro5, 1860x900x260 mm
-
FM307Floor standing steel enclosure, Quadro5, 1710x900x260 mm
-
FM317Floor standing steel enclosure, Quadro5, 1710x900x400 mm
-
FM318Floor standing steel enclosure, Quadro5, 1860x900x400 mm
-
FM319Floor standing steel enclosure, Quadro5, 2010x900x400 mm
Technical properties
Dimensions
-
Height300 mm
-
Width800 mm
-
Depth200 mm
-
Number of units3
Safety
-
Protection classIsolation class I
Materials
-
RAL code9010
-
Product colourPure white
Internal use only
-
Number of 75 mm steps in height per distribution panel12
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

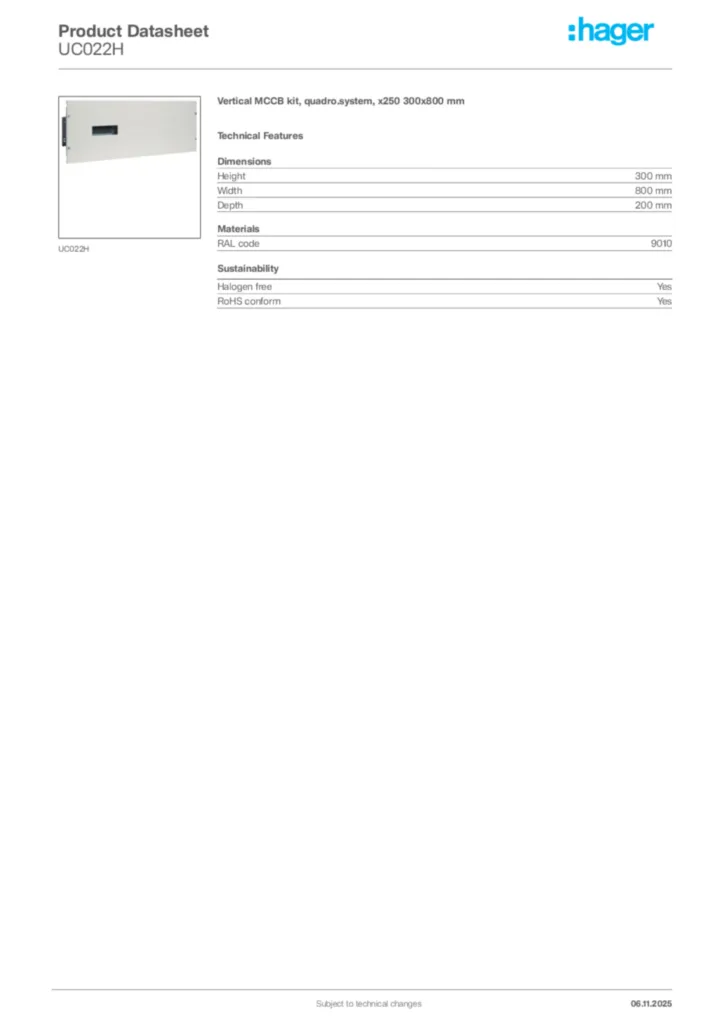

Product datasheet

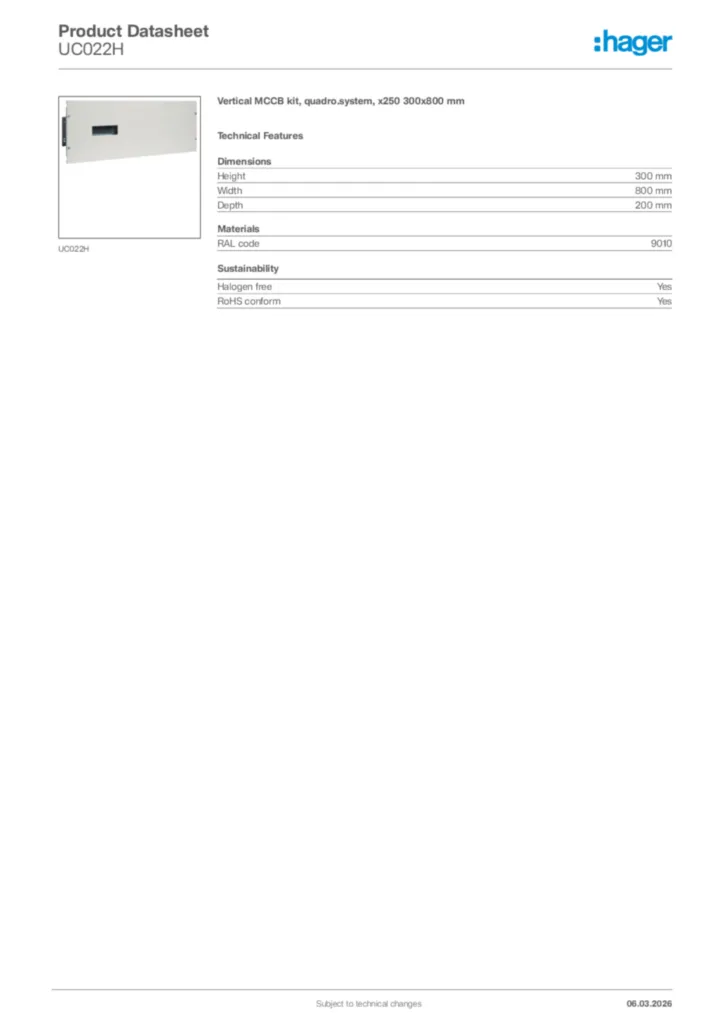

Hager Product data sheet UC022H
Vertical MCCB kit, quadro.system, x250 300x800 mm
