The Hager quadro.system protection shield for busbar systems (W1000 mm) provides secure touch protection and segregation of live parts in switchboards. At 154 mm high and only 2 mm deep, it integrates neatly into panel assemblies without wasting space. Ideal for modular and distribution boards, it enhances operator safety, supports compliant installations, and keeps layouts tidy for efficient maintenance and upgrades.
EAN
3250616138346
Packaging
1 Piece
Cableset Connecting Kit for quadro.system HA 125/160 A, 575x40 mm UC834
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height154 mm
-
Width1000 mm
-
Depth2 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

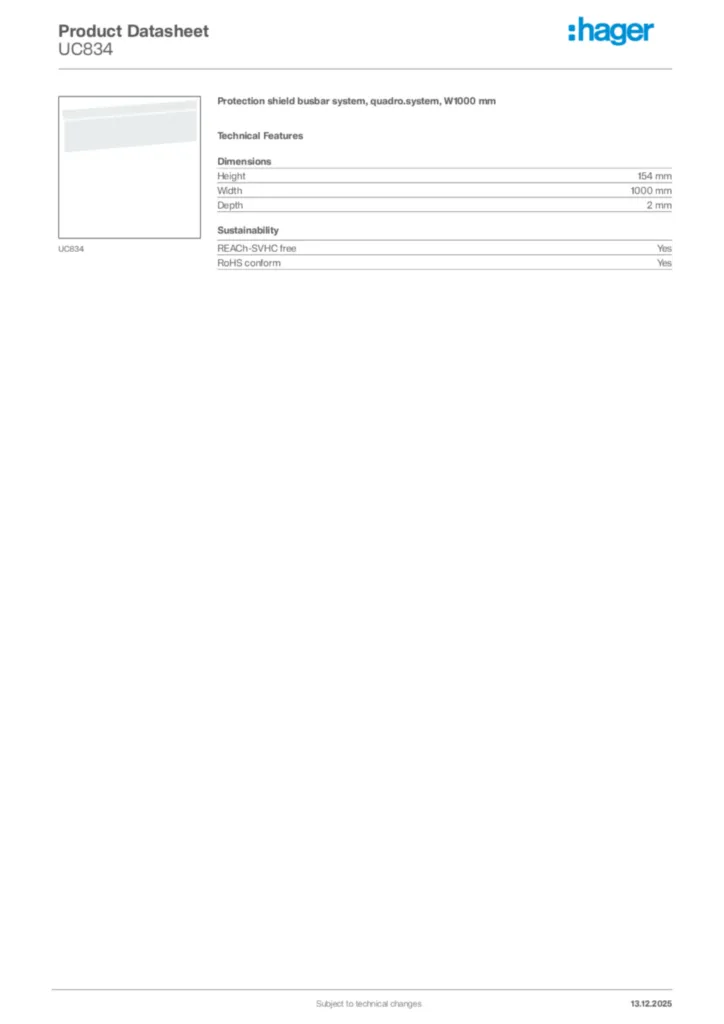

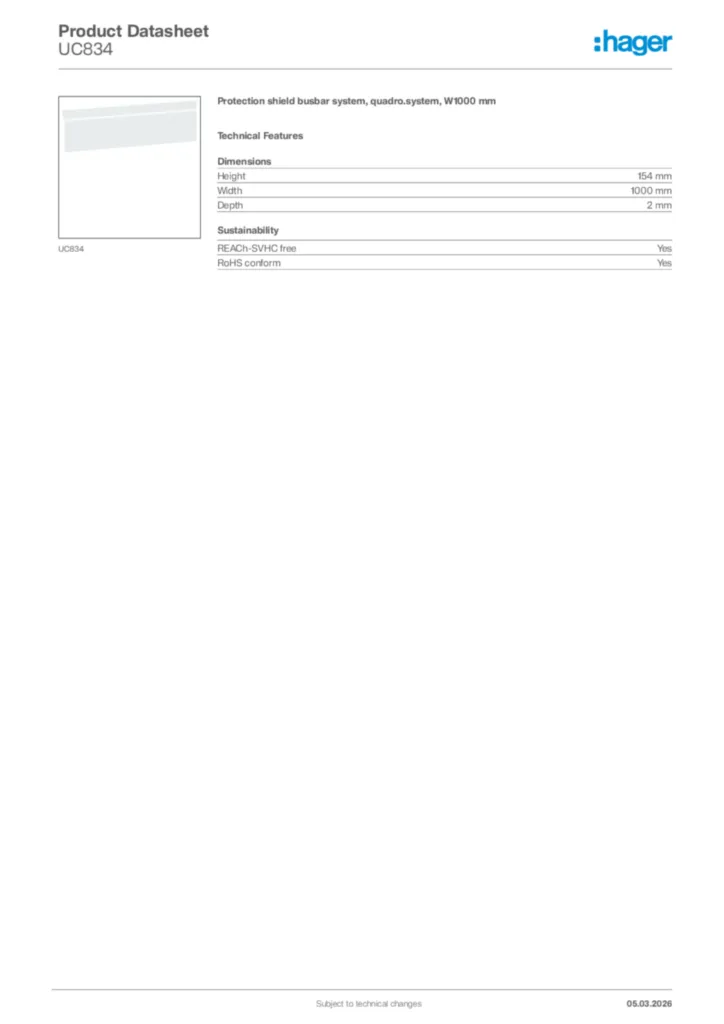

Hager Product data sheet UC834
Protection shield busbar system, quadro.system, W1000 mm
