    The Hager Quadro5 Internal Back Plate 150x500 mm provides a robust mounting surface inside Quadro5 enclosures. Made of powder-coated steel in light grey, it resists corrosion and ensures rigidity. Sized H150 x W500 x D122 mm, it fits as a rear panel (not for side use), enabling secure equipment and cable mounting while keeping layouts neat and compliant. Ideal for reliable panel assembly and upgrades.
    EAN
    3250612634828
    Packaging
    1 Piece
    • quadro5 monobloc enclos­ures and cabinets

    Busbar support quadro.system 400-1250A 2x(3P+N) 345x40x20 mm FM482

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Busbar support quadro.system 400-1250A 2x(3P+N) 345x40x20 mm

    FM482

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Dimen­sions
    • Height
      150 mm
    • Width
      500 mm
    • Depth
      122 mm
    Mater­ials
    • Colour
      Light grey
    • Material
      Steel
    • Treat­ment
      Powder coated
    Instruc­tions
    • Suit­able as rear panel
      Yes
    • Suit­able as side panel
      No

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    PEP - quadro 5 1260x900 (English)
    PDF
    16,08 MB
    REACH declaration FM482
    PDF
    RoHS report FM482
    PDF

    Downloads

    • Image FM482 | Hager Africa

      Product Image FM482

    • Product datasheet

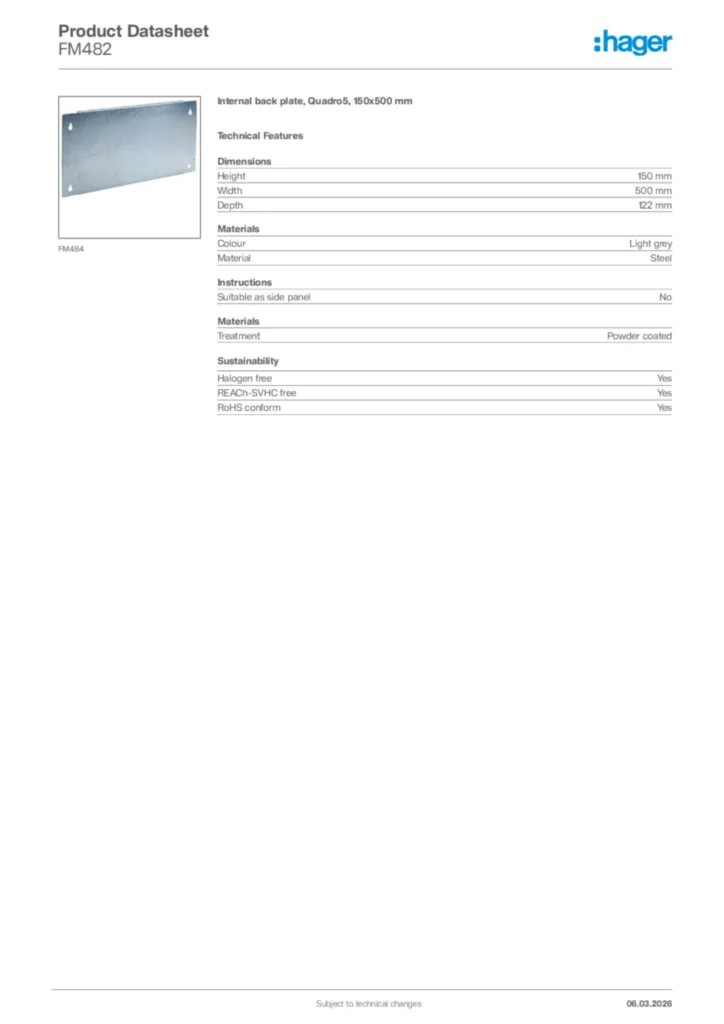

      Image Hager Product data sheet FM482 | Hager Africa
