Glazed door, Quadro5, H2010 W900 mm FM569
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Key for enclosures/cabinets 1 products available -
Insert for lock system 2 products available -
Lock system 2 products available
Compatible products
-
Referenced by 2 products available
Technical properties
Dimensions
-
Height2010 mm
-
Width900 mm
-
Depth54 mm
Cover, door
-
Door/cover is transparentYes
-
Number of cabinet doors1
-
Cabinet door typeLock door
-
Number of locks1
Materials
-
RAL code9010
-
ColourPure white
-
TreatmentPowder coated
Safety
-
Ingress Protection (IP) classIP55
-
Locking type3-Side 7 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

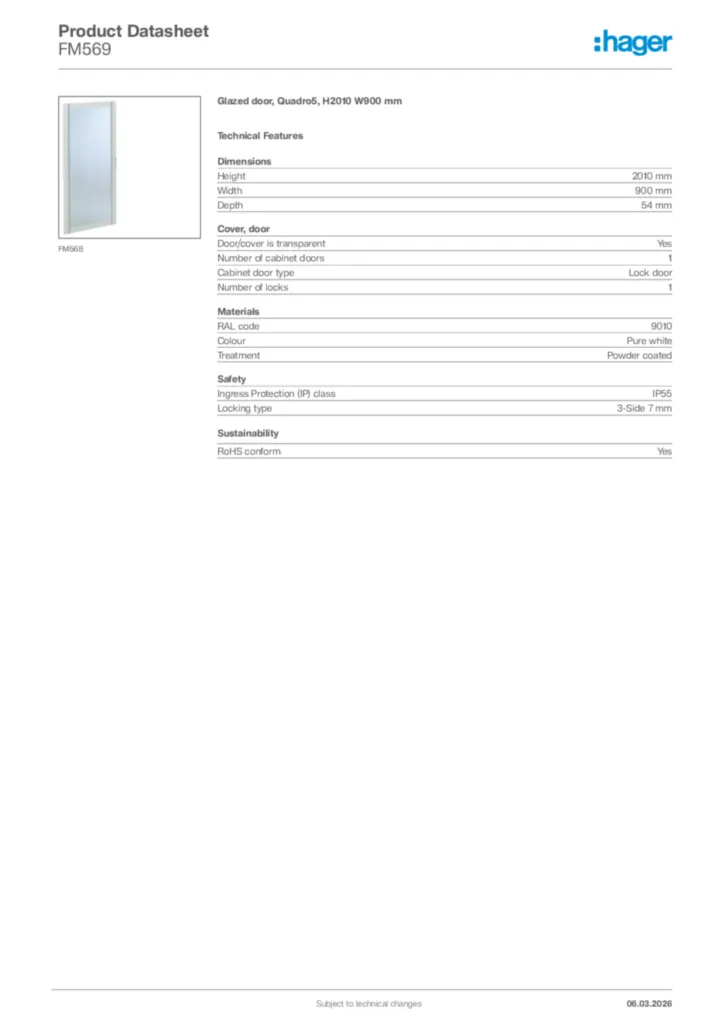

Hager Product data sheet FM569
Glazed door, Quadro5, H2010 W900 mm
PDF -
Declaration of conformity
Declaration
Declaration of conformity International 2023-03-23
PDF284,72 kB
Declaration
Declaration of conformity International 2022-10-25
PDF306,93 kB
Declaration
Declaration of conformity International 2023-03-23
PDF275,65 kB
EU-Konformitätserklärung ZAS132DFM2
Declaration of conformity International 2022-10-25
PDF318,13 kB
