The Hager quadro.system insulated copper laminated busbar 32×6, 2 m, rated 630 A, ensures safe, low-loss power distribution in switchboards. Its compact 32 mm height and 6 mm thickness save panel space, while the laminated design improves thermal performance. With 8 sections in width, it streamlines modular assembly and reliable connections for residential, commercial, and industrial panels.
EAN
3250616231061
VPE
4 pieces
Insulated copper busbar 160A 20x2mm L2000 quadro.system 8-section UM92W
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
Technical characteristics
Electric current
-
Rated current IN630 A
Dimensions
-
Width/thickness busbar6 - 6 mm
-
Height busbar32 mm
-
Busbar length2000 mm
Equipment
-
Number of section in width8
-
Type of busbarLaminated
Materials
-
MaterialCopper
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
catalog.pageproduct.sustainability_block.downloads_h3
Downloads
-
GeneratedProductDatasheet

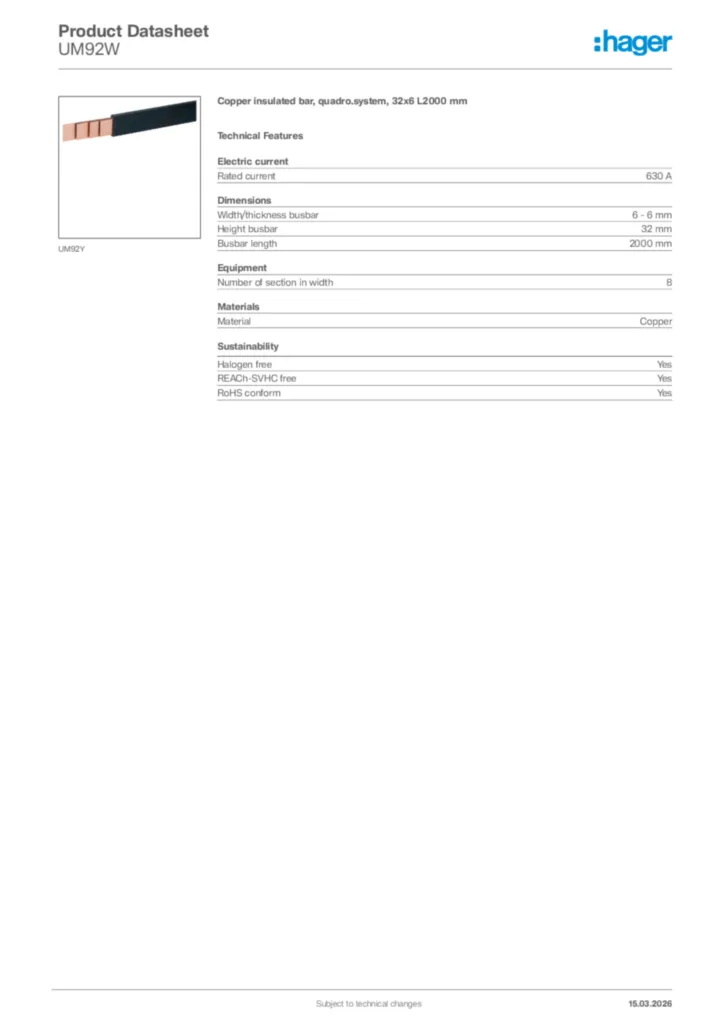

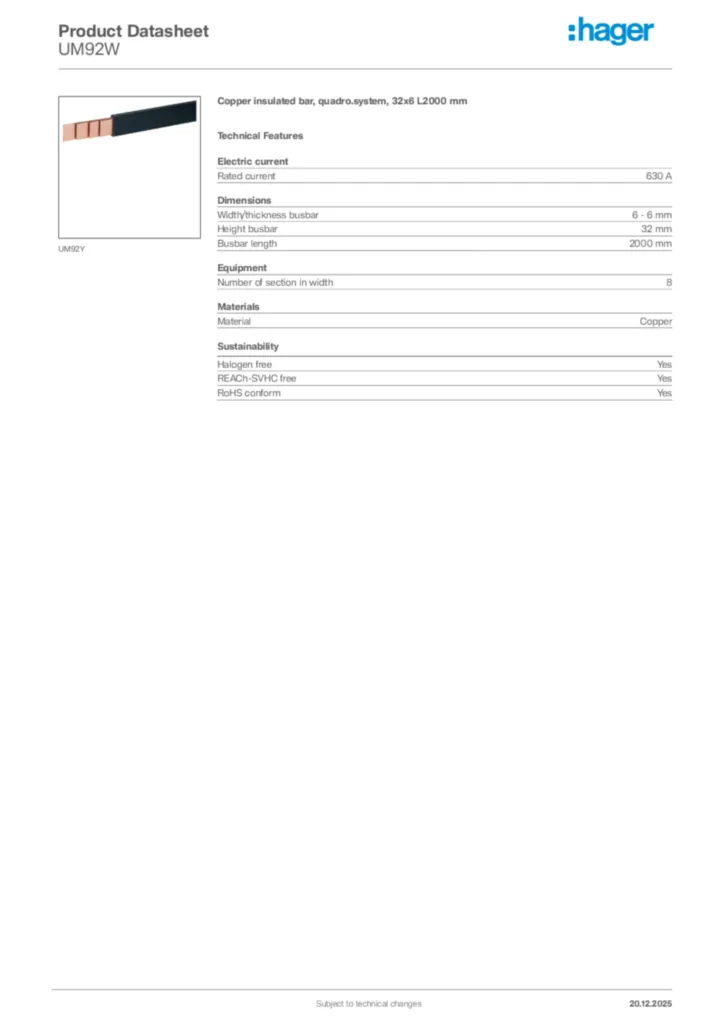

Hager Product data sheet UM92W
Copper insulated bar, quadro.system, 32x6 L2000 mm
PDF -
ProductECDeclaration
Declaration
Declaration of conformity International 2023-04-25
PDF387,46 kB
Declaration
Declaration of conformity International 2023-04-25
PDF395,23 kB
Declaration of conformity en-GB 2026-04-01
PDF538,80 kB
Declaration of conformity en-GB 2026-04-01
PDF539,93 kB
Declaration of conformity en-GB 2026-04-02
PDF506,23 kB
Declaration of conformity en-GB 2026-04-02
PDF503,38 kB
Declaration of conformity en-GB 2026-07-22
PDF651,83 kB
