Horizontal MCCB kit, quadro.system, x160 150x800 mm UC014H
EAN
3250616133198
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Hinge for distribution systems 1 products available
Compatible products
-
Referenced by 6 products available
Referenced by
-
FM309Floor standing steel enclosure, Quadro5, 2010x900x260 mm
-
FM308Floor standing steel enclosure, Quadro5, 1860x900x260 mm
-
FM307Floor standing steel enclosure, Quadro5, 1710x900x260 mm
-
FM317Floor standing steel enclosure, Quadro5, 1710x900x400 mm
-
FM318Floor standing steel enclosure, Quadro5, 1860x900x400 mm
-
FM319Floor standing steel enclosure, Quadro5, 2010x900x400 mm
Technical properties
Dimensions
-
Height150 mm
-
Width800 mm
-
Depth100 mm
Materials
-
RAL code9010
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

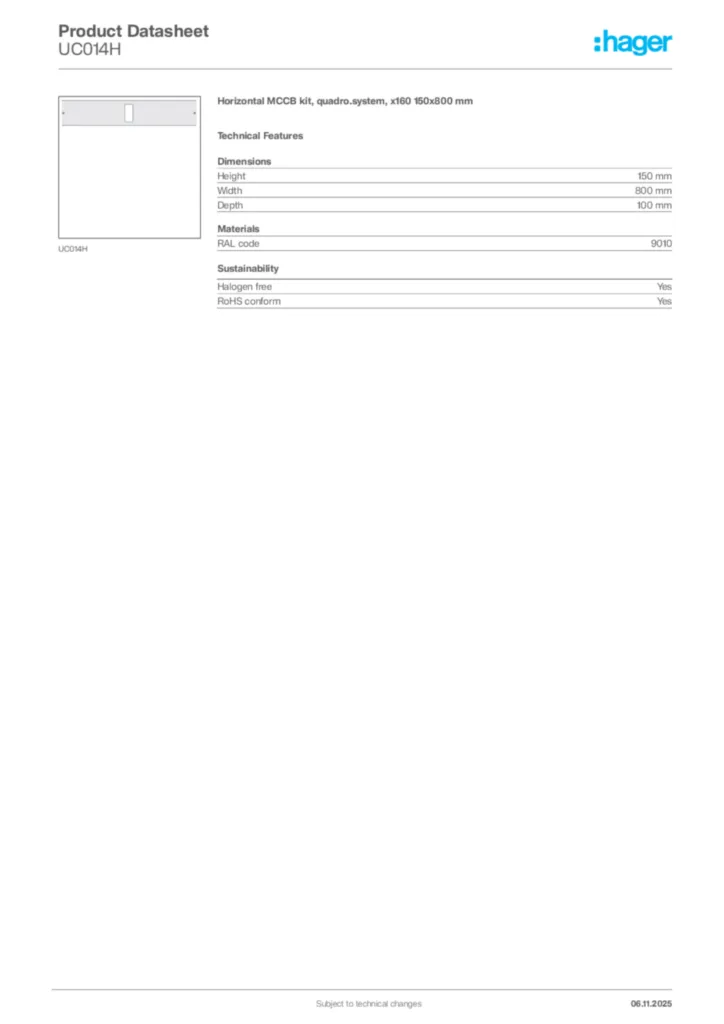

Product datasheet
