Flying Start

Using the building automation system, Hager’s electrical solution combines the building’s intruder alarm system with shutters that secure all of the windows and doors.


Flying Start | Hager Building Automation

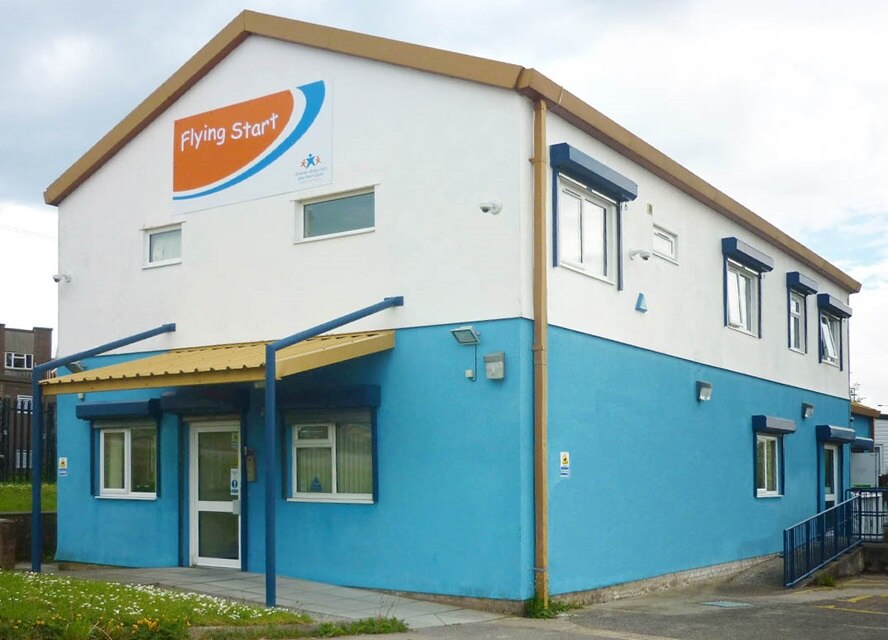

Vale of Glamorgan county council is using Hager’s building automation system to provide an intelligent security solution for its Flying Start family centre in Barry.

The social services’ building is in the middle of a housing estate and provides support for local families and their children.

Using the building automation system, Hager’s solution combines the building’s intruder alarm system with shutters that secure all of the windows and doors.

Staff in the reception area can operate certain groups of shutters, while shutters in individual rooms can be opened and closed using local switches. Any shutters that are left open at the end of the day will be closed when the intruder alarm is set.

Deactivating the intruder alarm will also raise the security shutters over the main entrance to allow entry and also all of the shutters over emergency exits for safety.

Hager’s building automation system communicates with other manufacturer’s KNX products via a single twisted pair cable, radio frequency, a power line or via IP/Ethernet. The system avoids the multiple cabling that would be needed from alternative systems and is easily changed without the need for new cabling.

Hager has also supplied all of the electrical distribution boards for the building and the lighting installation and control using its klik 7 pin.

The lighting control design maximises energy savings from the centre. In areas where there is natural light available, the klik 7 pin occupancy sensors have an integral photocell so that the lights can dim up and down in response to both presence detection and also any natural light that is available from windows. In rooms without natural light the luminaires will switch on and off in response to simple occupancy sensors.

While klik 7 pin can be incorporated into a KNX system, using a KNX version of its occupancy sensor for added control, in this instance it has been used as a standalone system.
